51 47 151 Removing and installing/replacing left luggage compartment wheel arch trim

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

Necessary preliminary tasks:

Remove luggage compartment floor trim panel . See 51 47 131 Replacing Front Trim For Luggage Compartment Floor .
Remove top trim on tail panel . See 51 46 050 Removing And Installing/Replacing Top Trim On Tail Panel .

Release clips (2).

Release screw clips (1).

Luggage compartment wheel arch trim (3).

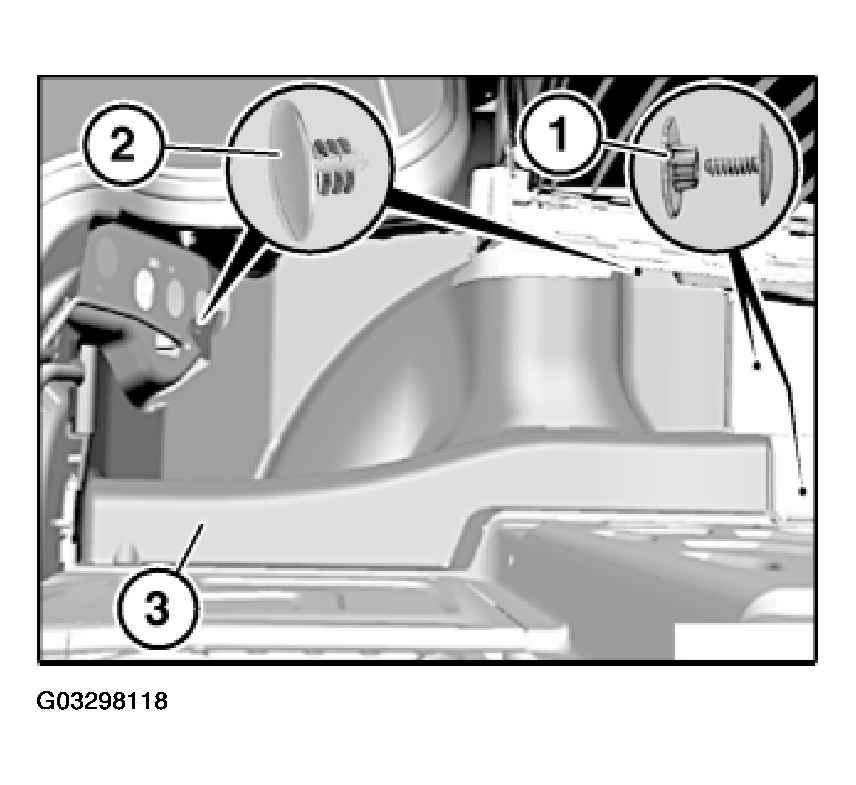

Fig 1: Releasing Screw Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (2).

Carefully raise trim (1) on rear spring strut dome with special tool 00 9 317.

Cut open luggage compartment wheel arch trim (3) in area (4).

Remove luggage compartment wheel arch trim (3).

Installation:

Make sure luggage compartment wheel arch trim is correctly seated.

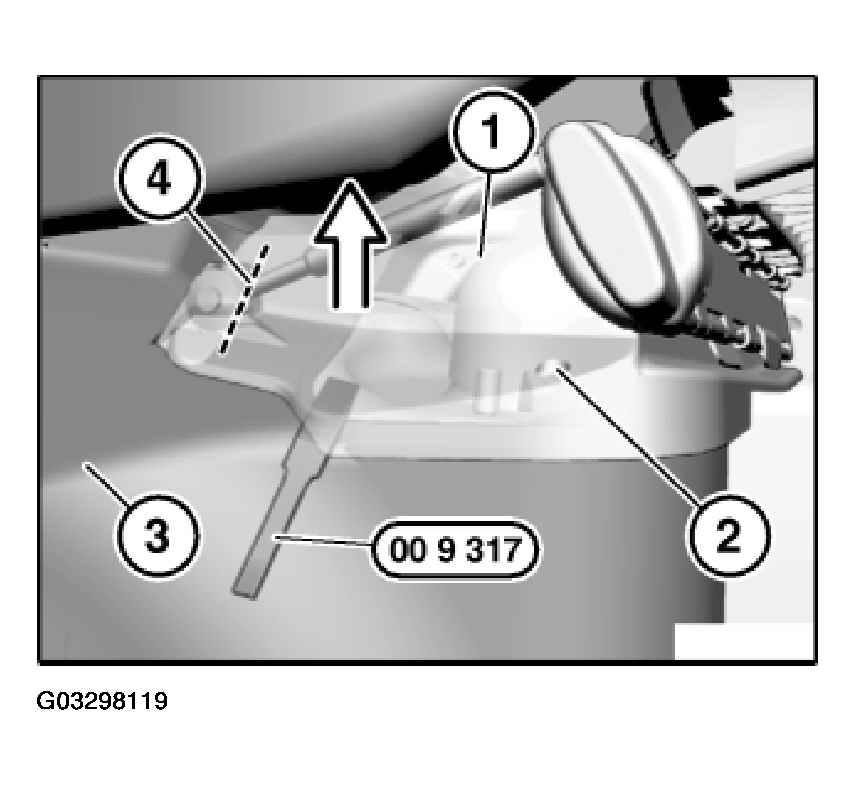

Fig 2: Raising Trim On Rear Spring Strut Dome With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.
