51 47 131 Replacing front trim for luggage compartment floor
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

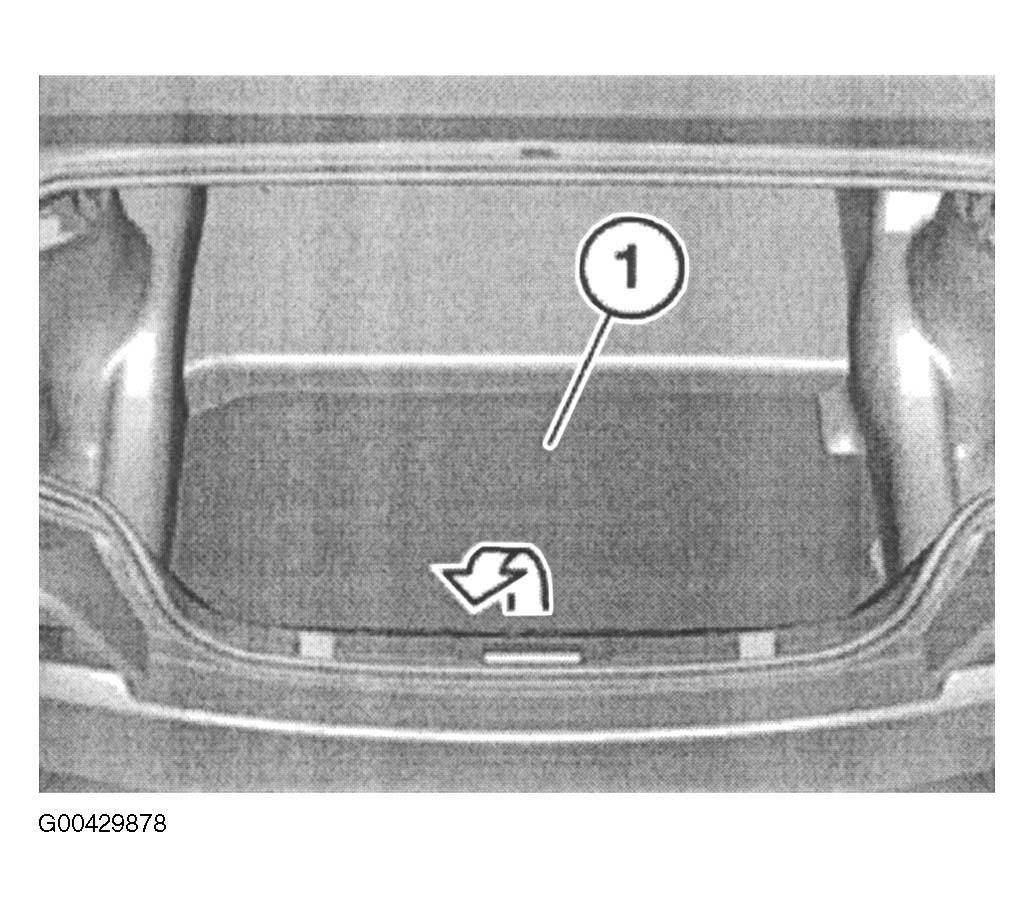

Take out luggage compartment floor trim panel (1).
On M Roadster, remove panel for battery container.

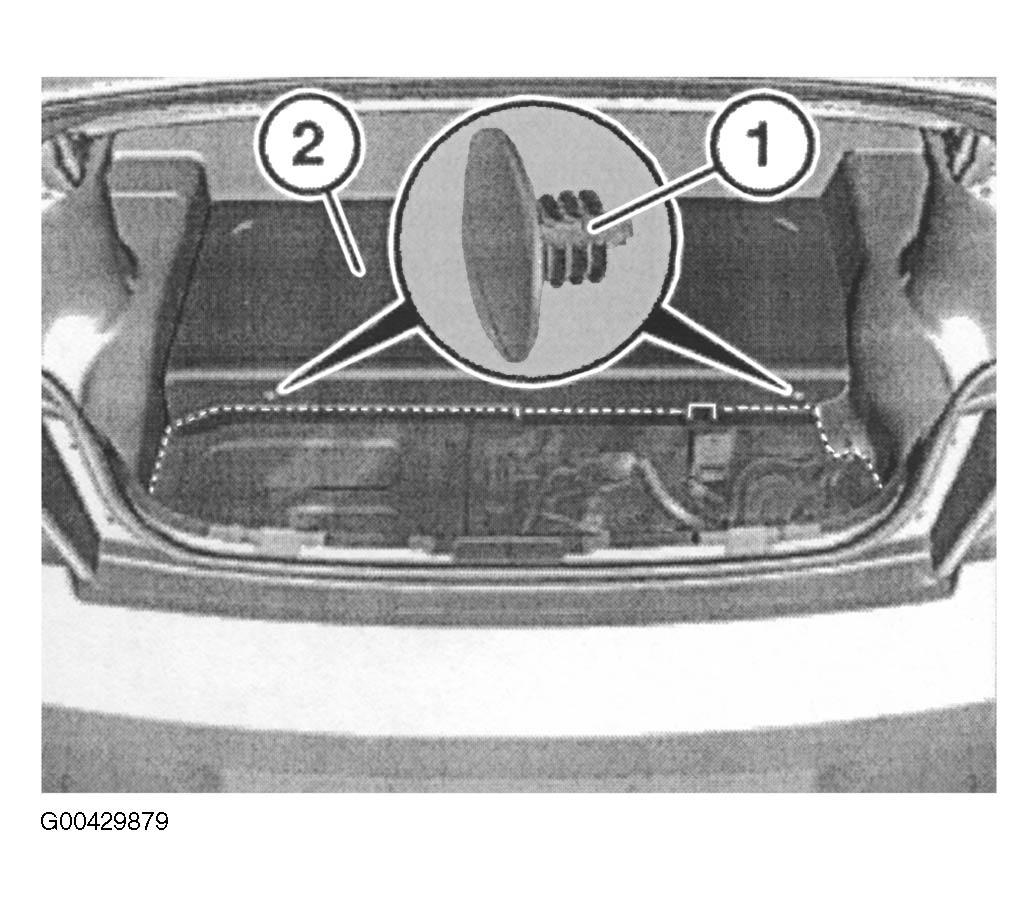

On all models, release clips (1). Remove front luggage compartment floor trim (2).
