36 10 508 Balancing wheel dynamically (wheel removed)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

36 1 010
36 1 020

IMPORTANT: Use only BMW-approved balance weights.

Remove any fitted balancing weights, stones in tread pattern and larger contaminants.

Check tire pressure, check tire for condition, damage, flat spots (out-of-round caused by e.g. stopping the car with hot tires); if necessary, check wheel and tire for Radial And Lateral Runout .

Fig 1: Removing Weights, Stones In Tread, And Larger Contaminants

Courtesy of BMW OF NORTH AMERICA, INC.

Use BMW-approved centering elements.

Basic flange
Wheel centering element
Type flange
Clamping nut

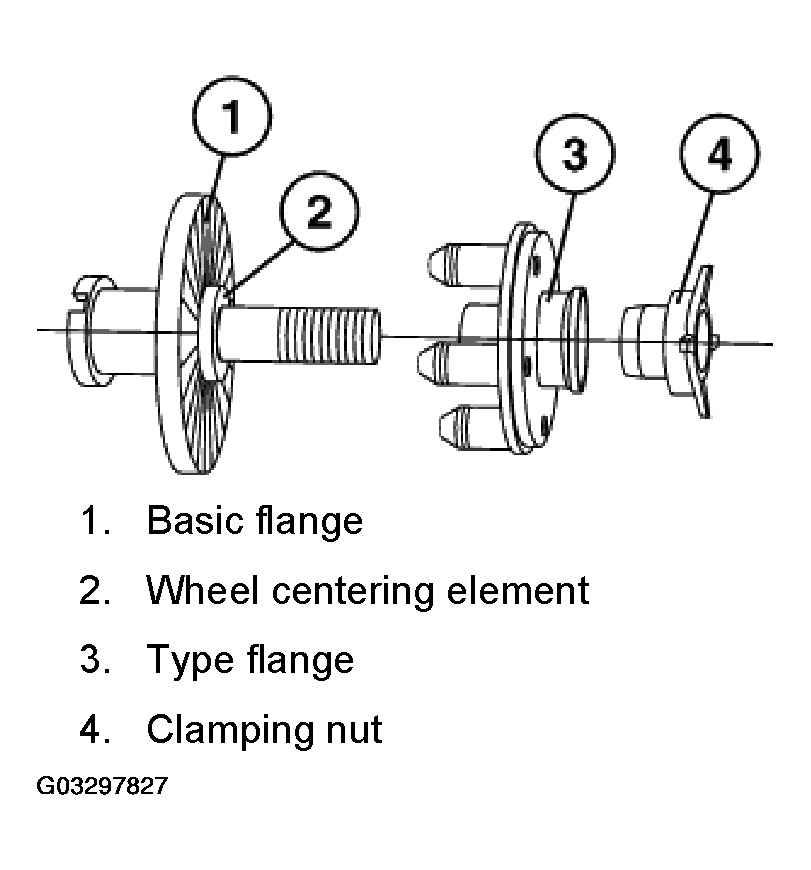

Fig 2: Identifying BMW-Approved Centering Elements

Courtesy of BMW OF NORTH AMERICA, INC.

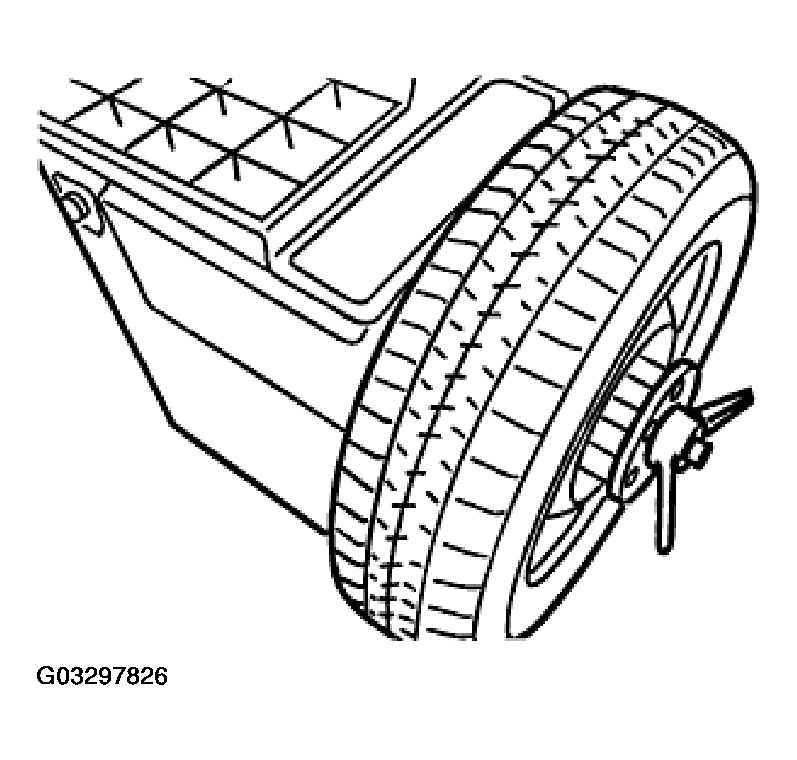

IMPORTANT: To avoid retooling errors, it will be necessary to fit the wheel on the balancing machine in the same way (e.g. valve facing down) as it is then fitted on the car.
Balance wheel in accordance with operating instructions of relevant balancing machine.

On light-alloy rims with distinctive J-shape rim flange, proceed as follows:

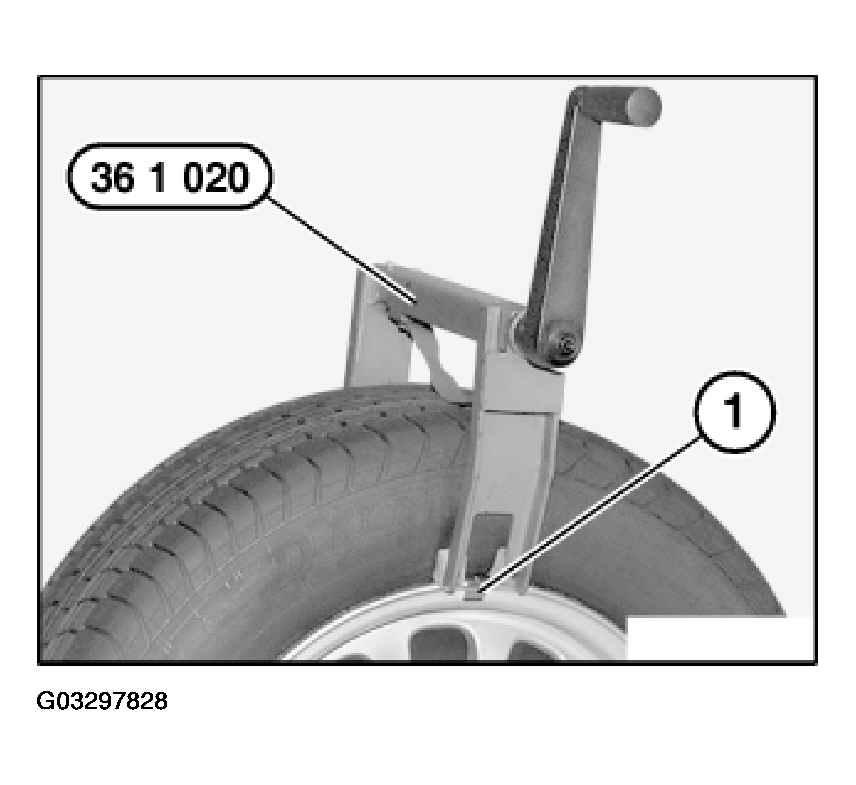

Gently force off tire sidewall with special tool 36 1 020 at appropriate point from rim flange.
Install retaining clip (1).
Remove special tool 36 1 020.

Fig 3: Forcing Off Tire Sidewall With Special Tool 36 1 020

Courtesy of BMW OF NORTH AMERICA, INC.

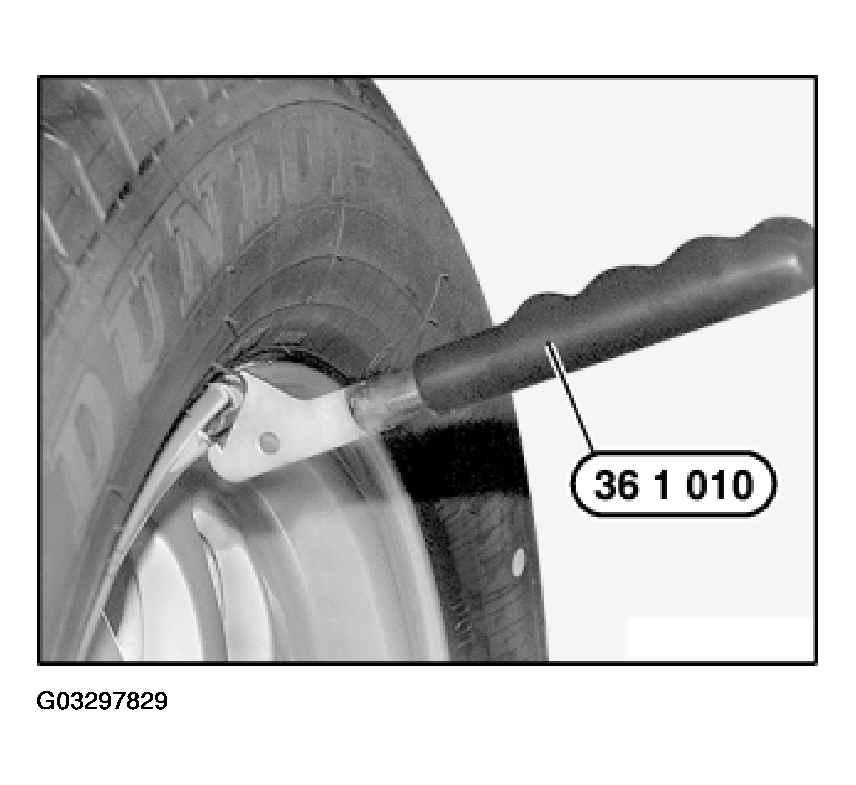

Raise retaining clip with special tool 36 1 010. Slide balance weight underneath and allow it to snap into place.

Fig 4: Raising Retaining Clip With Special Tool 36 1 010

Courtesy of BMW OF NORTH AMERICA, INC.

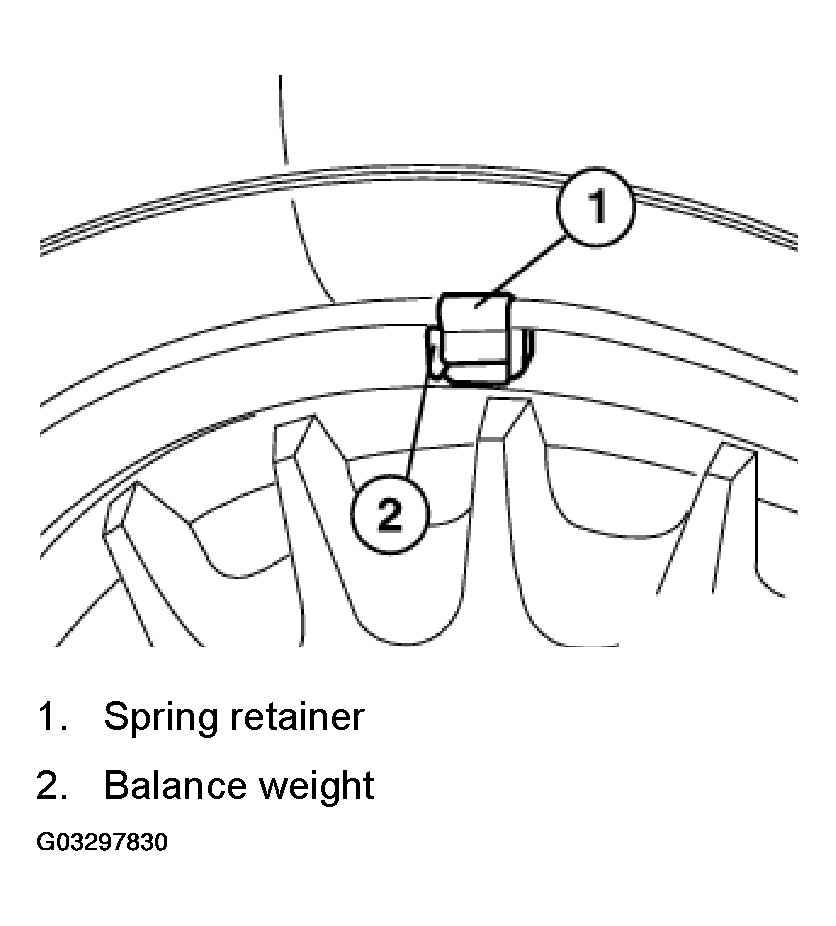

Arrangement of balance weights for light-alloy rims with distinctive J-shape rim flanges.

Spring retainer
Balance weight

Adhesive weights must be used on all other light-alloy rims.

Max. imbalance per wheel, see WHEEL AND TIRES - TECHNICAL DATA .

Fig 5: Identifying Spring Retainer And Balance Weight

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: When using adhesive weights, proceed as follows:

Carefully remove any adhesive weights. Do not damage rim when doing so.
Select suitable location for fitting.
Clean adhesive area thoroughly.

IMPORTANT: On the E87 with 16" tires, do not use stick-on weights; use only clamp-on weights instead.
