36 10 209 Checking front and rear wheel for face and radial runout

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

36 1 030

Necessary preliminary tasks:

Check wheel bearings

Lift vehicle.

Check wheel with special tool 36 1 030 (measuring fixture) for lateral runout.

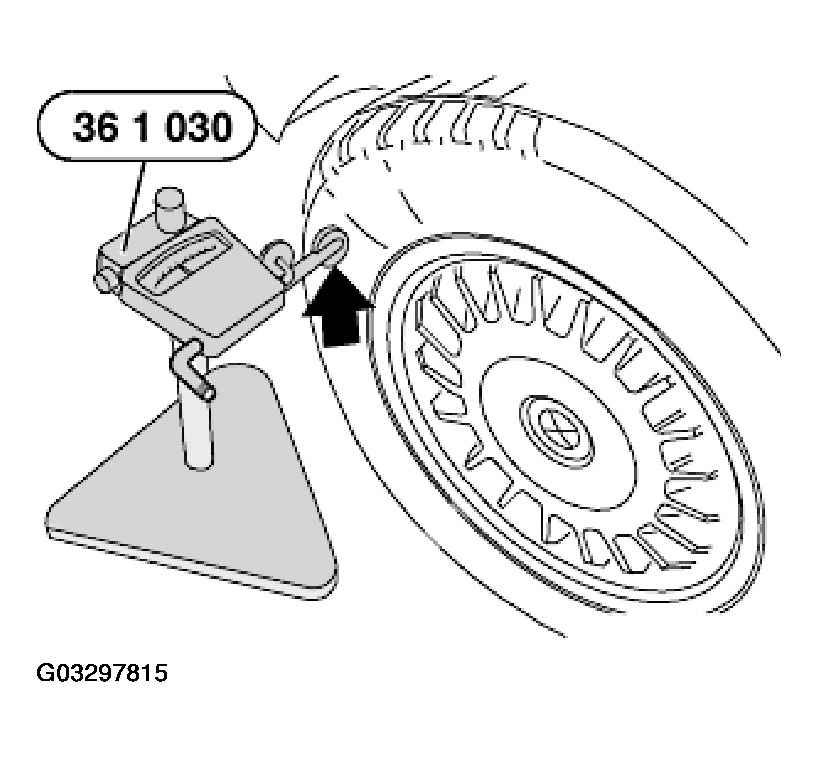

Fig 1: Checking Wheel With Special Tool 36 1 030 For Lateral Runout

G03297815

Courtesy of BMW OF NORTH AMERICA, INC.

Check wheel with special tool 36 1 030 (measuring fixture) for radial runout.

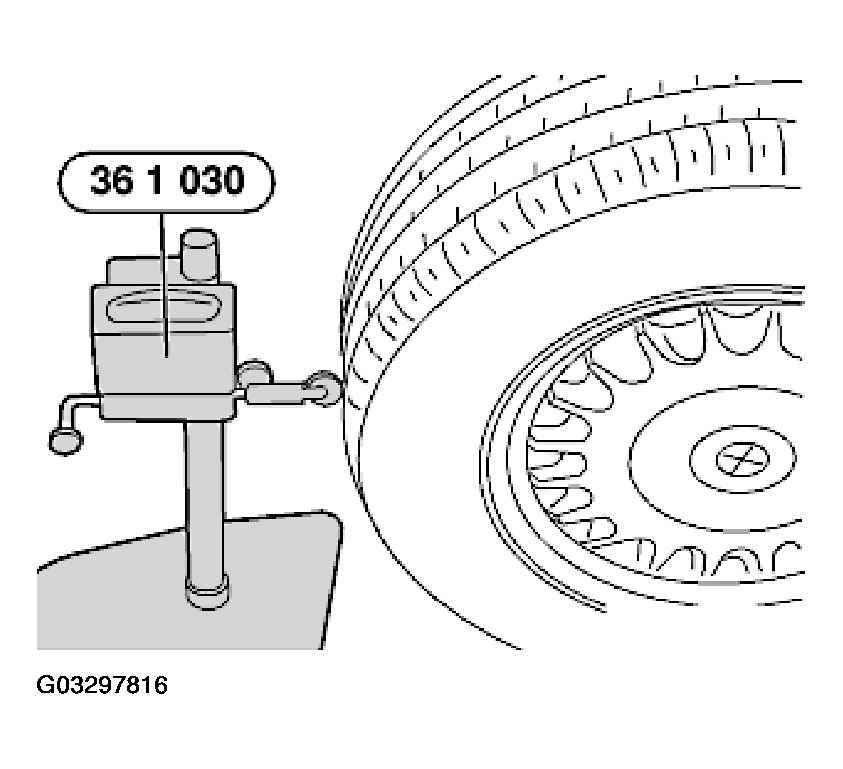

Fig 2: Checking Wheel With Special Tool 36 1 030 For Radial Runout

G03297816

Courtesy of BMW OF NORTH AMERICA, INC.

If applicable, remove balance weights.

Check lateral runout of rim with special tool 36 1 030 (measuring fixture).

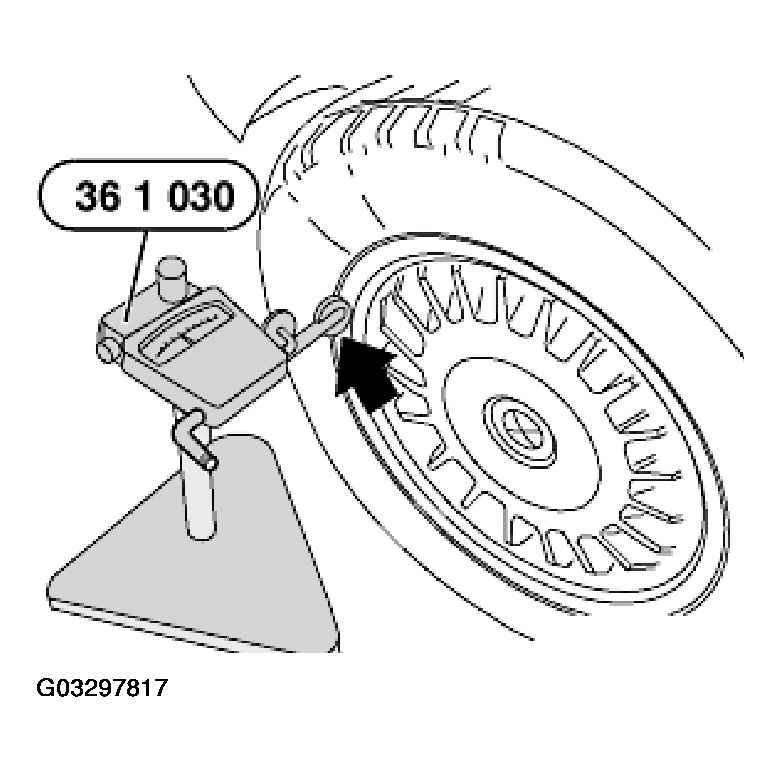

Fig 3: Checking Lateral Runout Of Rim With Special Tool 36 1 030

G03297817

Courtesy of BMW OF NORTH AMERICA, INC.

Check radial runout of rim with special tool 36 1 030 (measuring fixture).

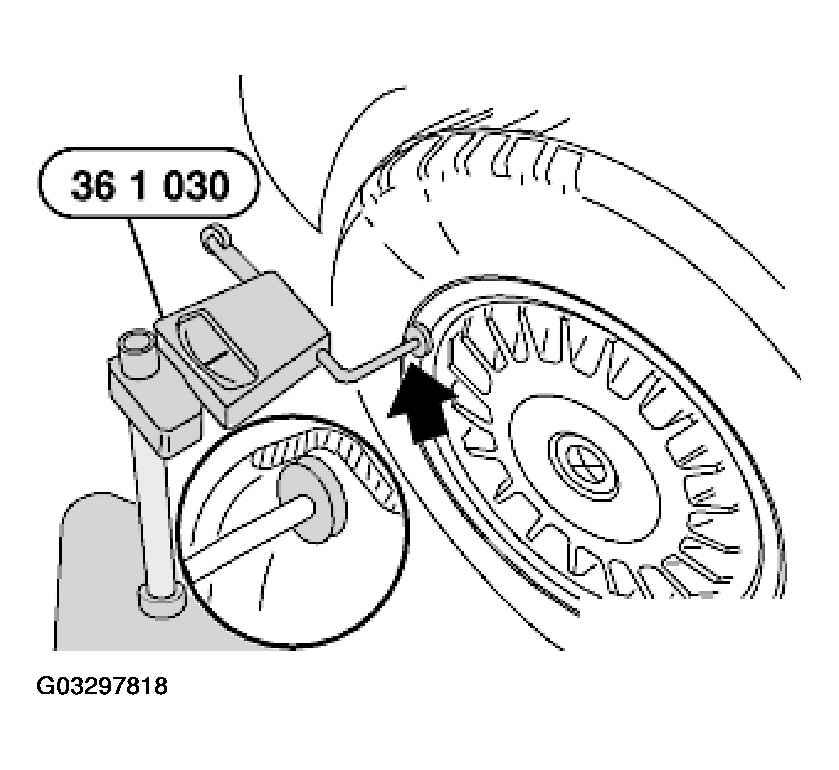

Fig 4: Checking Radial Runout Of Rim With Special Tool 36 1 030

G03297818

Courtesy of BMW OF NORTH AMERICA, INC.
