63 21 101 Replacing sealing frame for left or right rear light

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove rear light. Refer to 63 21 180 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT REAR LIGHT .

Up to 07/2004:

Detach sealing frame for rear light (1) in upwards direction from rear light (2).

Installation:

Make sure sealing frame for rear light (1) is correctly bonded all round on rear light (2).

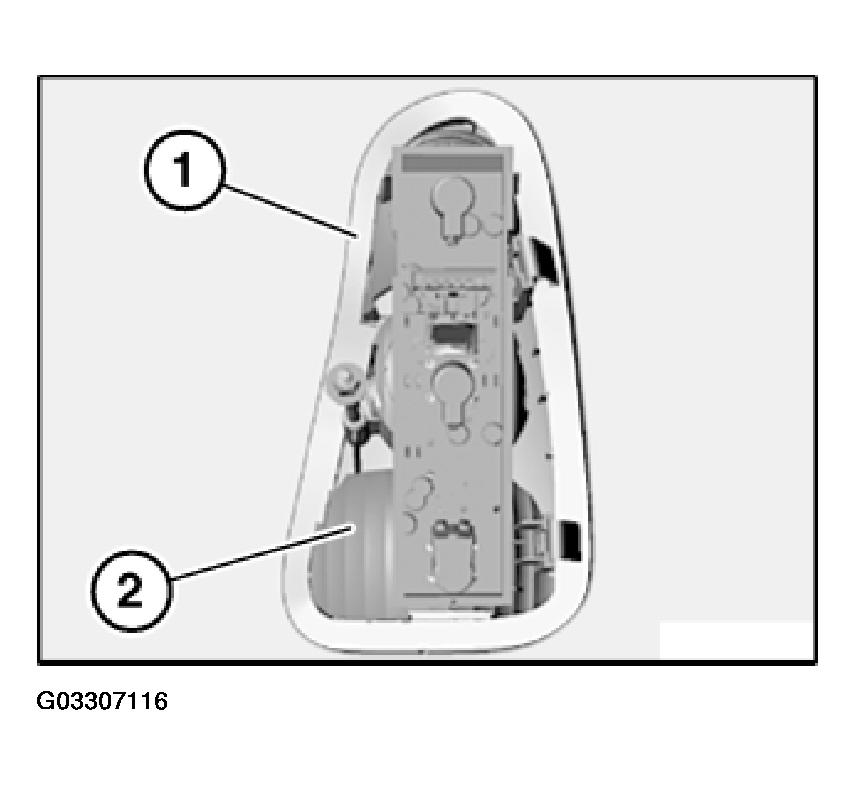

Fig 1: View Of Sealing Frame For Rear Light (Up To 07/2004)

Courtesy of BMW OF NORTH AMERICA, INC.

From 07/2004:

Detach sealing frame for rear light (1) in upwards direction from rear light (2).

Installation:

Sealing frame for rear light (1) is centered via lugs (3).
Make sure sealing frame for rear light (1) is correctly bonded all round on rear light (2).

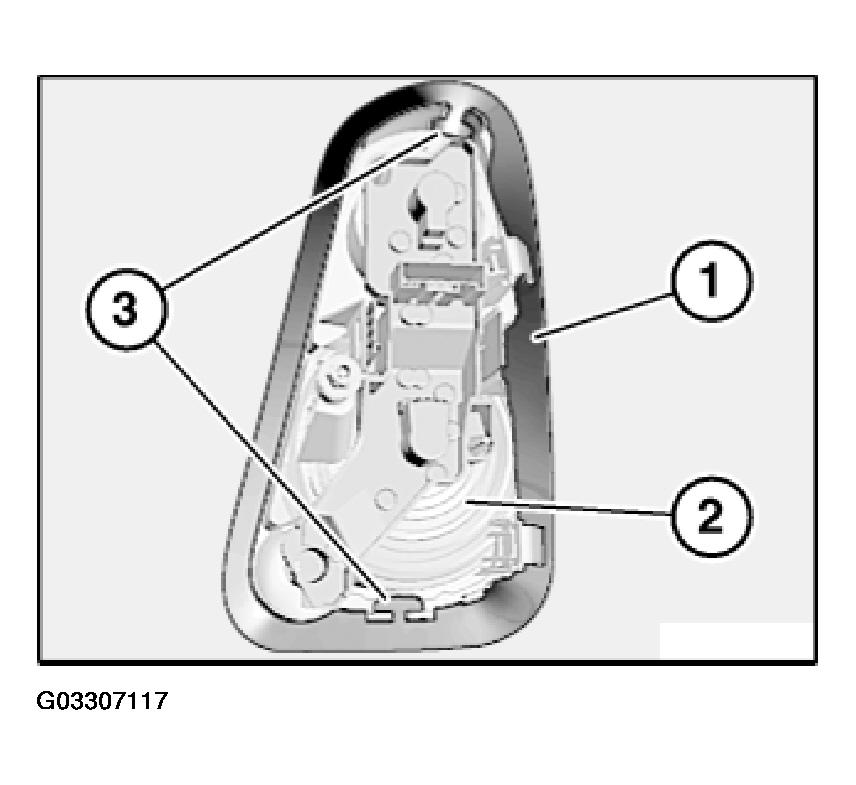

Fig 2: View Of Sealing Frame For Rear Light (From 07/2004)

Courtesy of BMW OF NORTH AMERICA, INC.
