63 21 180 Removing and installing/replacing left or right rear light

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

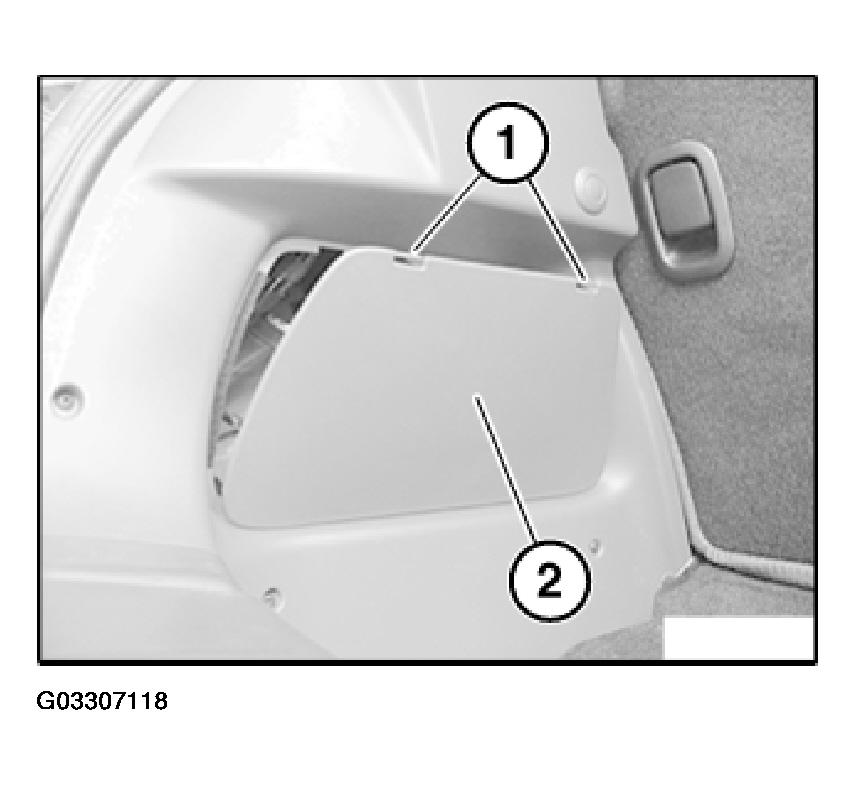

Unlock catches (1) and remove cover (2).

Fig 1: Locating Catches In Cover

G03307118

Courtesy of BMW OF NORTH AMERICA, INC.

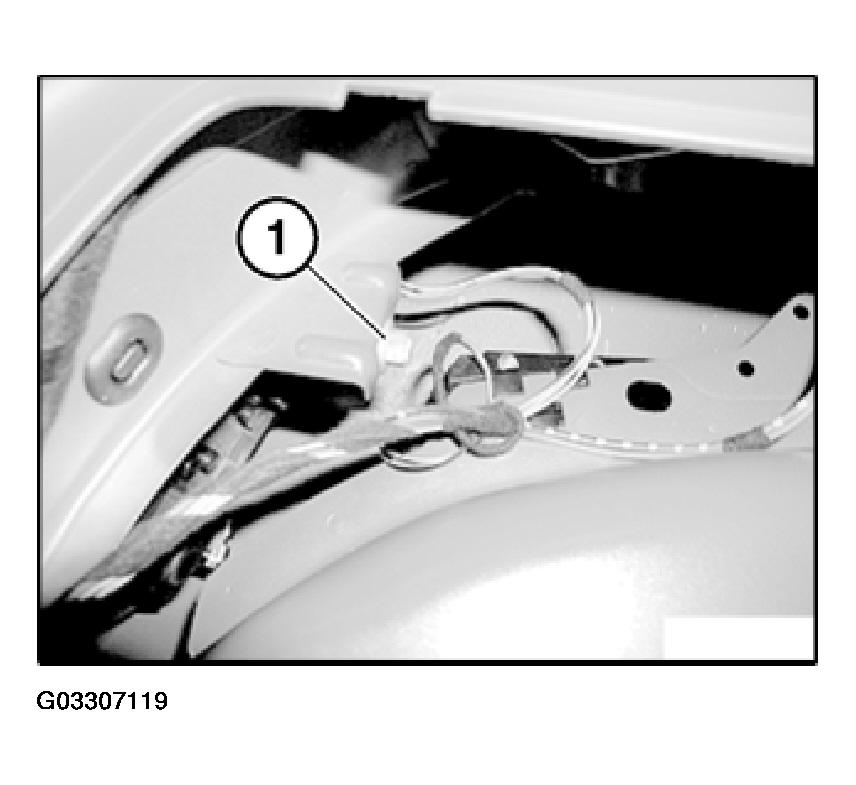

Release nut (1) of rear light.

Fig 2: Identifying Nut Of Rear Light

G03307119

Courtesy of BMW OF NORTH AMERICA, INC.

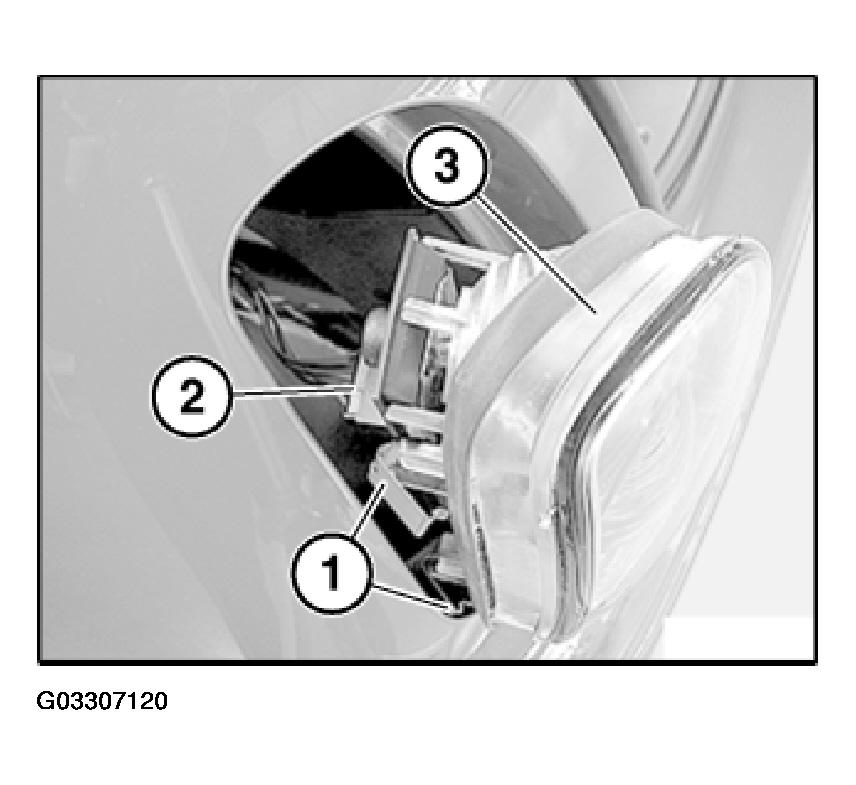

Release retaining clips (1) and remove rear light (3) from side panel.

Unfasten plug connection (2) and disconnect.

Remove rear light (3).

Fig 3: Removing Rear Light From Side Panel

G03307120

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

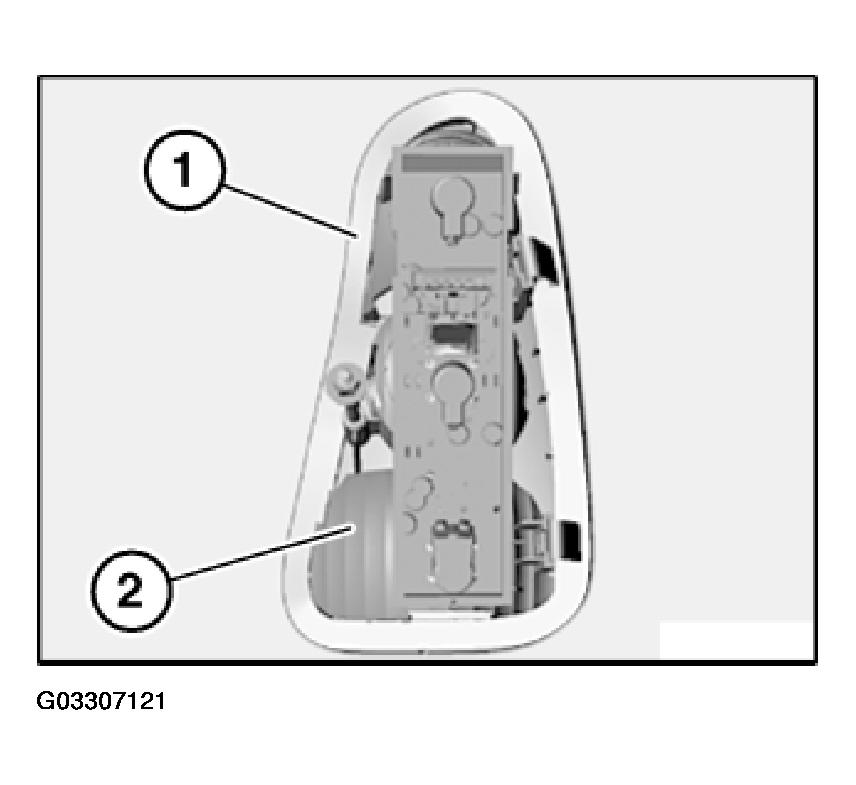

Make sure sealing frame (1) is correctly seated on rear light (2).

If necessary, replace sealing frame (1).

Fig 4: View Of Sealing Frame

G03307121

Courtesy of BMW OF NORTH AMERICA, INC.
