35 11 000 Removing and installing complete bearing block for foot pedal

Necessary Preliminary Tasks:

• Remove storage compartment. Refer to 51 16 392 REMOVING AND INSTALLING/REPLACING STORAGE COMPARTMENT IN INSTRUMENT PANEL TRIM (DRIVER'S SIDE) .

After completing work bleed clutch hydraulic system. Refer to BLEEDING .

Draw off brake fluid until level is below connection to clutch master cylinder.

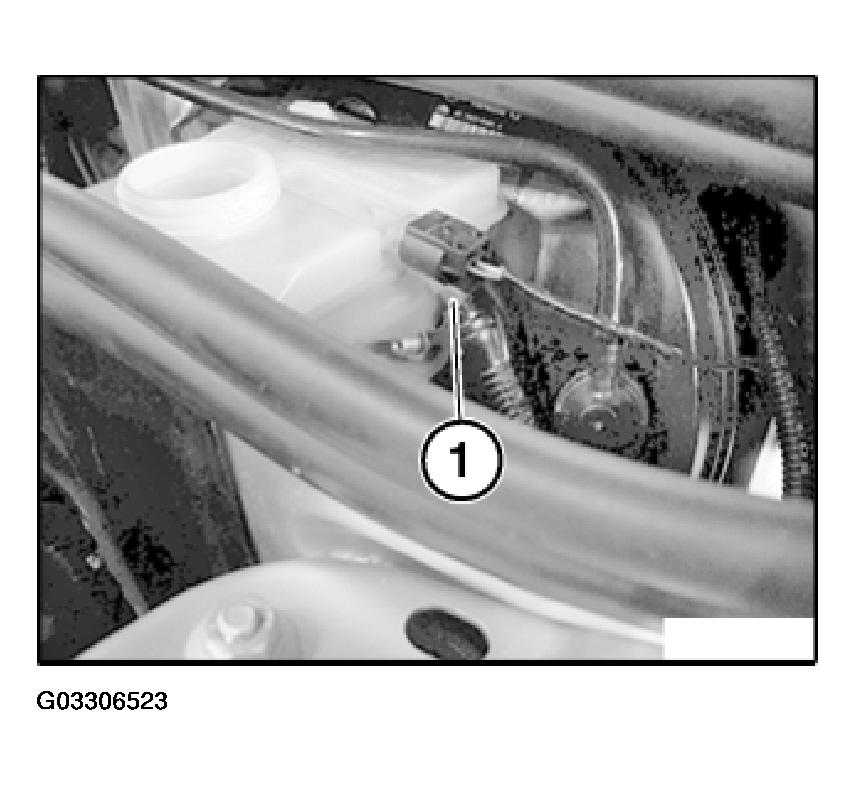

Detach feed hose (1) for clutch hydraulics.

Fig 1: Identifying Feed Hose For Clutch Hydraulics

Courtesy of BMW OF NORTH AMERICA, INC.

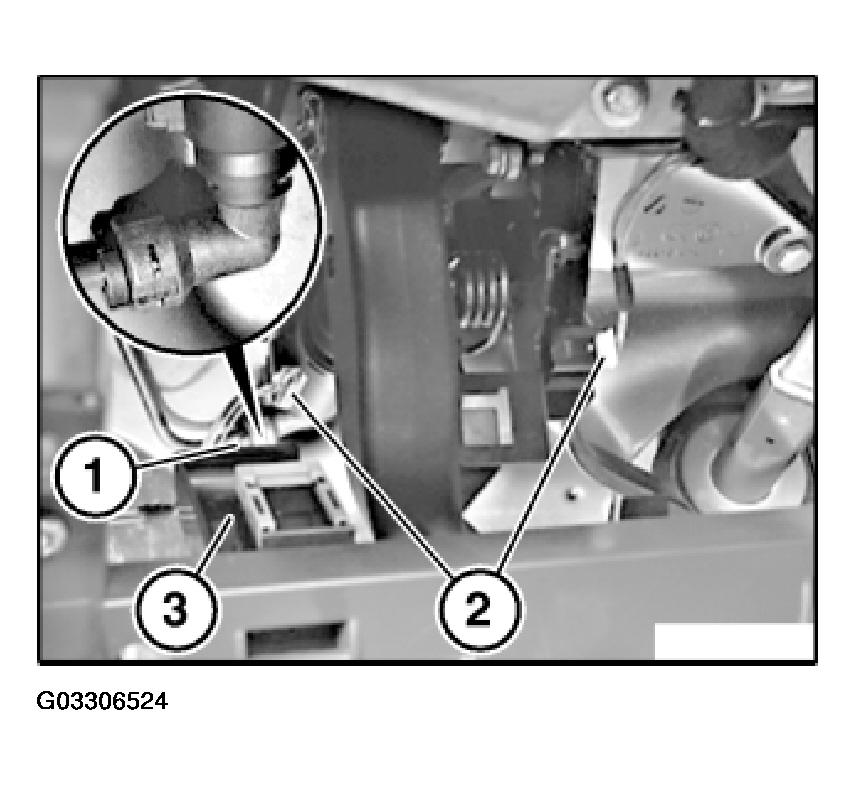

Remove line connection from clutch master cylinder (1).

Disconnect plug connection (2) on brake light switch.

If necessary, disconnect plug connection on clutch switch.

Remove bracket (3).

Fig 2: Locating Line Connection From Master Cylinder

Courtesy of BMW OF NORTH AMERICA, INC.

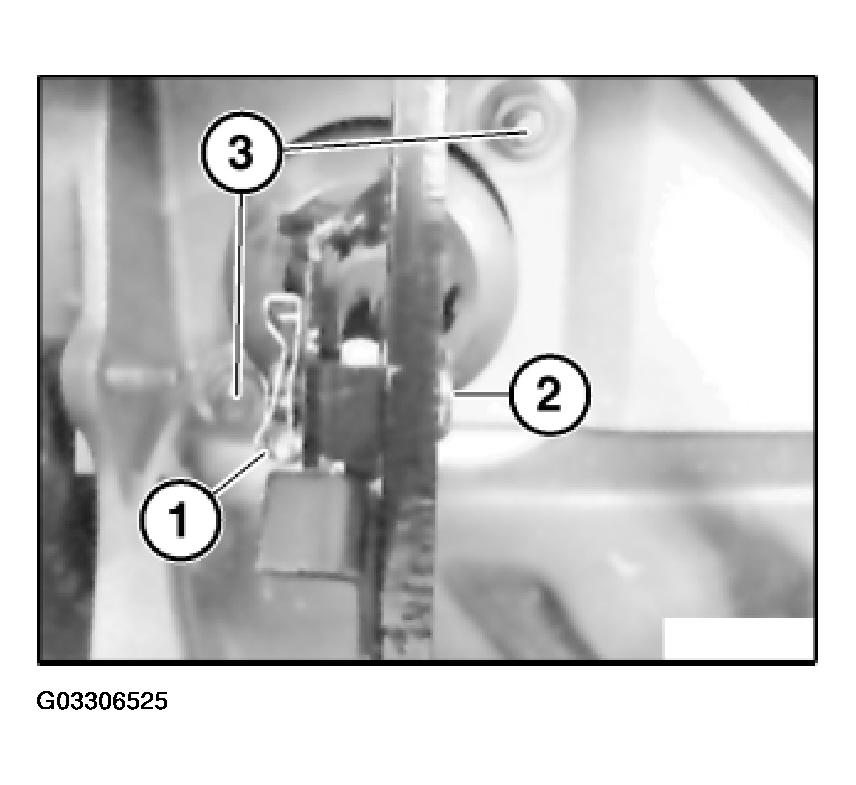

Remove locking clip (1) and pull out pin (2).

Release nuts (3).

Installation:

Replace self-locking nuts

Tightening torque, (21 =/- 3 N.m.).

Fig 3: View Of Locking Clip And Pin

Courtesy of BMW OF NORTH AMERICA, INC.

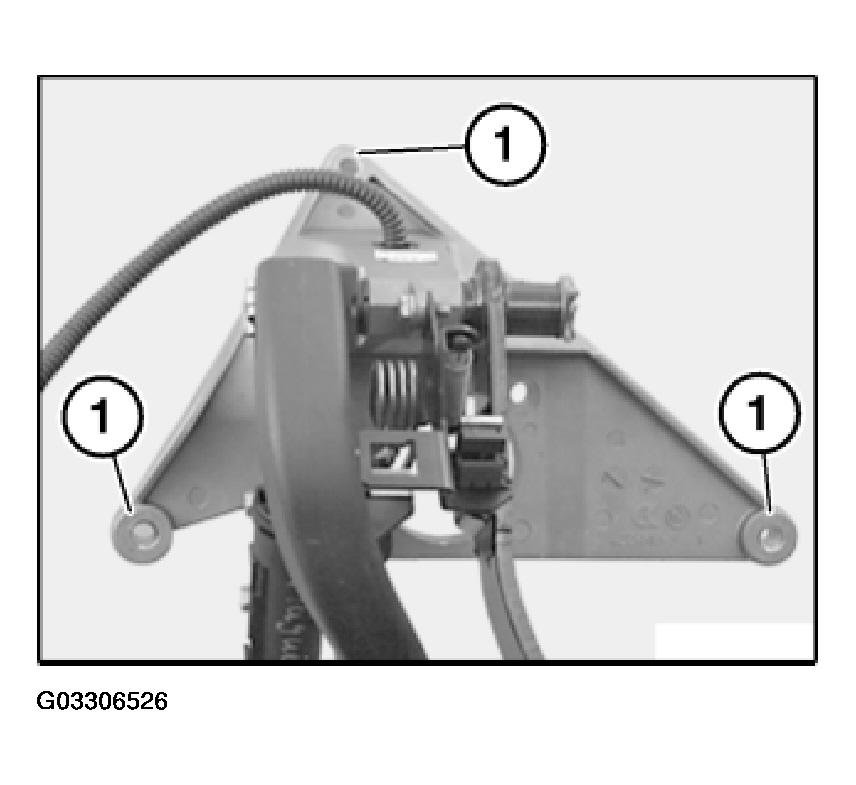

Unfasten screws (1).

Installation:

Tightening torque, refer to 35 11 1AZ in PEDALS - TIGHTENING TORQUES - COOPER (1.6L) R50/W10 .

Fig 4: Identifying Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

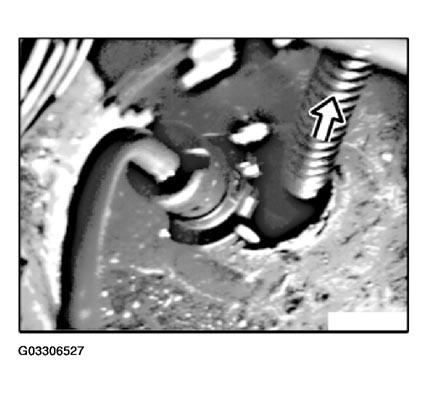

Fig 5: Locating Line From Expansion Tank In Bulkhead

Courtesy of BMW OF NORTH AMERICA, INC.

Remove bearing block downwards.

When replacing bearing block:

• Modify brake pedal. Refer to 35 21 000 REMOVING AND INSTALLING/REPLACING BRAKE PEDAL .
• Modify clutch pedal. Refer to 35 31 000 REMOVING AND INSTALLING/REPLACING CLUTCH PEDAL .

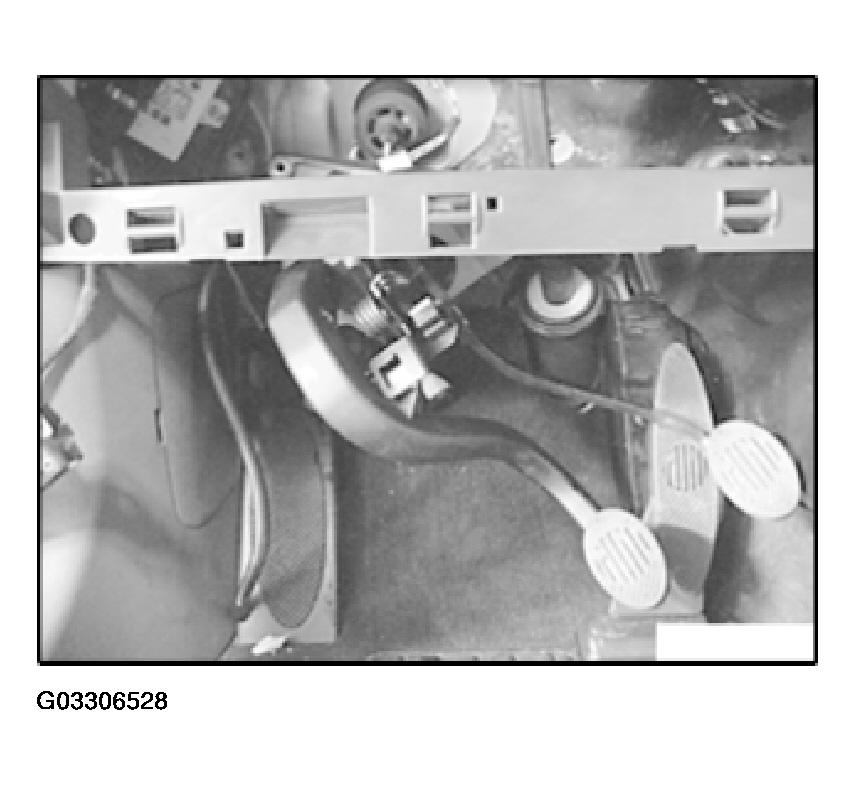

Fig 6: View Of Bearing Block

Courtesy of BMW OF NORTH AMERICA, INC.
