35 31 000 Removing and installing/replacing clutch pedal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove storage compartment. Refer to 51 16 392 REMOVING AND INSTALLING/REPLACING STORAGE COMPARTMENT IN INSTRUMENT PANEL TRIM (DRIVER'S SIDE) .

Press bolt ends (1) together and remove bolt.

Unfasten screws (2).

Installation:

Tightening torque, refer to 35 31 1AZ in PEDALS - TIGHTENING TORQUES - COOPER (1.6L) R50/W10 .

Remove locking clip (3).

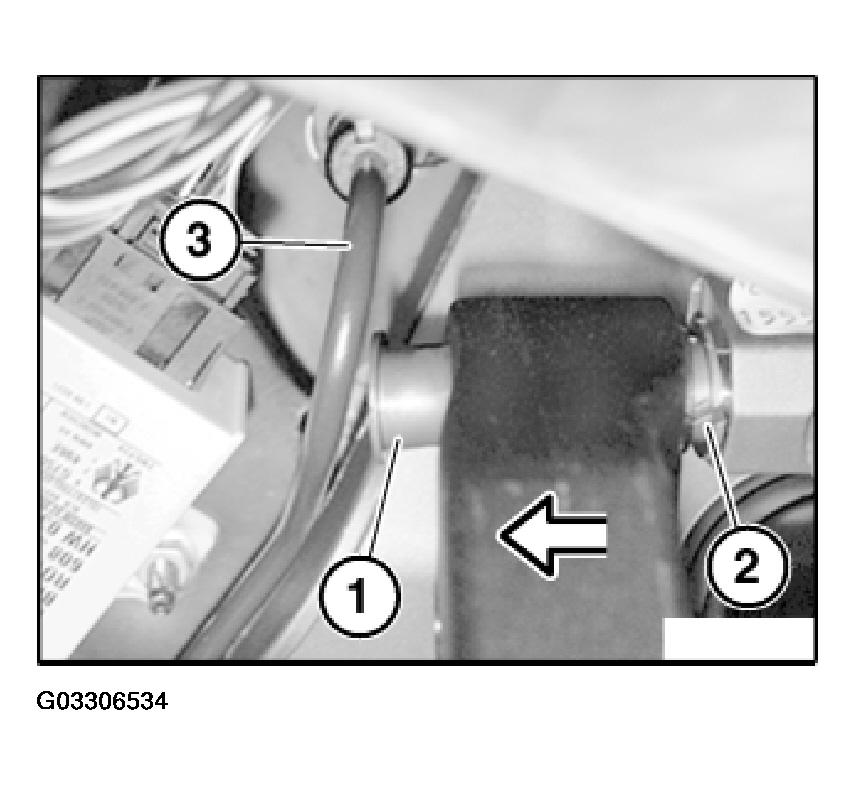

Fig 1: Locating Locking Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Remove return spring (1).

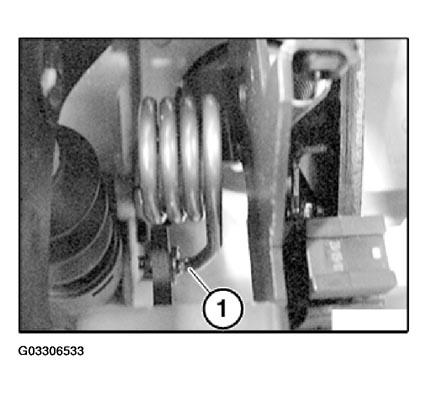

Fig 2: Identifying Return Spring

Courtesy of BMW OF NORTH AMERICA, INC.

Remove outer bearing (1) from clutch pedal.

Pull clutch pedal from pivot pin.

Remove inner bearing (2).

If necessary, carefully press hydraulic line (3) to one side slightly.

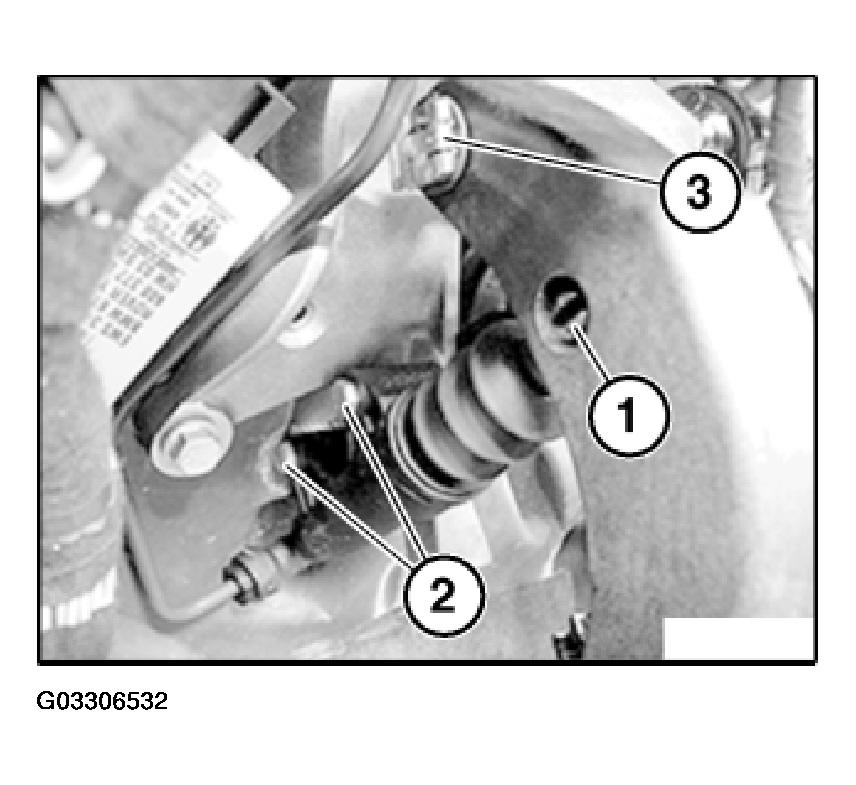

Fig 3: View Of Outer Bearing On Clutch Pedal

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Note that there are different versions of the clutch pedal! Clutch pedal (1) (vehicles from 05/02) is curved in area (A). Clutch pedal (2) (vehicles up to 05/02) is straight in area (A). If a clutch pedal (2) for vehicles up to 05/02 is replaced, the bearing block must also be replaced.

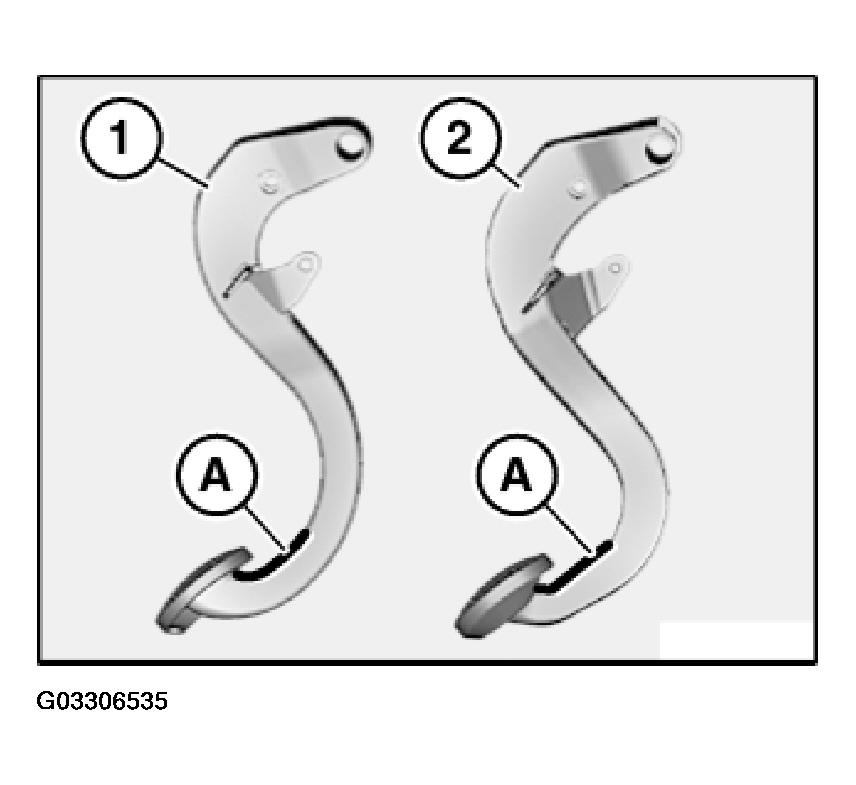

Fig 4: Identifying Clutch Pedal (Vehicles From 05/02 And Vehicles Up To 05/02)

Courtesy of BMW OF NORTH AMERICA, INC.
