34 41 120 Removing and installing/replacing both handbrake Bowden cables

Special Tools Required:

• 34 6 330

Necessary Preliminary Tasks:

• Remove exhaust system. Refer to 18 12 030 REMOVING AND INSTALLING/REPLACING REAR MUFFLER (W10) .
• Remove rear center console. Refer to 51 16 216 REMOVING AND INSTALLING REAR CENTER CONSOLE .
• Remove bracket on center console. Refer to 51 16 218 REMOVING AND INSTALLING / REPLACING REAR STORAGE COMPARTMENT HOLDER .
• Remove heat shield.

After completing tasks, adjust handbrake. Refer to 34 10 014 ADJUSTING HANDBRAKE .

Release adjusting fixture (1) for parking brake Bowden cable.

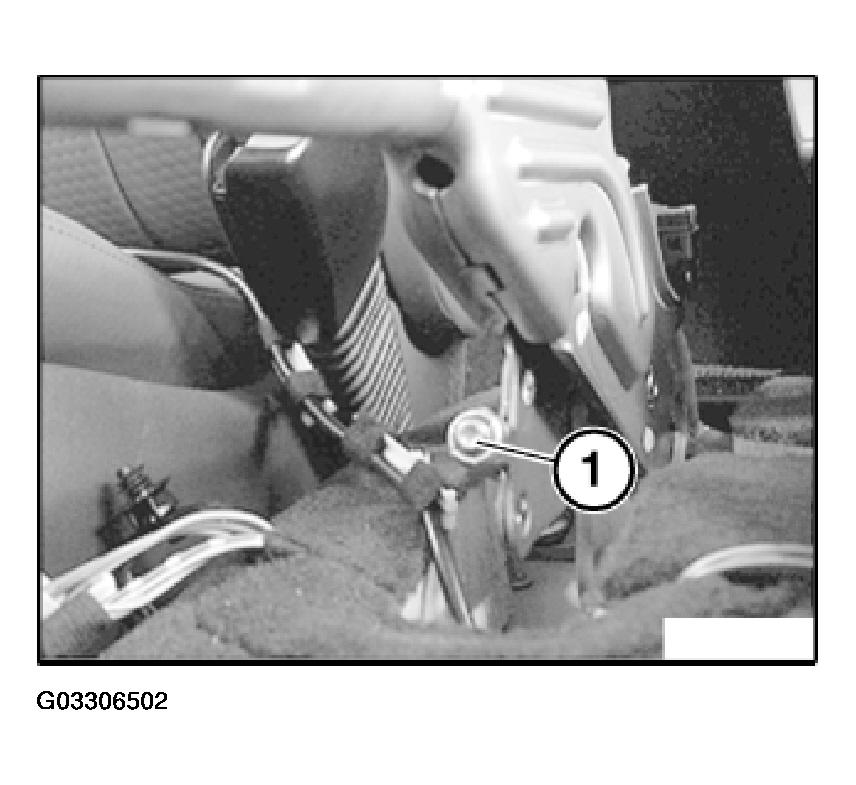

Fig 1: Locating Adjusting Fixture For Parking Brake Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Detach both parking brake Bowden cables from balance arm.

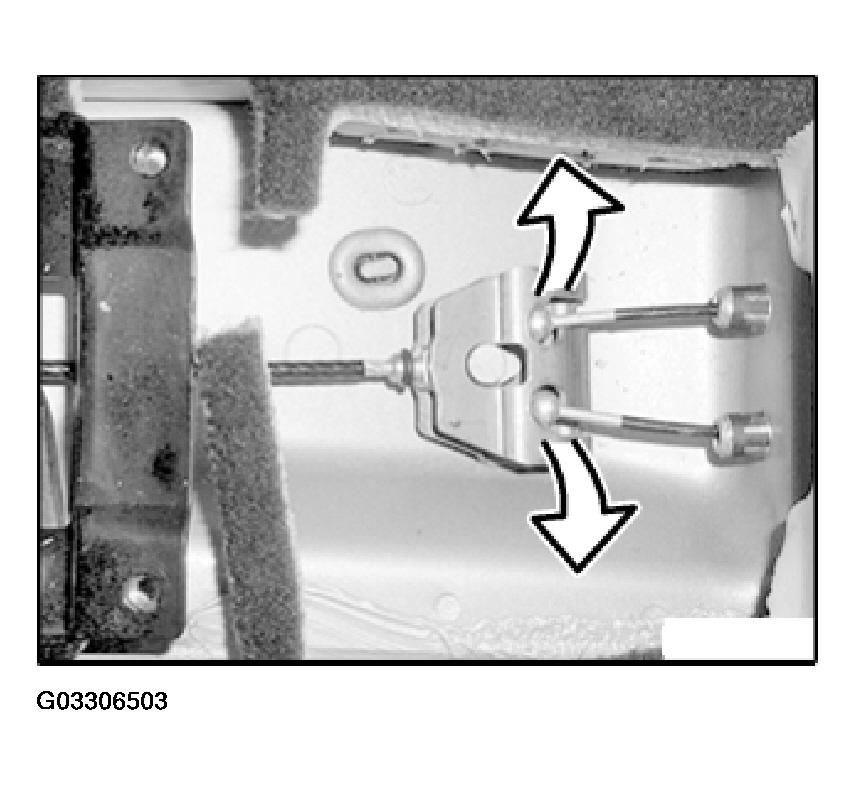

Fig 2: Identifying Parking Brake Bowden Cables

Courtesy of BMW OF NORTH AMERICA, INC.

Attach special tool 34 6 330 to parking brake Bowden cable (1).

Slide special tool 34 6 330 in direction of arrow onto barbs of parking brake Bowden cable (1) until barbs are free.

Push parking brake Bowden cable towards rear.

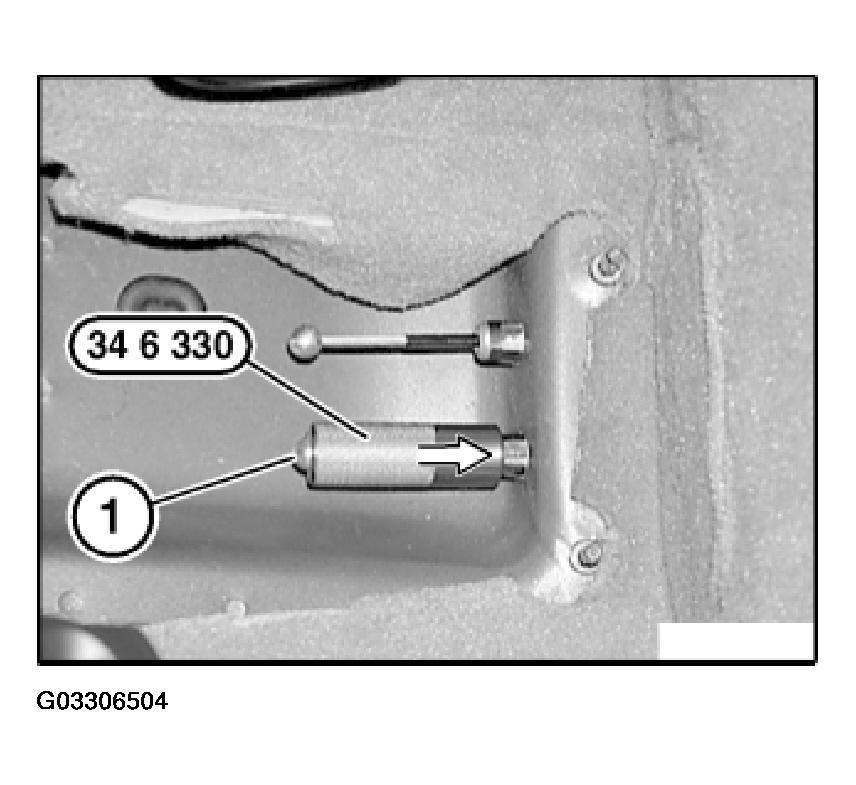

Fig 3: View Of Bowden Cable Removal Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Release cable assemblies from clips (1) on fuel tank. Release screws (2) and remove bracket from control arm at top.

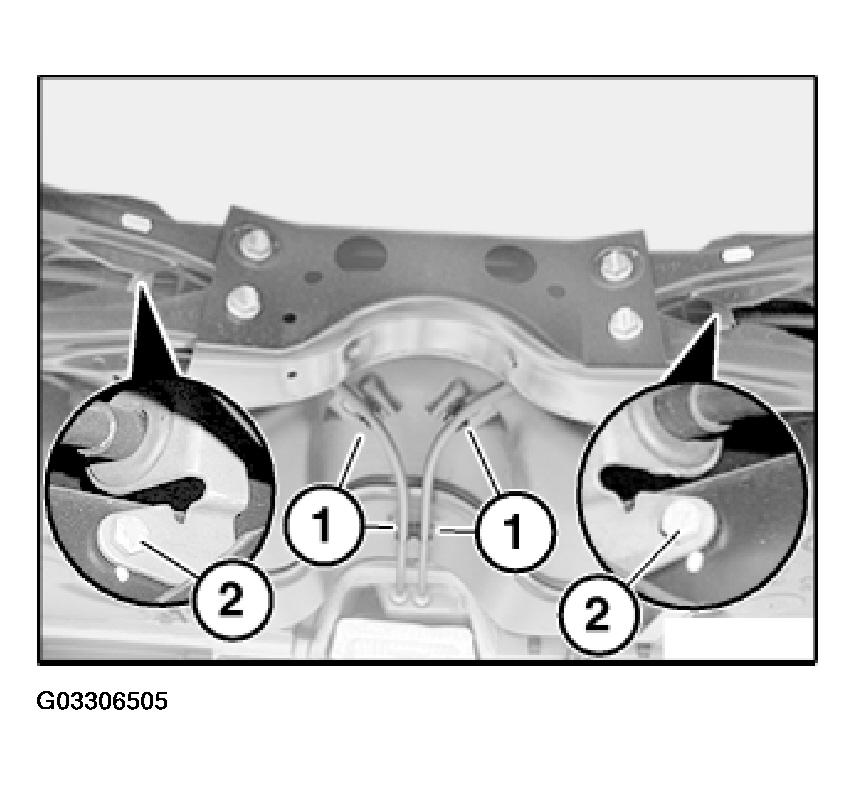

Fig 4: Locating Cable Assemblies

Courtesy of BMW OF NORTH AMERICA, INC.

Detach cable assembly from actuating lever on brake caliper and pull downward out of retaining fixture.

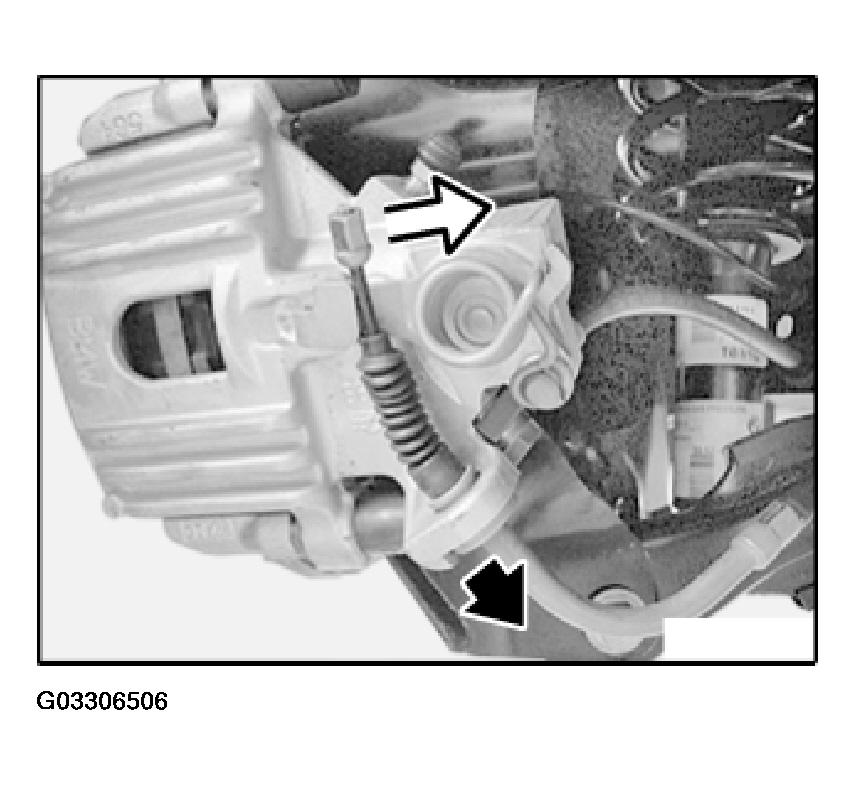

Fig 5: Removing Cable Assembly From Actuating Lever

Courtesy of BMW OF NORTH AMERICA, INC.
