22 31 005 Removing and installing/replacing transmission support bracket

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove air cleaner housing. Refer to 13 71 000 REMOVING AND INSTALLING INTAKE FILTER HOUSING .
Remove battery compartment (W10 only). Refer to 61 21 100 REMOVING AND INSTALLING/REPLACING BATTERY CONTAINER .

Release screws (1).

Push fuse box to one side.

Tightening torque, refer to 61 13 1AZ in GENERAL ELECTRICAL SYSTEM - TIGHTENING TORQUE .

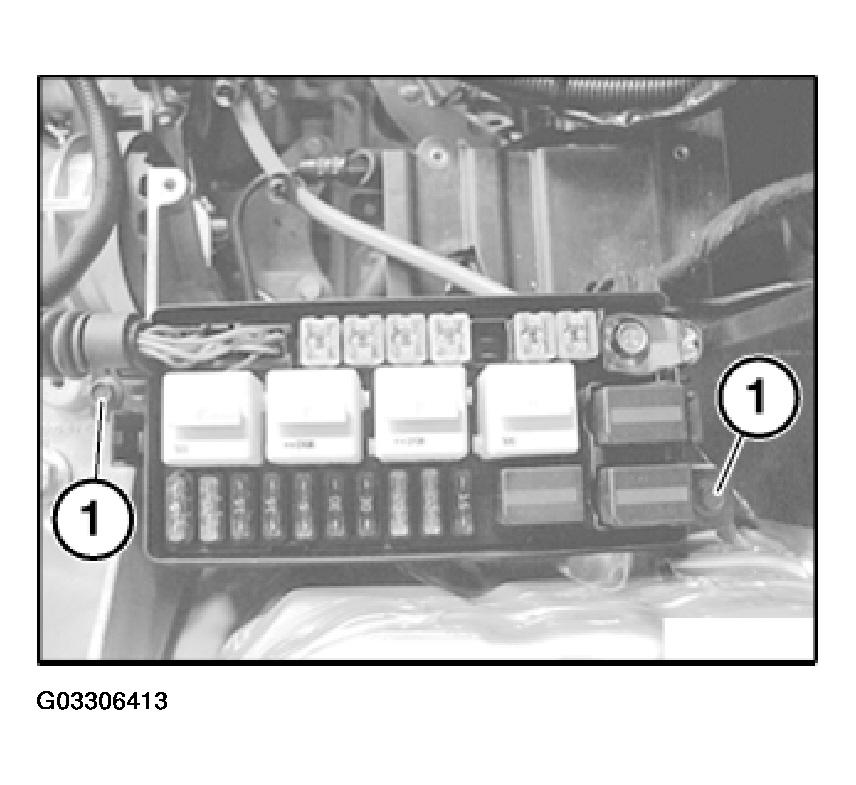

Fig 1: View Of Fuse Box

Courtesy of BMW OF NORTH AMERICA, INC.

Secure engine in installation position. Refer to SECURING ENGINE IN INSTALLATION POSITION WITH SPECIAL TOOL (W10/W11) .

Release screw (1).

Tightening torque, refer to 22 32 3AZ in ENGINE AND GEARBOX SUSPENSION - TIGHTENING TORQUES .

Release screws (2).

Tightening torque, refer to 22 32 2AZ in ENGINE AND GEARBOX SUSPENSION - TIGHTENING TORQUES .

Remove transmission support bracket.

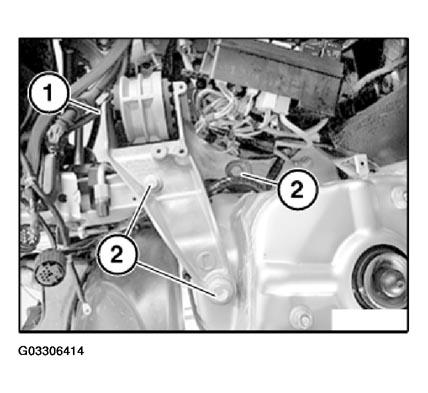

Fig 2: Removing Transmission Support Bracket

Courtesy of BMW OF NORTH AMERICA, INC.
