Securing engine in installation position with special tool (W10/W11)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For Special Tool identification, see ENGINE- SPECIAL TOOLS - COOPER (1.6L) R50/W10 , BODY EQUIPMENT - SPECIAL TOOLS - COOPER (1.6L) R50/W10 and MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS - COOPER (1.6L) R50/W10 .
Special Tools Required:
- 00 0 200
- 00 0 201
- 00 0 202
- 00 0 205
- 00 0 207
- 00 0 209
- 11 8 260
- 51 2 160
Necessary Preliminary Tasks:
- Disconnect battery (W11).
- Remove battery (W10). Refer to 12 00 DISCONNECTING AND CONNECTING BATTERY .

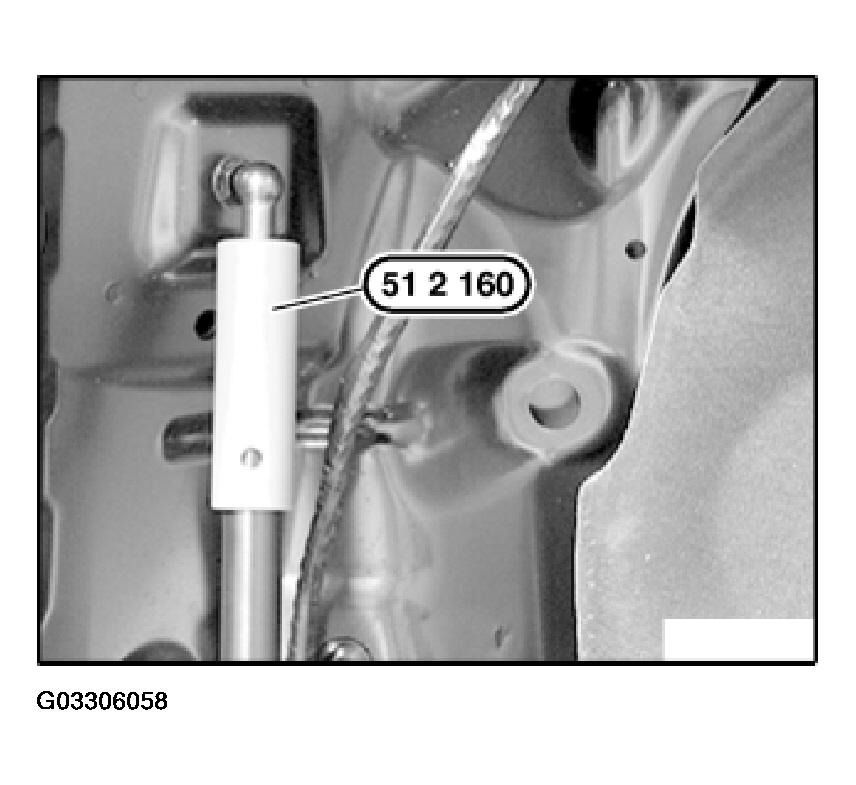

Install special tool 51 2 160.
Reduce excess pressure in cooling system.

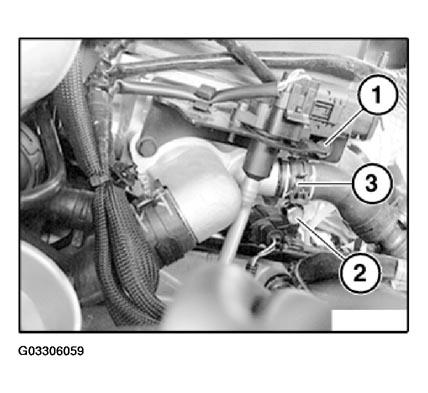

Release screw (1).
Lay bracket for oxygen sensor to one side.
Release screw (2).
Release coolant line clamp (3).

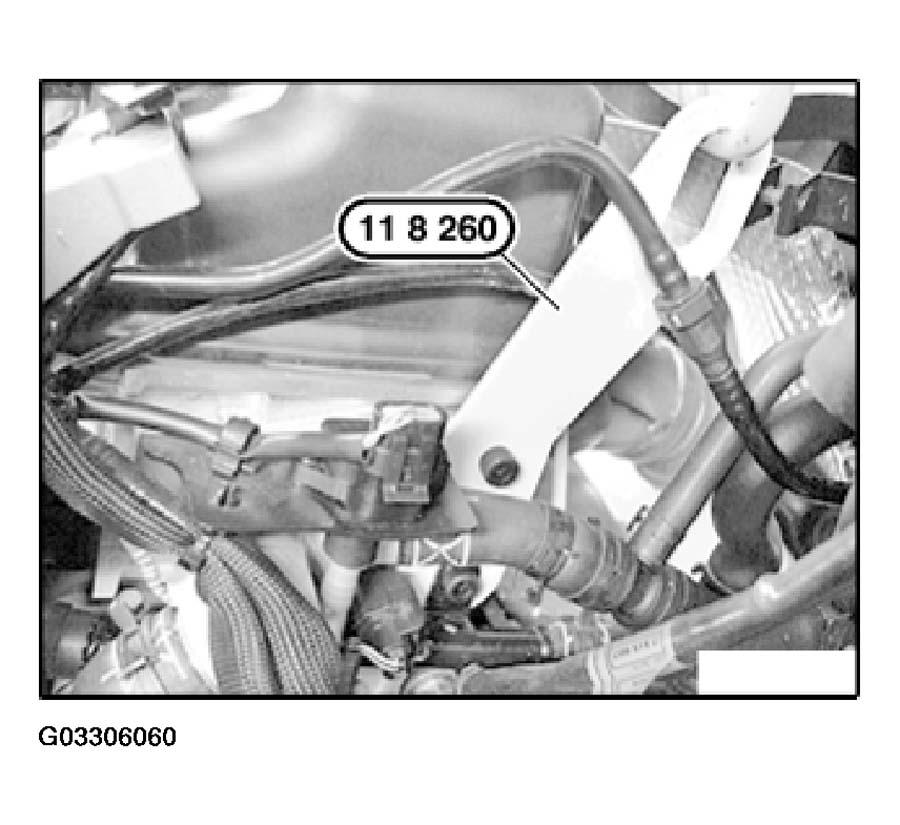

Screw special tool 11 8 260 onto cylinder head.
NOTE:
The water pipe is also secured to special tool 11 8 260 at the same time. See Fig 3.

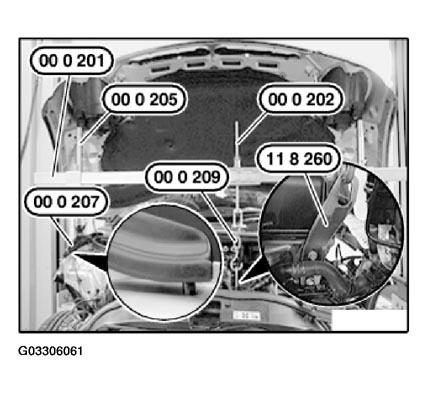

Assemble special tool 00 0 200 with special tools 00 0 201 / 00 0 202 / 00 0 205 / 00 0 207 / 00 0 209 and fit.
NOTE:
Remove plug before fitting special tool.
Risk Of Damage On Both Side Walls.
Assemble engine.
