22 11 100 Replacing right engine mounting bracket (up to 12.03)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove top engine carrier bracket. Refer to 22 11 040 REPLACING UPPER ENGINE CARRIER BRACKET .
- Remove tank venting valve (petrol/gasoline engine up to 12.03 only). Refer to 13 90 500 REPLACING TANK VENTING VALVE .
- Support engine with trolley jack. Place suitable material on trolley jack to protect oil sump against damage.

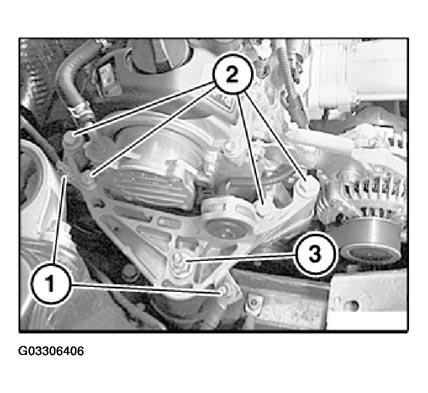

Release nuts (1) and remove grounding strap.
Tightening torque, refer to 22 11 11AZ in ENGINE AND GEARBOX SUSPENSION - TIGHTENING TORQUES .
Release screws (2) and nuts (3).
Tightening torque, refer to 22 11 1AZ/2AZ in ENGINE AND GEARBOX SUSPENSION - TIGHTENING TORQUES .
Remove engine support bracket.
