22 11 060 Removing and installing/replacing engine carrier bracket mount

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove upper engine carrier bracket. Refer to 22 11 040 REPLACING UPPER ENGINE CARRIER BRACKET .

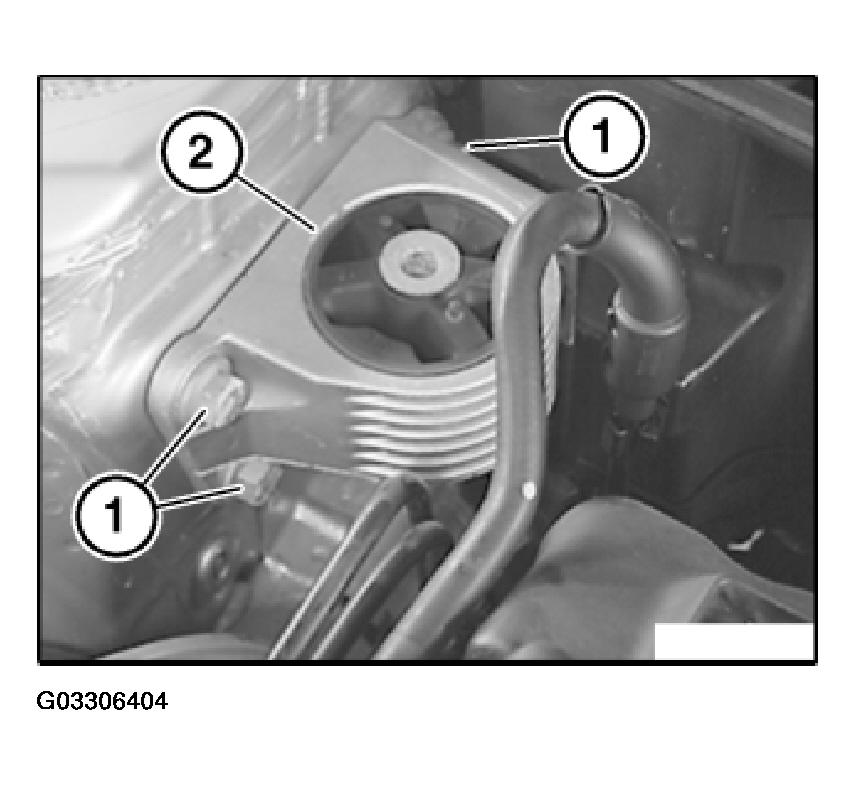

Fig 1: Identifying Engine Carrier Bracket Mount Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws (1).

Remove engine carrier bracket mount (2).

Tightening torque, refer to 22 11 3AZ in ENGINE AND GEARBOX SUSPENSION - TIGHTENING TORQUES .
