22 11 055 Replacing lower engine carrier bracket holder

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove lower engine carrier bracket. Refer to 22 11 045 REPLACING LOWER ENGINE CARRIER BRACKET .

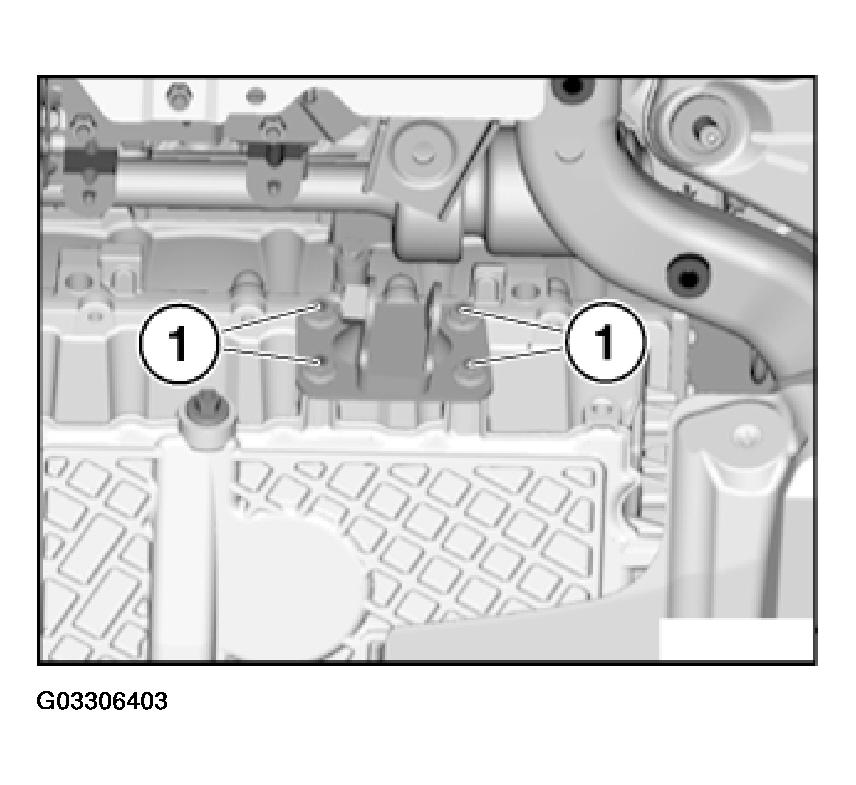

Fig 1: View Of Engine Carrier Bracket Holder Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws.

Tightening torque, refer to 22 11 7AZ in ENGINE AND GEARBOX SUSPENSION - TIGHTENING TORQUES .
