22 11 045 Replacing lower engine carrier bracket

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Support engine with transmission lifter.

Release bolts (1) and remove engine carrier bracket.

Tightening torque, refer to 22 11 8AZ/ 9AZ in ENGINE AND GEARBOX SUSPENSION - TIGHTENING TORQUES .

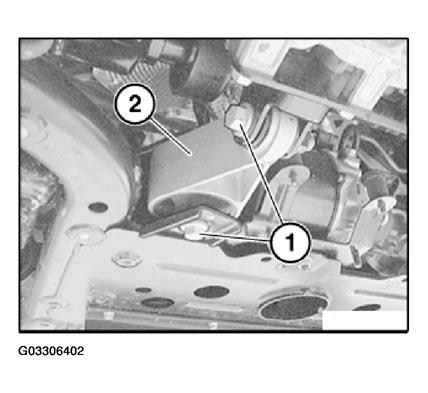

Fig 1: Locating Engine Carrier Bracket Retaining Bolts
G03306402Courtesy of BMW OF NORTH AMERICA, INC.
