18 10 ... Replacing mounting bracket for vibration absorber on exhaust system

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, 2004 MINI Cooper, and 2003 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Only MINI ONE and MINI COOPER up to 10/2001.

Necessary Preliminary Tasks:

Remove reinforcement plate for exhaust system. Refer to 18 21 051 REPLACING ALL EXHAUST SUSPENSION ELEMENTS .
Remove vibration absorber on exhaust system. Refer to 18 10 070 REPLACING VIBRATION ABSORBER ON EXHAUST SYSTEM AT REAR (W10) .

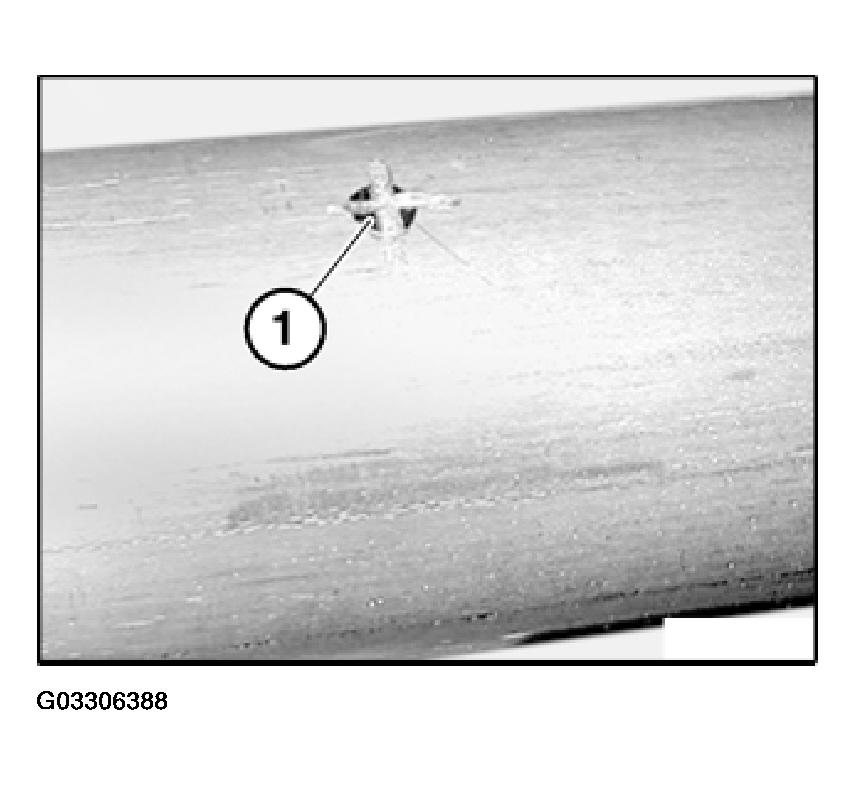

Make a mark (1) on the exhaust system before removing the mounting bracket.

Mount upper bracket.

Fig 1: Identifying Mark On Exhaust System

Courtesy of BMW OF NORTH AMERICA, INC.

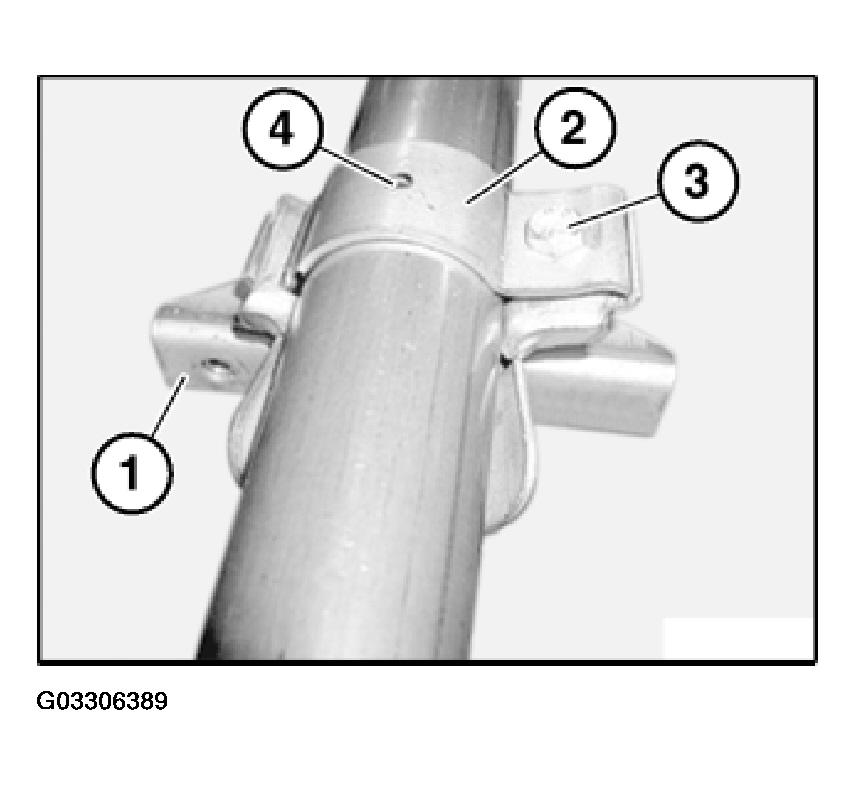

Mount lower bracket (1) on upper bracket (2) and fit screw (3). Align weld hole (4) in upper bracket with mark on exhaust pipe.

Tightening torque, refer to 18 00 6AZ in EXHAUST SYSTEM - TIGHTENING TORQUES - COOPER (1.6L) R50/W10 .

Fig 2: Installing Lower And Upper Brackets

Courtesy of BMW OF NORTH AMERICA, INC.

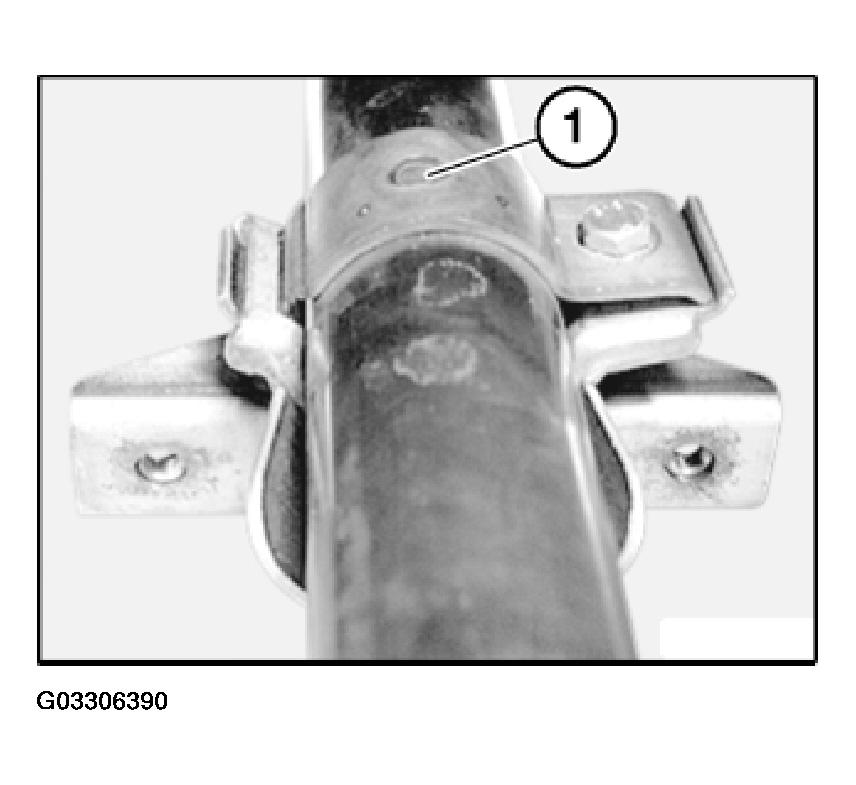

Weld top bracket at point (1).

Fig 3: Identifying Weld Top Bracket At Point

Courtesy of BMW OF NORTH AMERICA, INC.
