18 10 070 Replacing vibration absorber on exhaust system at rear (W10)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, 2004 MINI Cooper, and 2003 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The vibration absorber was fitted only up to September 2001.
WARNING:
Danger of burning and other injuries! These tasks should only be carried out on an exhaust system that has cooled down!
NOTE:

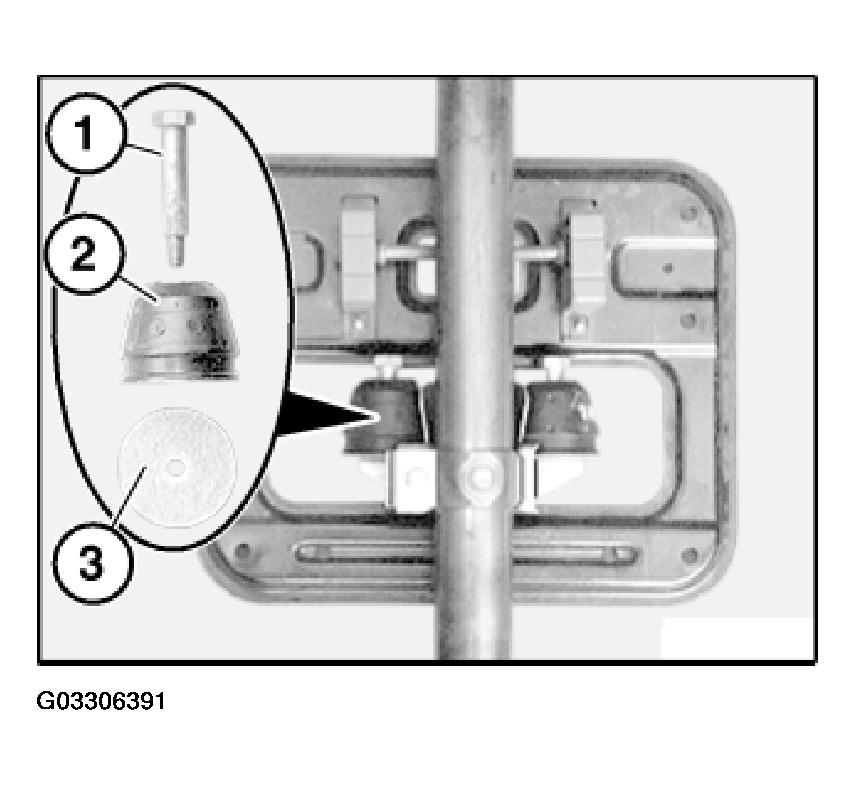

For purposes of clarity, shown here with exhaust system removed.
Release screws (1). Replace vibration absorber (2) and washers (3).
Tightening torque, refer to 18 00 5AZ in EXHAUST SYSTEM - TIGHTENING TORQUES - COOPER (1.6L) R50/W10 .
