17 11 100 Removing and installing/replacing coolant expansion tank
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Follow instructions for working on cooling system. Refer to 17 00 ... FOLLOW INSTRUCTIONS FOR WORKING ON COOLING SYSTEM .
IMPORTANT:
Make sure without fail that coolant hoses are correctly routed, risk of damage by sharp edges or abrasion.

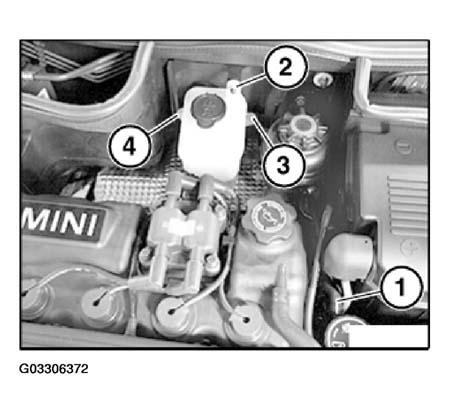

Remove hose from filler neck (1).
Unscrew retaining nut (2) on coolant expansion tank and lift expansion tank out of mountings (3) and (4).
Installation:
Check coolant level. Refer to 17 00 005 DRAINING AND ADDING COOLANT .
Tightening torque, refer to 17 00 2AZ in COOLING SYSTEM - TIGHTENING TORQUES - COOPER .
