17 11 035 Removing and installing/replacing fan cowl with electric fan (W10, W11)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove radiator. Refer to 17 11 000 REMOVING AND INSTALLING RADIATOR .
IMPORTANT:
Make sure without fail that coolant hoses are correctly routed, risk of damage by sharp edges or abrasion.

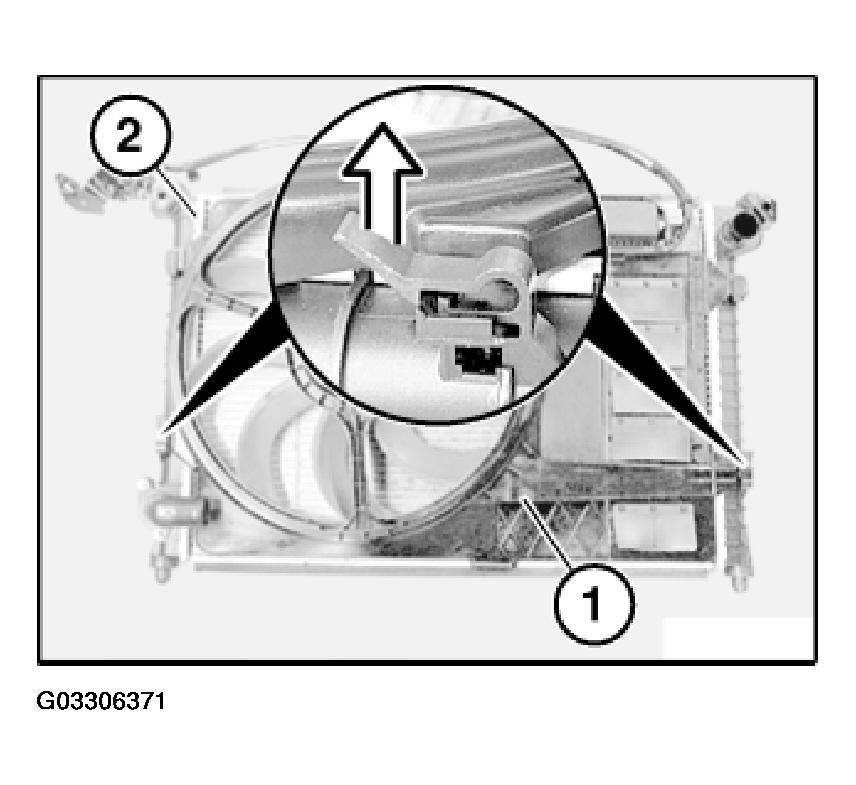

Unclip fan housing (1) on radiator (2) and move upward.
Remove fan cowl with electric fan. Refer to 17 11 035 REMOVING AND INSTALLING/REPLACING FAN COWL WITH ELECTRIC FAN (W10, W11) .
