17 11 000 Removing and installing radiator

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of scalding! Only carry out work on the cooling system after the engine has cooled down!

Necessary Preliminary Tasks:

Switch off ignition.
Drain coolant. Refer to 17 00 005 DRAINING AND ADDING COOLANT .
Remove front carrier. Refer to 51 11 050 REMOVING AND INSTALLING/REPLACING CARRIER FOR FRONT BUMPER TRIM .
Remove oil cooler, if fitted (ECVT only).
Remove upper radiator hose.

IMPORTANT: Make sure without fail that coolant hoses are correctly routed, risk of damage by sharp edges or abrasion.

Remove retaining screws (1) of condenser and lift condenser out of fixture/retaining lug (2).

Work carefully so as not to damage connected lines.

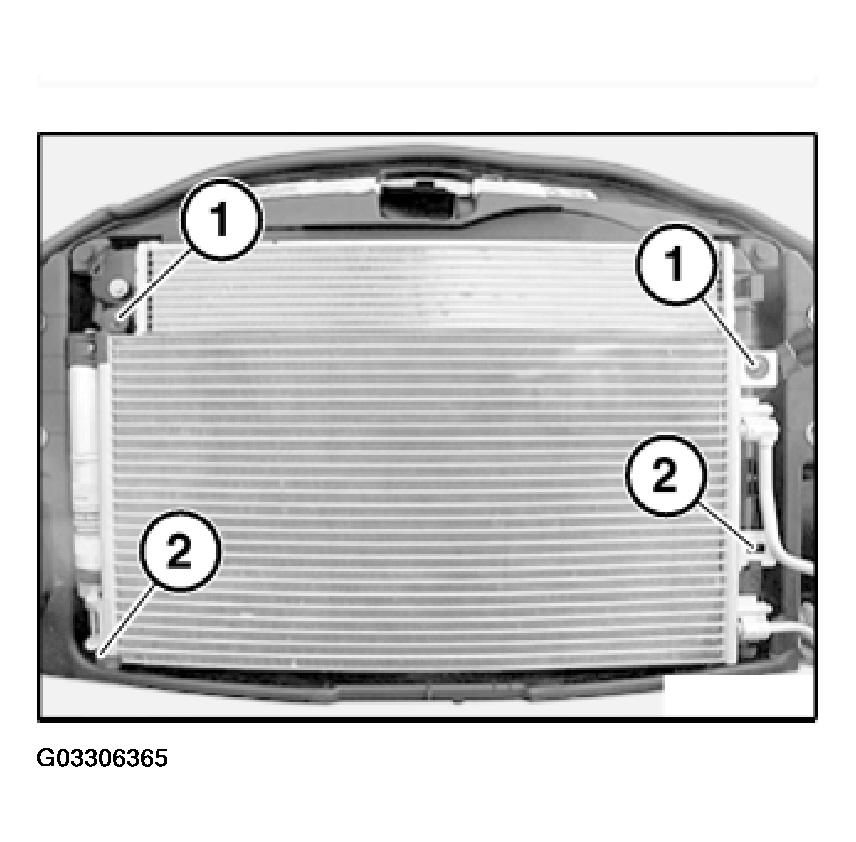

Fig 1: Locating Condenser Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Remove upper radiator hose.

Remove retaining pins (1) of radiator.

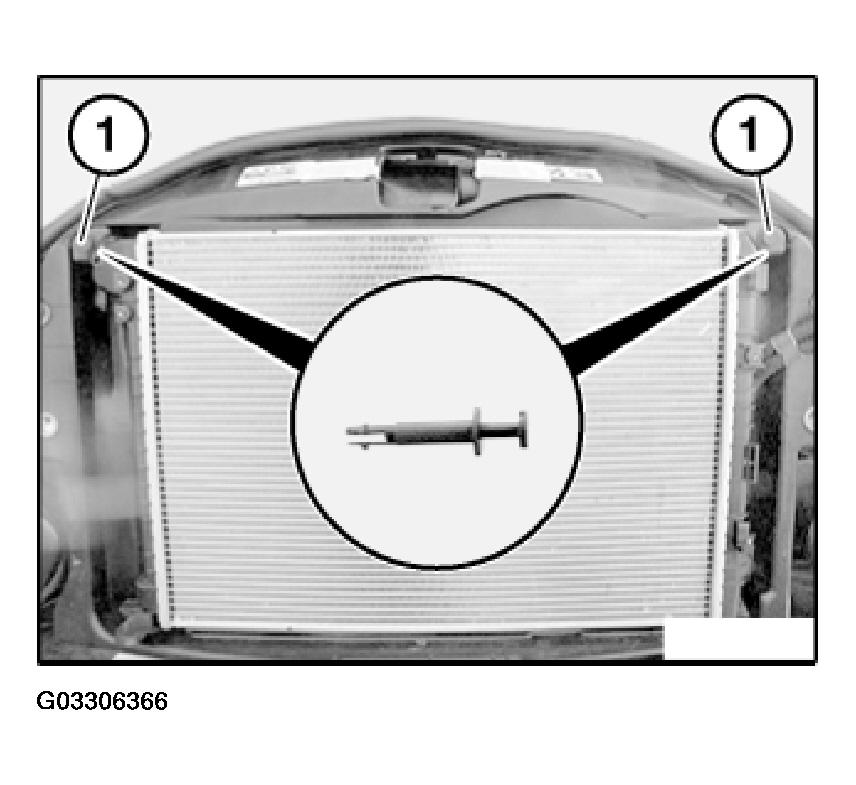

Fig 2: Identifying Retaining Pins Of Radiator

Courtesy of BMW OF NORTH AMERICA, INC.

Tilt upper radiator forwards.

Disconnect wiring harness from fan relay block (1).

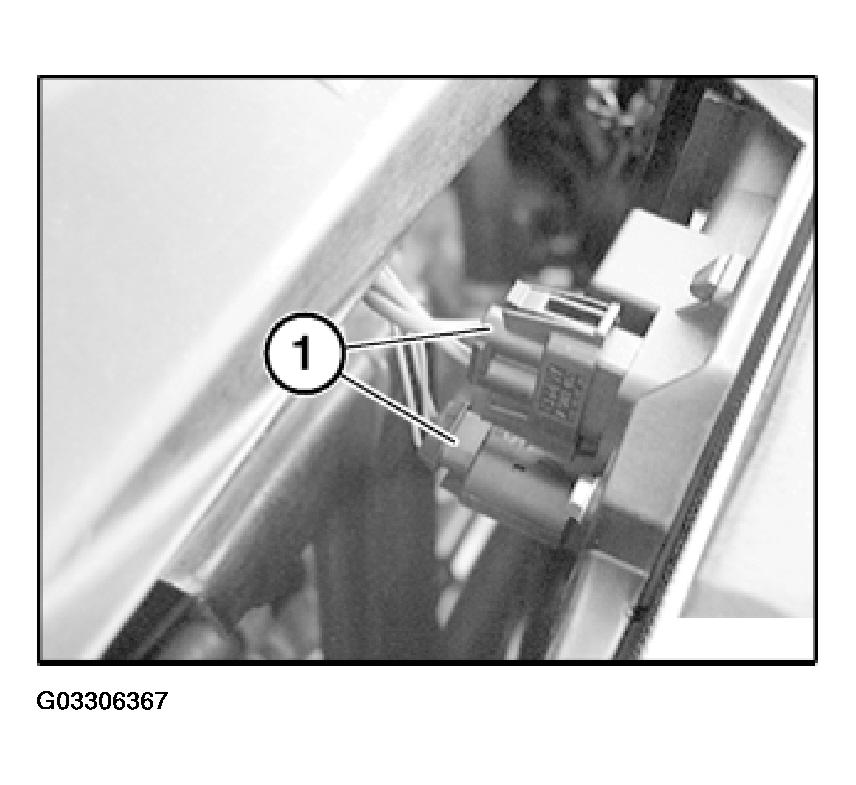

Fig 3: View Of Wiring Harness To Fan Relay Block

Courtesy of BMW OF NORTH AMERICA, INC.

Lift radiator out of lower fixtures (1).

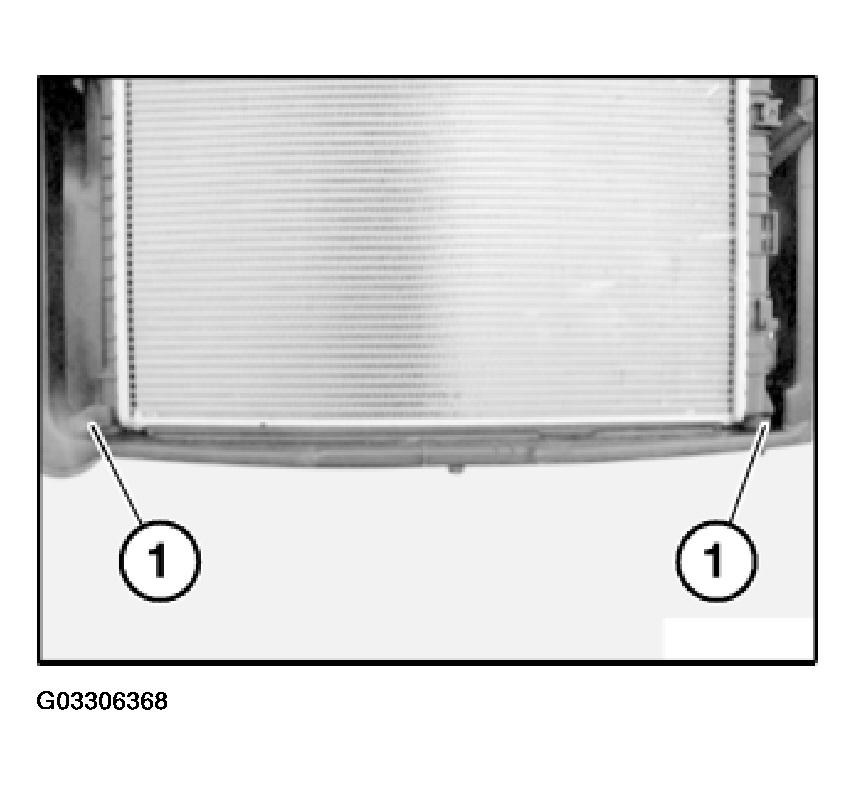

Fig 4: Locating Lower Fixtures

Courtesy of BMW OF NORTH AMERICA, INC.
