17 11 031 Removing and installing/replacing fan cowl

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove fan cowl with electric fan. Refer to 17 11 035 REMOVING AND INSTALLING/REPLACING FAN COWL WITH ELECTRIC FAN (W10, W11) .

IMPORTANT: Make sure without fail that coolant hoses are correctly routed, risk of damage by sharp edges or abrasion.

NOTE: Nut (1) for fan blade has a left-hand thread.

Unscreew nut (1).

Tightening torque, refer to 17 11 1AZ in COOLING SYSTEM - TIGHTENING TORQUES - COOPER .

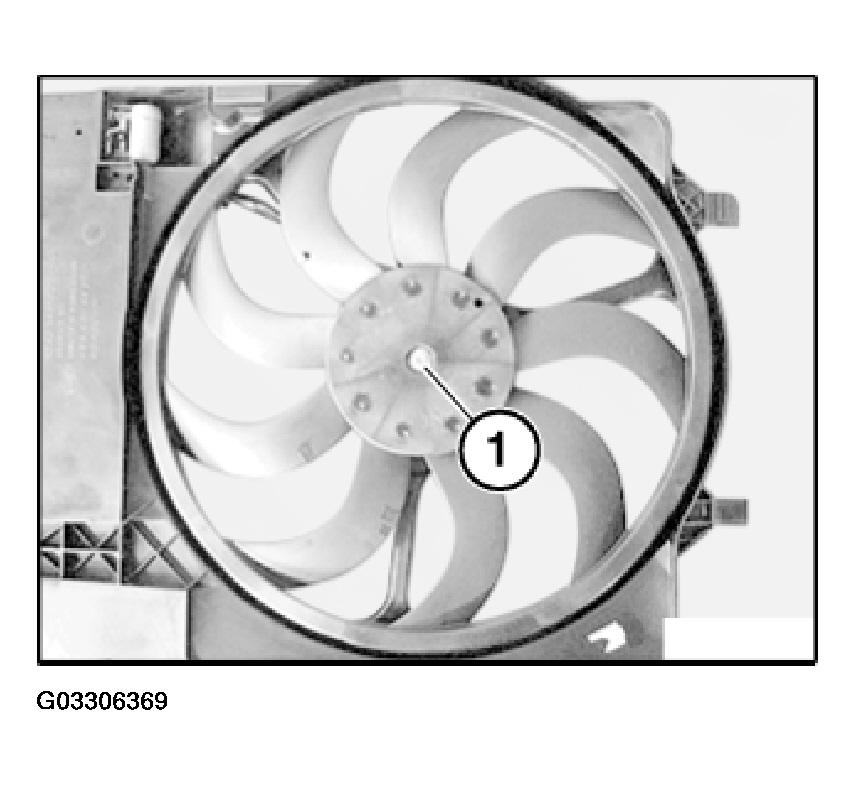

Fig 1: Locating Nut For Fan Blade

Courtesy of BMW OF NORTH AMERICA, INC.

Undo screws (1) for fan motor and screws (2) for series resistor block.

Remove fan motor, series resistor block and fan shroud.

Installation:

Fit wiring loom correctly.

If fitted, do not remove metal tabs (balance weight) on fan wheel (imbalance).

Tightening torque, refer to 17 11 2AZ in COOLING SYSTEM - TIGHTENING TORQUES - COOPER .

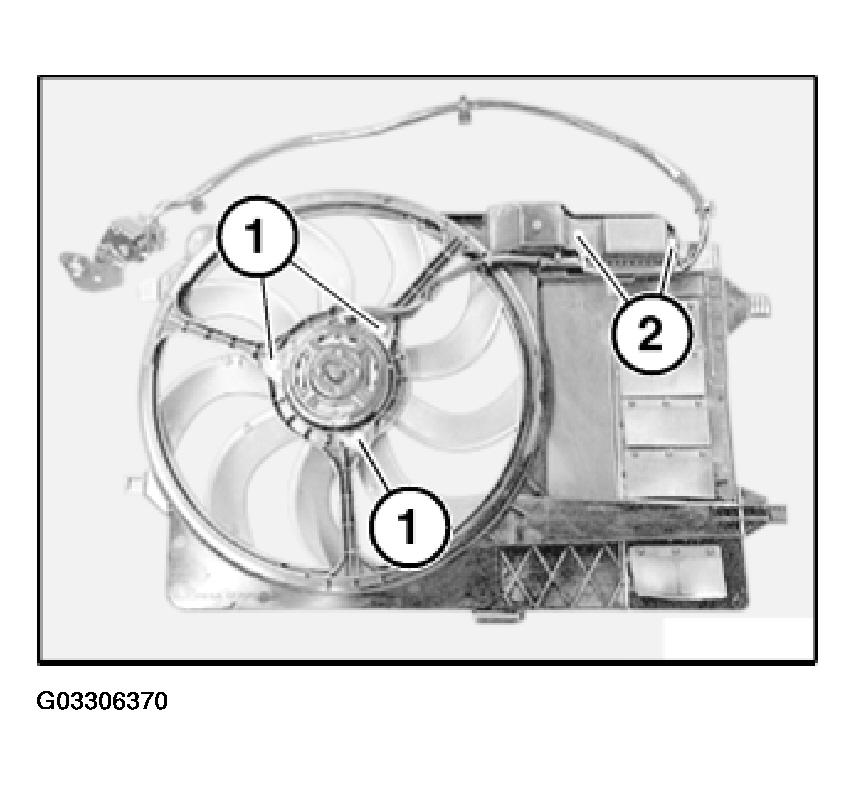

Fig 2: Identifying Fan Motor Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.
