13 51 630 Replacing fuel pressure regulator

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Switch off ignition.
Check fuel pump delivery pressure. Refer to 13 31 029 CHECKING FUEL PUMP DELIVERY PRESSURE .
Remove injection pipe. Refer to 13 64 541 REPLACING ALL FUEL INJECTORS .

Remove retaining clip (1) of pressure regulator.

Turn pressure regulator (2) and remove.

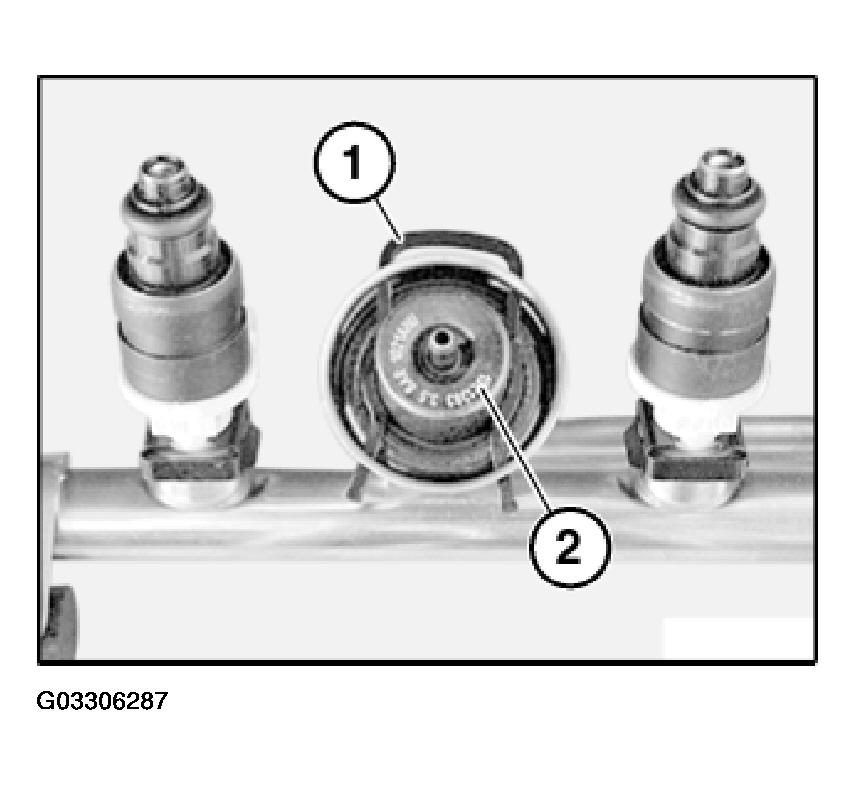

Fig 1: Removing Retaining Clip And Pressure Regulator

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: After removing pressure regulator, make sure filter of regulator is not left behind in housing.

Installation:

Replace sealing rings (1) and (2) of pressure regulator.

Check whether filter (3) is fitted.

Oil sealing rings slightly to facilitate installation.

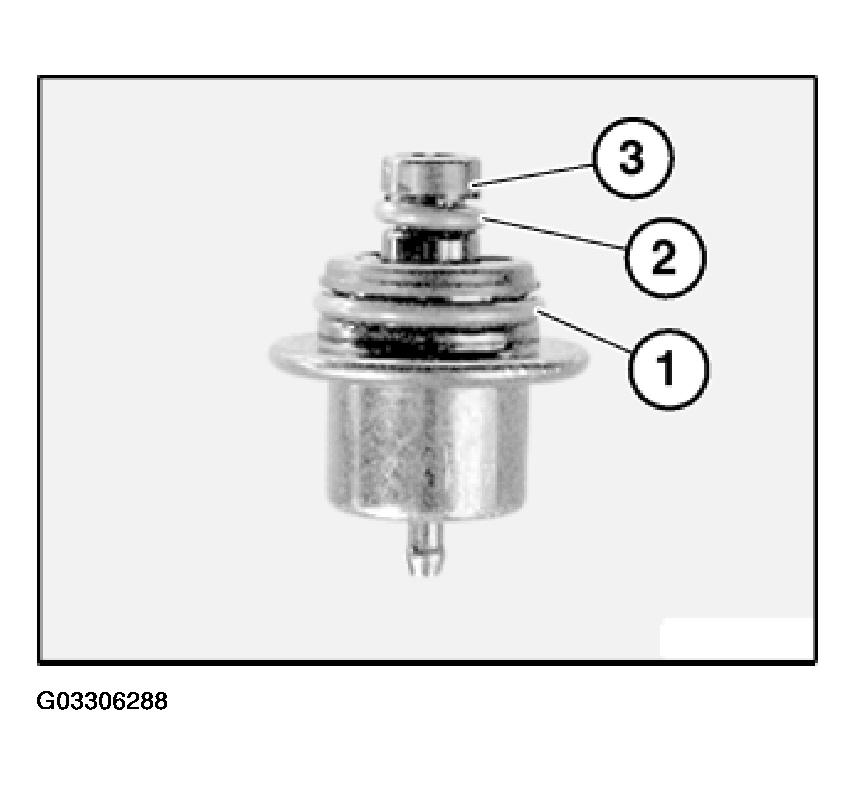

Fig 2: Installing Sealing Rings And Of Pressure Regulator

Courtesy of BMW OF NORTH AMERICA, INC.
