13 31 029 Checking fuel pump delivery pressure

Special Tools Required:

• 13 1 130
• 13 3 063
• 13 5 220
• 13 5 221
• 13 5 222

Necessary Preliminary Tasks:

• Switch off ignition.

Recycling:

Catch and dispose of escaping fuel.

Observe country-specific waste-disposal regulations.

Checking fuel pressure with diagnosis system:

Connect special tools 13 1 130 and 13 5 222 to pressure sensor of diagnosis system.

Checking fuel pressure with pressure gauge:

Attach special tools 13 3 063 and 13 1 130.

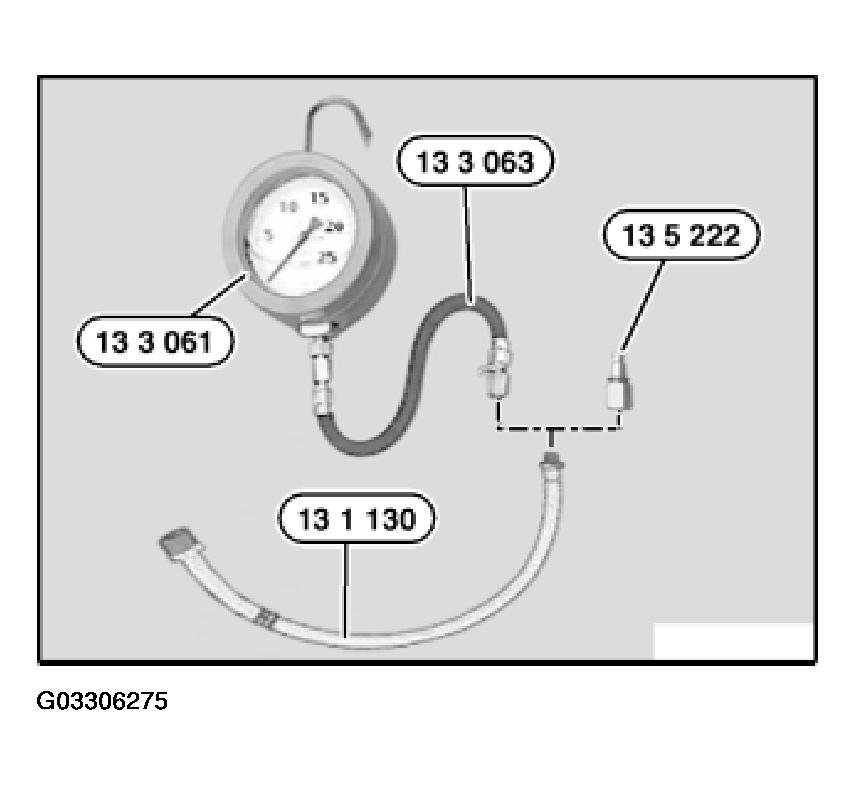

Fig 1: Identifying Pressure Gauge And Adapters

Courtesy of BMW OF NORTH AMERICA, INC.

Remove cover from injection pipe.

Remove dust cap (1) from measuring valve on injection pipe.

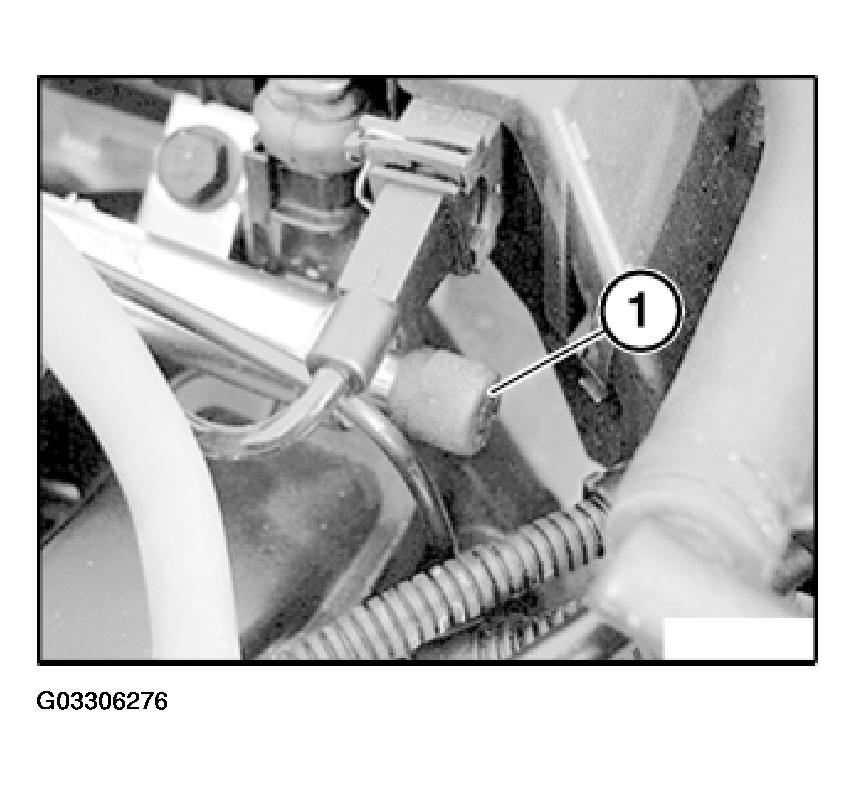

Fig 2: Removing Measuring Valve Dust Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Prepare special tool kit 13 5 220 (consisting of 13 5 221 and 13 5 222).

Connect special tool kit 13 5 220 to pressure sensor of diagnosis system.

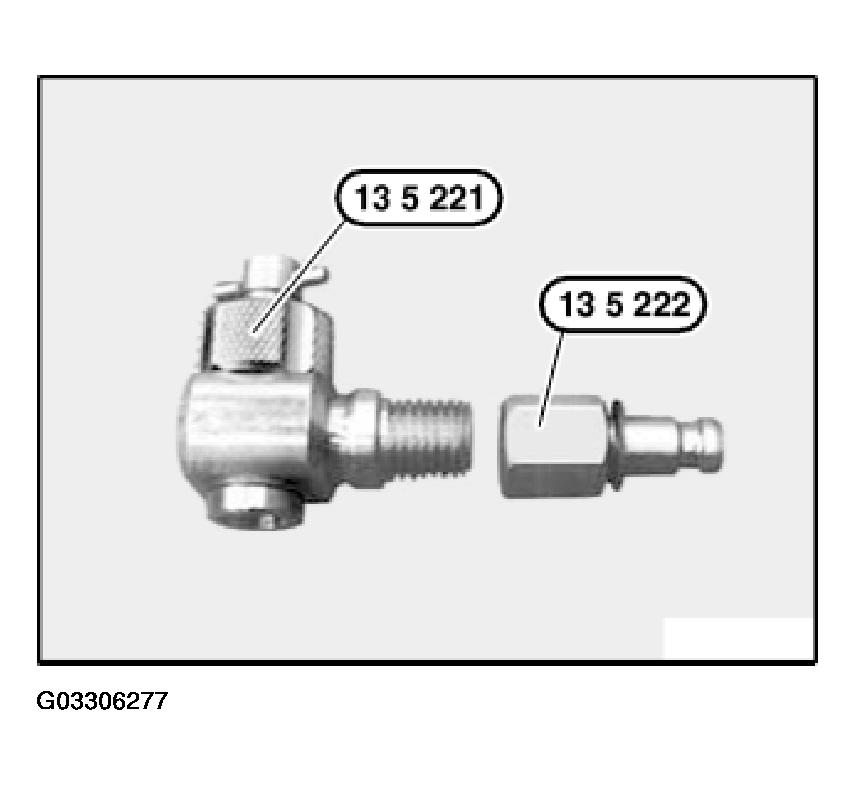

Fig 3: Identifying Adapter And Non-Return Valve

Courtesy of BMW OF NORTH AMERICA, INC.

Screw non-return valve (1) onto special tool so that valve remains closed in injection pipe.

Screw special tool kit 13 5 220 onto injection pipe so that sealing ring is sealed in special tool.

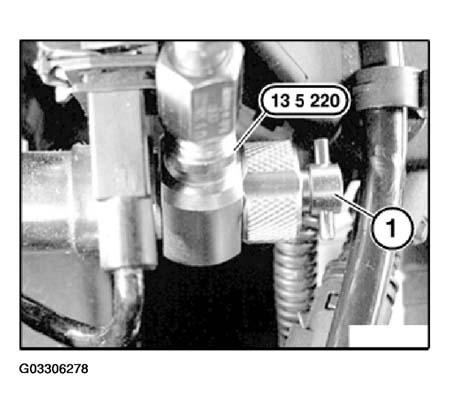

Fig 4: Locating Special Tool Kit 13 5 220 In Injection Pipe

Courtesy of BMW OF NORTH AMERICA, INC.

Start engine.

Screw in non-return valve (1) of special tool kit 13 5 220 until pressure indication appears in diagnosis system.

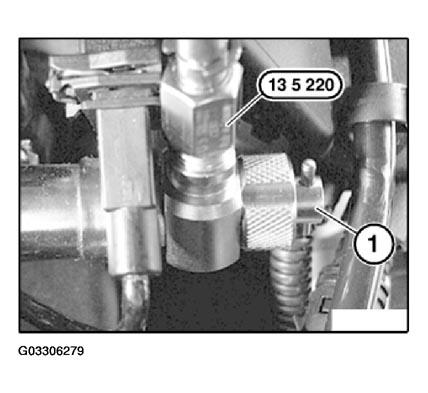

Fig 5: View Of Non-Return Valve

Courtesy of BMW OF NORTH AMERICA, INC.

This could damage the measuring valve in the injection pipe.

Measuring Fuel Pressure:

Start engine.

Check fuel delivery pressure. Refer to FUEL SYSTEM - TECHNICAL DATA - COOPER (1.6L) R50/W10 .

Switch off engine.

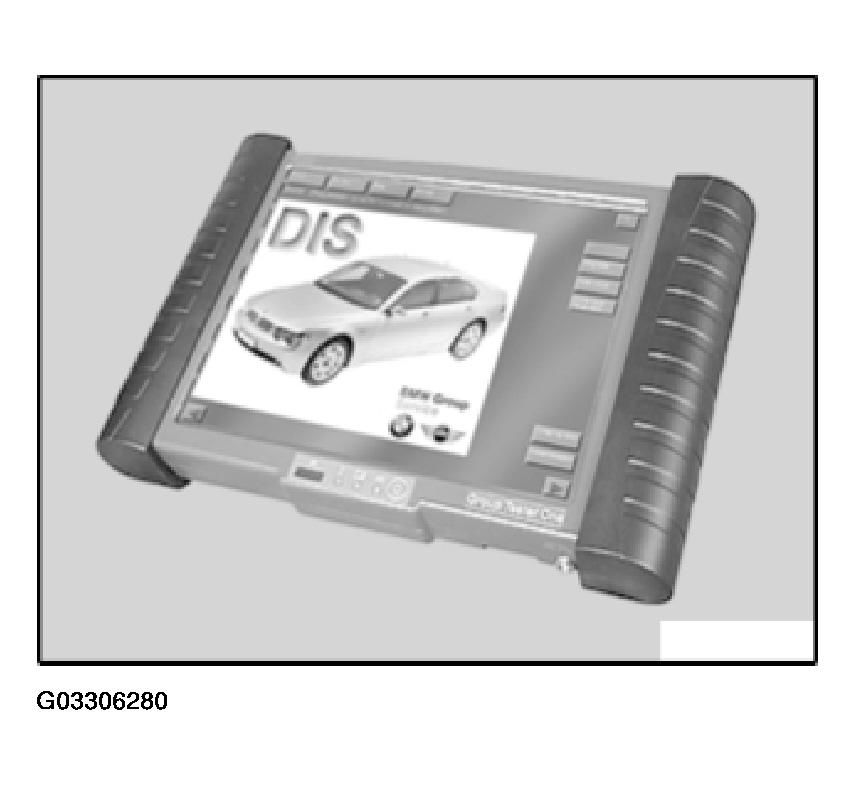

Fig 6: Checking Fuel Delivery Pressure

Courtesy of BMW OF NORTH AMERICA, INC.
