12 41 020 Removing and installing/replacing starter motor

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Switch off ignition.
Disconnect battery. Refer to 12 00 DISCONNECTING AND CONNECTING BATTERY .
Remove exhaust manifold. Refer to 11 62 000 REMOVING AND INSTALLING, SEALING/REPLACING EXHAUST MANIFOLD .

Unscrew bolt (1).

Release retaining clip (2).

Remove heat shield.

Tightening torque, refer to 12 41 1AZ in ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES - COOPER (1.6L) R50/W10 .

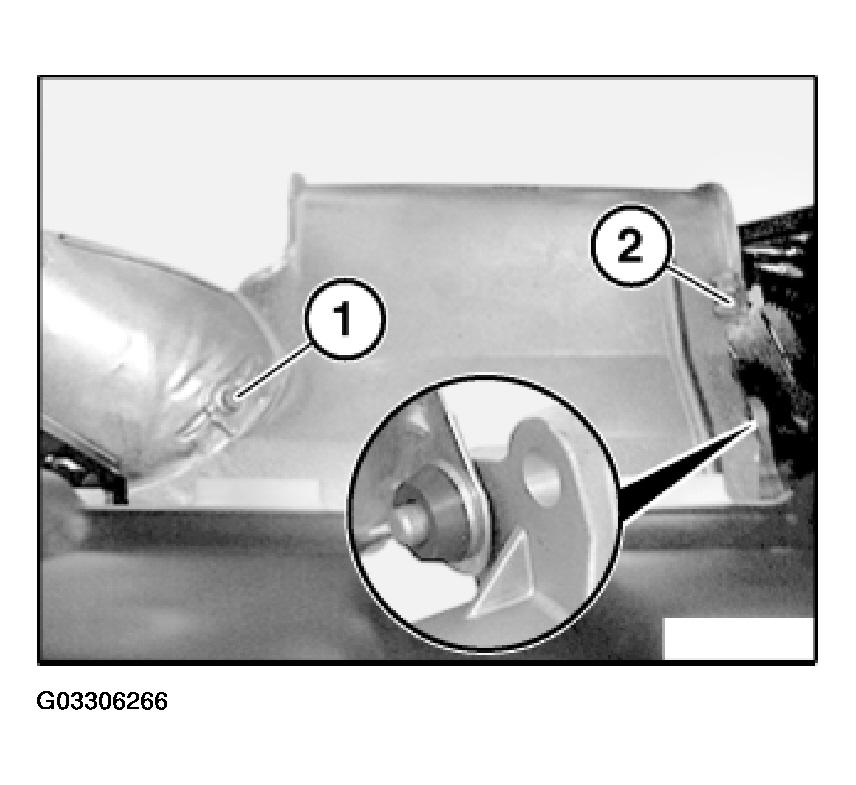

Fig 1: Releasing Retaining Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect battery positive lead (1).

Tightening torque, refer to 12 41 2AZ in ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES - COOPER (1.6L) R50/W10 .

Unscrew nut (2).

Tightening torque, refer to 12 41 3AZ in ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES - COOPER (1.6L) R50/W10 .

NOTE: Pay attention to cable routing. (Do not lay cable over solenoid switch.)

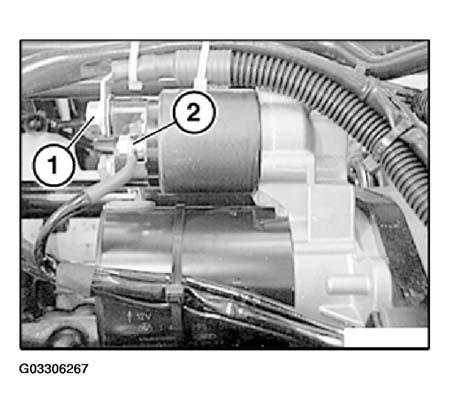

Fig 2: Disconnecting Battery Positive Lead

Courtesy of BMW OF NORTH AMERICA, INC.
