11 53 000 Removing and installing/replacing coolant thermostat (W10)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of scalding! Only perform this task on an engine that has cooled down.

Necessary Preliminary Tasks:

Remove air cleaner housing.
Remove battery container. Refer to 61 21 100 REMOVING AND INSTALLING/REPLACING BATTERY CONTAINER .
Drain coolant. Refer to 17 00 005 DRAINING AND ADDING COOLANT .

Recycling: Catch and dispose of coolant in a suitable container. Observe country-specific waste-disposal regulations.

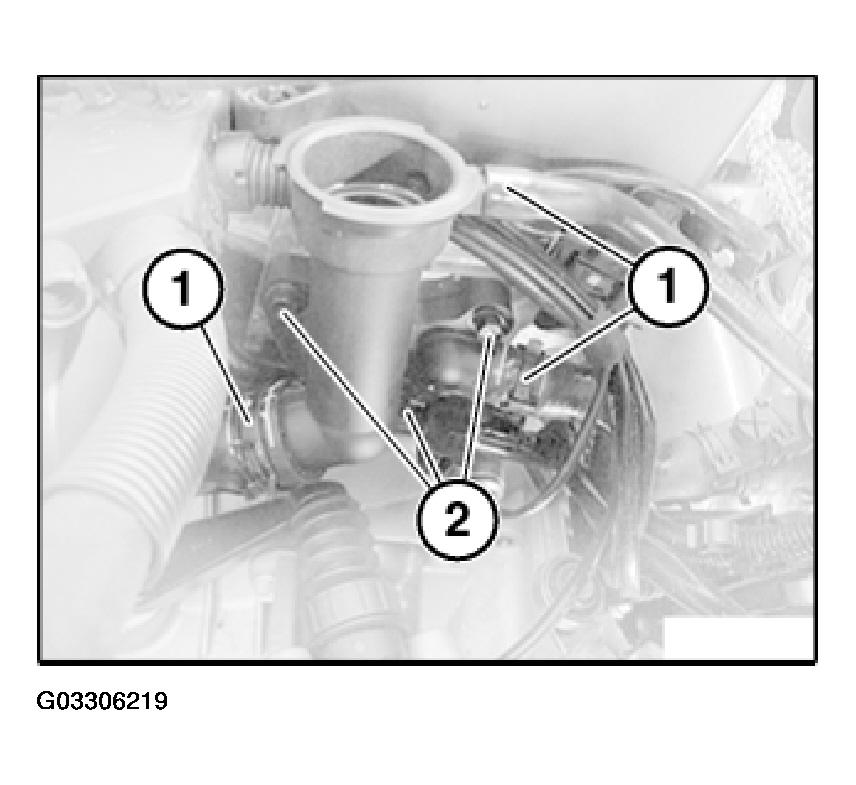

Detach coolant hoses from thermostat housing (1).

Undo screws (2) on thermostat housing.

Remove thermostat housing.

Remove thermostat and seal from housing.

Fig 1: Locating Thermostat Housing Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation Note:

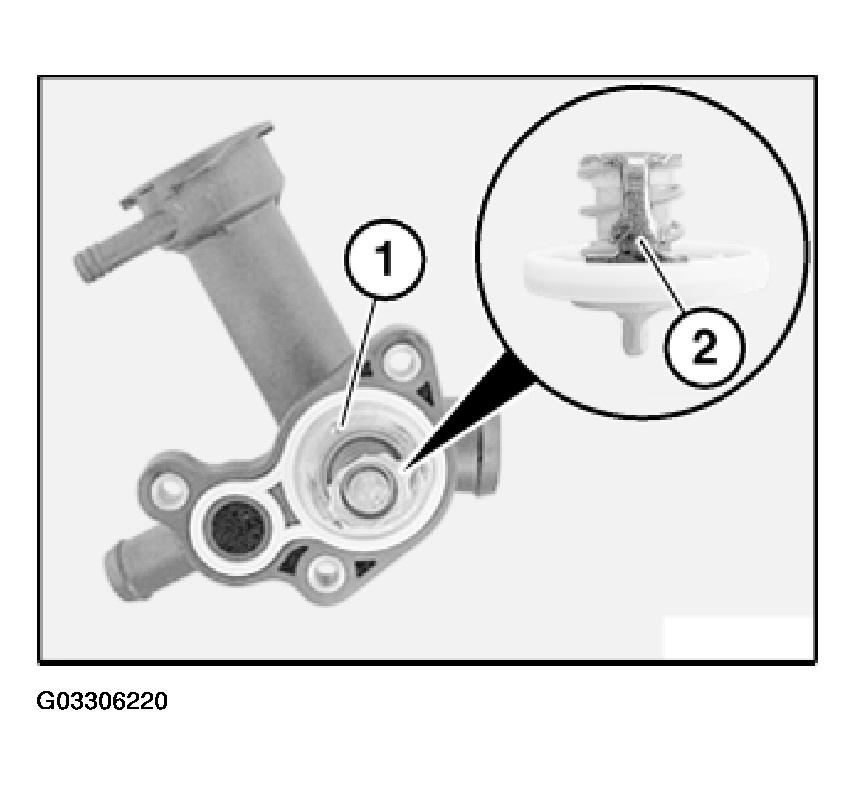

Note installation position of bleeder pin (1).

Fig 2: Checking Installation Position Of Bleeder Pin

Courtesy of BMW OF NORTH AMERICA, INC.

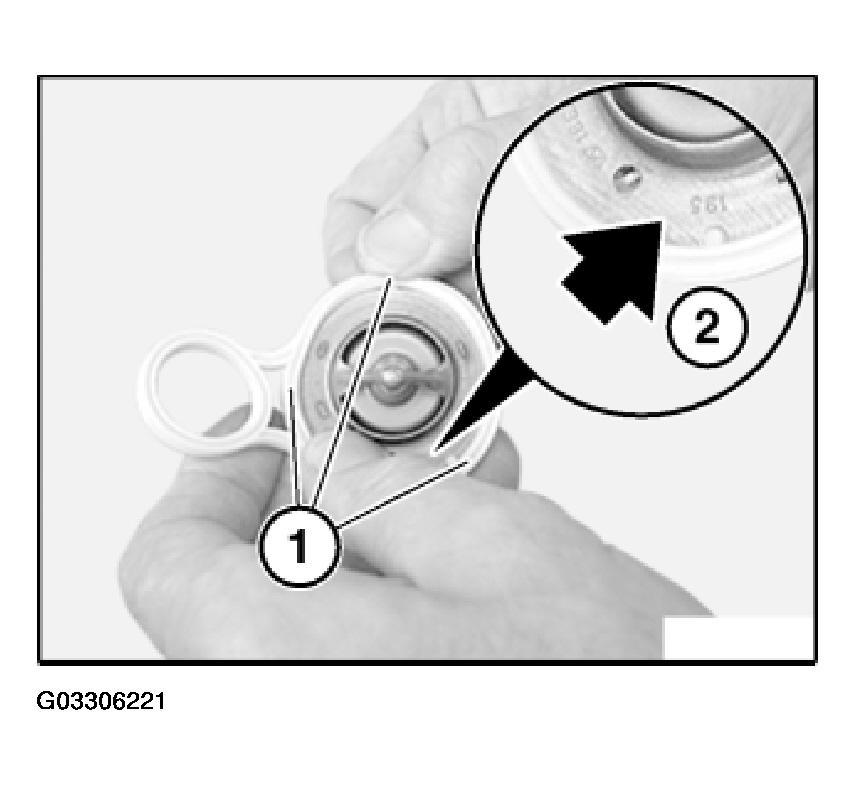

Replace seal and thermostat if necessary.

Guides - thermostat/seal.
Basic position of thermostat/seal guide.

Tightening torque, refer to 11 12 2AZ in ENGINE - TIGHTENING TORQUES- COOPER (1.6L) R50/W10 .

Fig 3: Replacing Seal And Thermostat

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Fill cooling system. Refer to 17 00 039 BLEEDING COOLING SYSTEM AND CHECKING FOR WATER LEAKS .

Check cooling system for leaks and correct operation. Refer to 17 00 009 CHECKING COOLING SYSTEM FOR LEAKS (W10) .
