17 00 009 Checking cooling system for leaks (W10)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For Special Tool identification, see COOLING SYSTEM - SPECIAL TOOLS - COOPER .
Special Tools Required:
- 17 0 001
- 17 0 002
- 17 0 009
WARNING:
Risk of burning and scalding! Only perform this work after engine has cooled down.
Checking Pressure Drop In Cooling System:
Unscrew cap from filler neck.

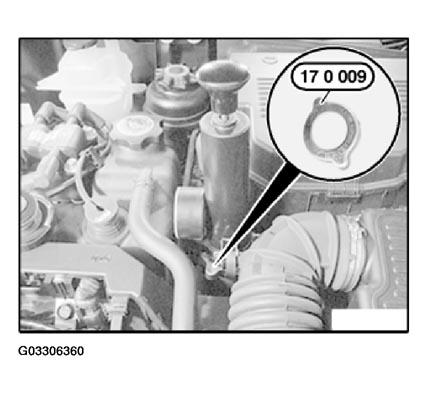

Connect special tool 17 0 009 to filler neck. Connect special tool 17 0 002.
Pressurize cooling system to 1.5 bar and wait approx. 2 minutes.
Cooling system is tight if pressure drop does not exceed 0.1 bar.
Checking Pressure Relief Valve In Cap:

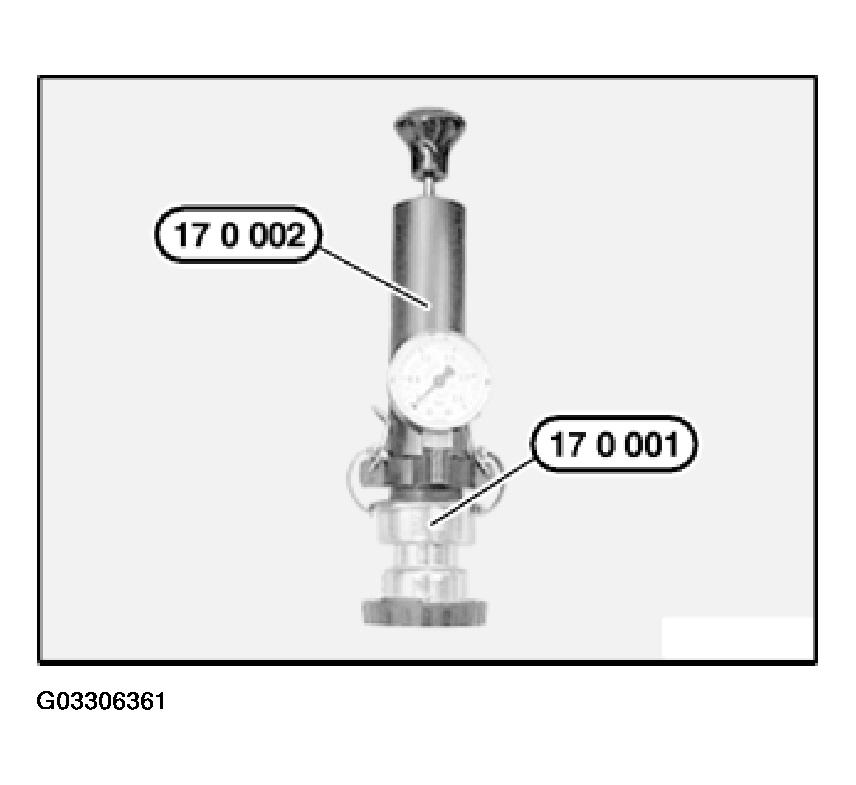

Connect special tools 17 0 001 and 17 0 002 to cap.
Pressurize cap.
Opening gauge pressure must be 0.95 - 1.24 bar.
