11 33 020 Removing and installing or replacing rocker arm shaft

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect battery. Refer to 12 00 DISCONNECTING AND CONNECTING BATTERY .

Remove cylinder head cover. Refer to 11 12 000 REMOVING AND INSTALLING/SEALING CYLINDER HEAD COVER (W10) .

Remove screws from rocker arm shaft or camshaft bearing cap in sequence (10-1).

Installation:

Tighten down screws from rocker arm shaft or camshaft bearing cap in sequence (1-10).

Step 1: Tighten uniformly hand-tight.

Step 2: Tightening torque, refer to 11 33 1AZ in ENGINE - TIGHTENING TORQUES- COOPER (1.6L) R50/W10 .

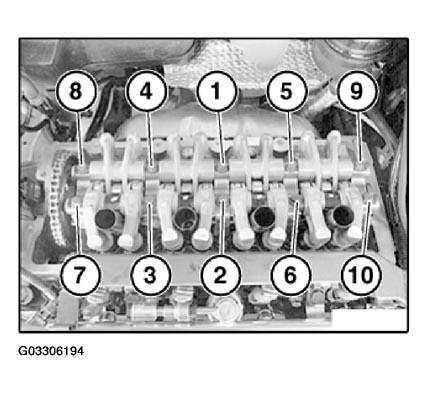

Fig 1: Identifying Tightening Sequence Of Rocker Arm Shaft Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: To avoid damaging the rocker arm shafts, it is necessary to release the screws from the rocker arm shaft or camshaft bearing cap in sequence and by one turn in each case.

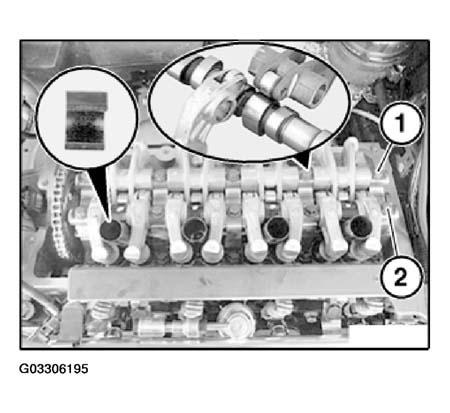

Remove exhaust rocker arm shaft (1) and inlet rocker arm shaft (2).

Detach rocker arm spacer.

Remove rocker arm from shaft.

Fig 2: Removing Exhaust Rocker Arm Shaft And Inlet Rocker Arm Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Lubricate rolling area or rocker arm and shaft with clean engine oil. Hydraulic valve tappets are replaced together with rocker arms. When tightening the rocker arm/camshaft bearing cap screws, make sure the bearing caps are correctly seated and the rocker arms are in the correct installation position.

CAUTION: The inlet and exhaust rocker arm shafts are not interchangeable.

Inlet rocker arm shaft.
Exhaust rocker arm shaft.

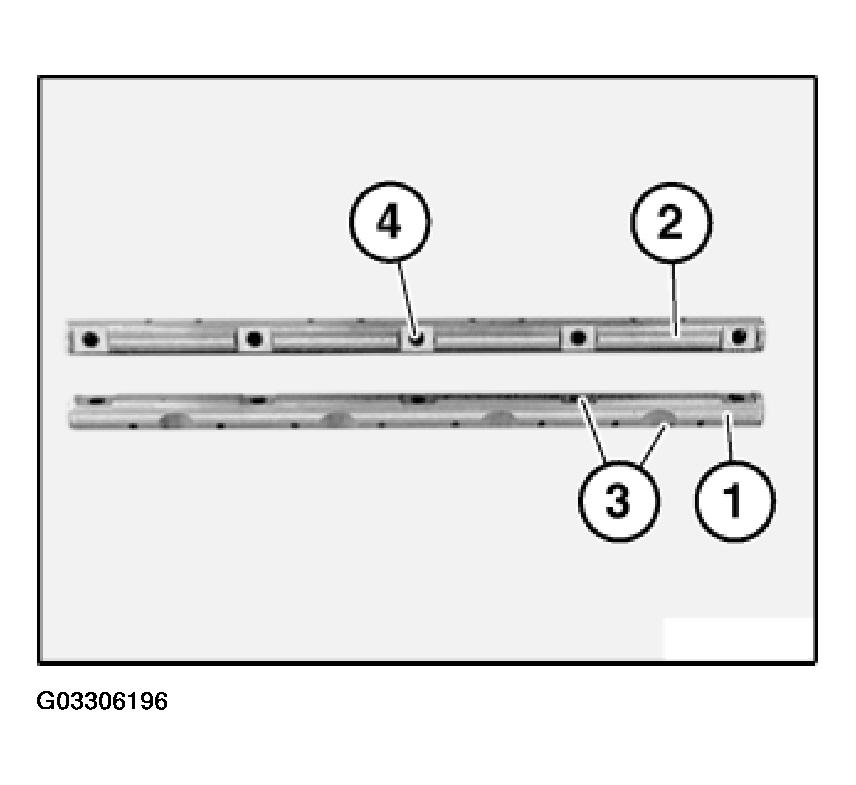

Groove for identifying inlet rocker arm shaft (4) Groove for identifying exhaust rocker arm shaft.

Fig 3: Identifying Grooves Of Inlet And Exhaust Rocker Arm Shafts
Courtesy of BMW OF NORTH AMERICA, INC.
