11 12 000 Removing and installing/sealing cylinder head cover (W10)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove ignition coil block. Refer to 12 13 513 REPLACING IGNITION COIL .
Remove connector strip for fuel injectors.

Remove hose (1).

Detach crankcase breather valve (2).

Detach plug connector from ignition coil block (3).

Detach spark plug connectors (4).

Remove wiring harness retaining clips from valve cover screws.

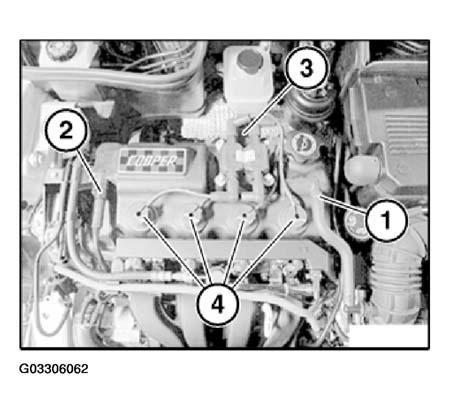

Fig 1: Detaching Plug Connector From Ignition Coil Block

G03306062

Courtesy of BMW OF NORTH AMERICA, INC.

Remove valve cover screws.

Remove cylinder head cover. Refer to 11 12 000 REMOVING AND INSTALLING/SEALING CYLINDER HEAD COVER (W10) .

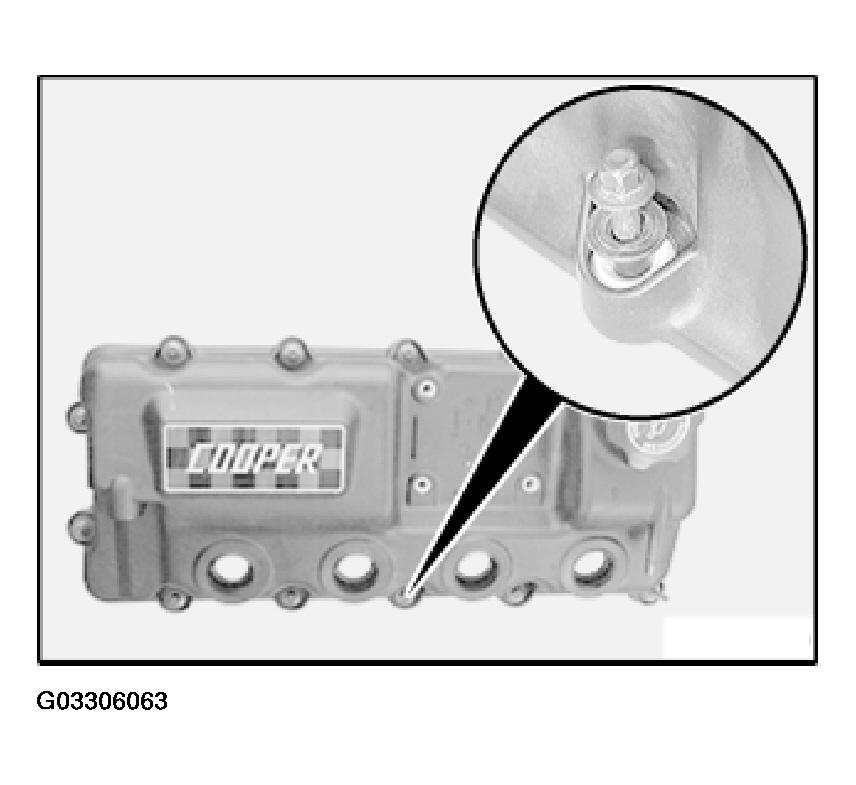

Fig 2: Removing Valve Cover Screws

G03306063

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check valve cover seal, replace if necessary.

Remove retaining screws from cylinder head cover.

Check rubber elements, replace if necessary.

Clean mating surfaces with suitable materials.

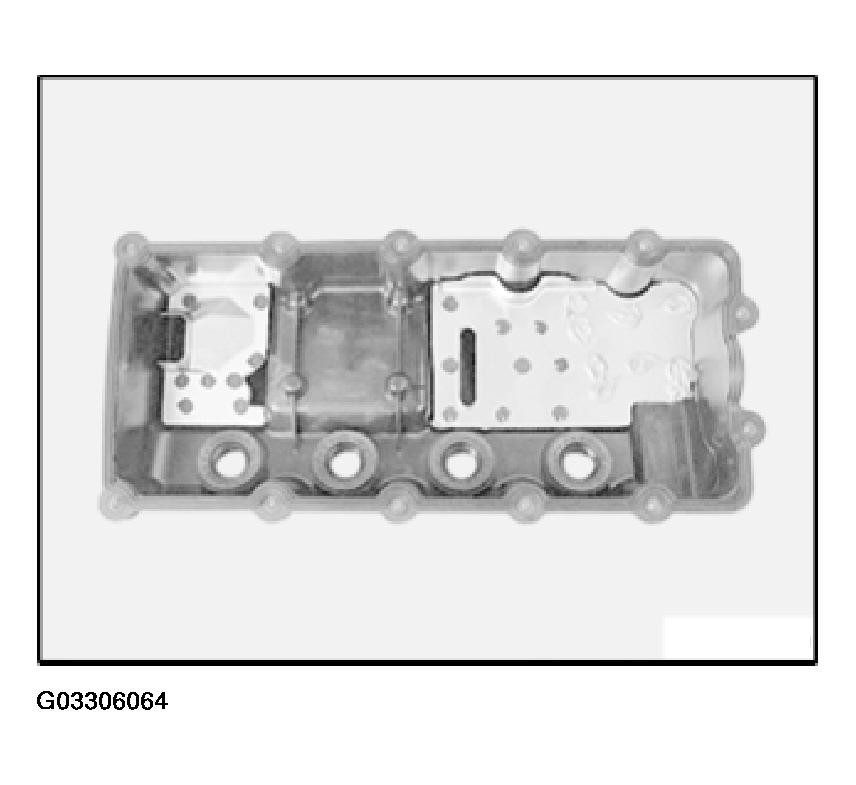

Fig 3: Removing Retaining Screws From Cylinder Head Cover

G03306064

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tighten down bolts in sequence 1 to 12.

Tightening torque, refer to 11 12 1AZ in ENGINE - TIGHTENING TORQUES- COOPER (1.6L) R50/W10 .

IMPORTANT: Tighten down cylinder head cover in two operations.

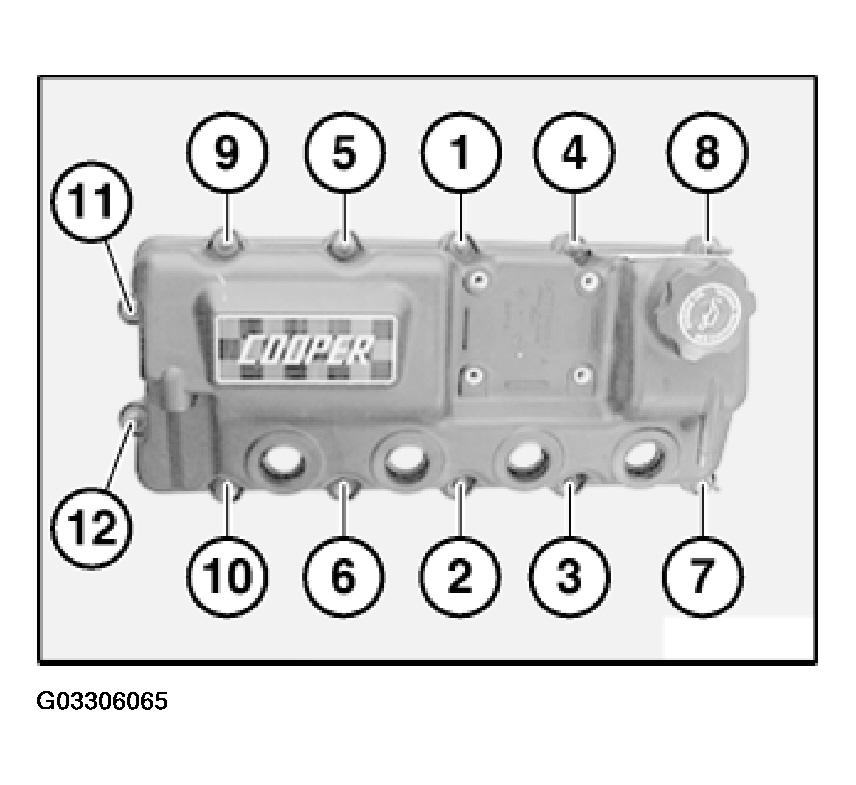

Fig 4: Identifying Tightening Sequence Of Cylinder Head Cover Bolts

G03306065

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
