11 14 151 Replacing crankshaft radial seal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see ENGINE - SPECIAL TOOLS - COOPER (1.6L) R50/W10 and MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS - COOPER (1.6L) R50/W10 .

Special Tools Required:

00 5 500
11 8 220
11 8 230
23 0 490

Remove transmission. Refer to REMOVAL & INSTALLATION - AUTOMATIC TRANSMISSION .

Remove flywheel. Refer to 11 22 500 REMOVING AND INSTALLING OR REPLACING FLYWHEEL .

Remove radial shaft seal with special tool 23 0 490.

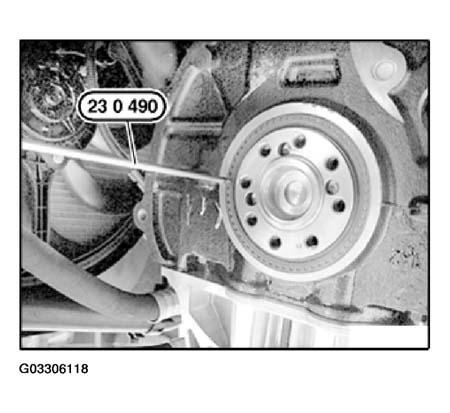

Fig 1: Removing Radial Shaft Seal With Special Tool 23 0 490

G03306118

Courtesy of BMW OF NORTH AMERICA, INC.

Clean surfaces of cylinder block and crankshaft seal.

Installation:

Fit special tool 11 8 220 on crankshaft.

Push radial shaft seal onto special tool 11 8 220.

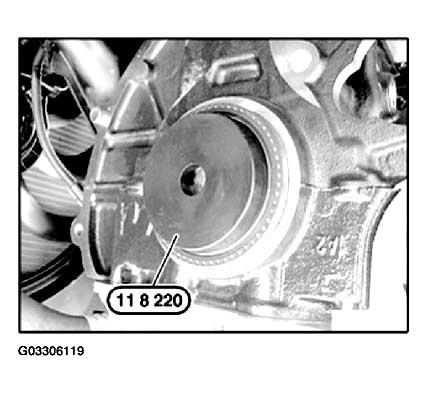

Fig 2: Fitting Special Tool 11 8 220 On Crankshaft

G03306119

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install radial shaft seal with special tool 00 5 500 in conjunction with special tool 11 8 230 in cylinder block.

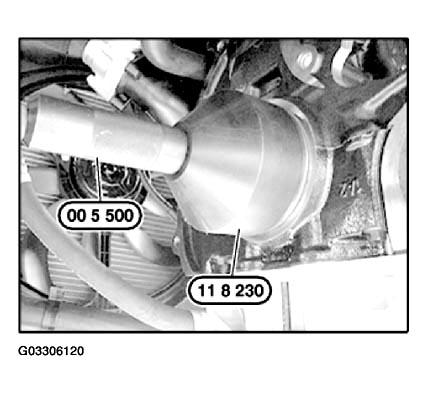

Fig 3: Installing Radial Shaft Seal

G03306120

Courtesy of BMW OF NORTH AMERICA, INC.

Make sure radial shaft seal is flush with cylinder block.

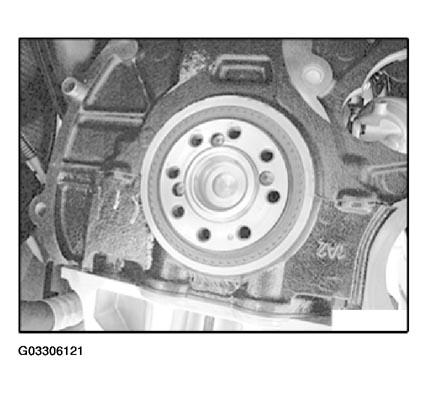

Fig 4: View Of Radial Shaft Seal

G03306121

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: The sealing lip is highly sensitive and must not under any circumstances be torn or kinked. Do not touch the sealing lip with your fingers.
