11 22 500 Removing and installing or replacing flywheel

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see ENGINE- SPECIAL TOOLS - COOPER (1.6L) R50/W10 and ENGINE ELECTRICAL SYSTEM - SPECIAL TOOLS - COOPER (1.6L) R50/W10 .

Special Tools Required:

11 8 320
12 2 150

Remove clutch. Refer to CLUTCH .

Use special tool 12 2 150 and special tool 11 8 320 to hold crankcase vibration damper in position.

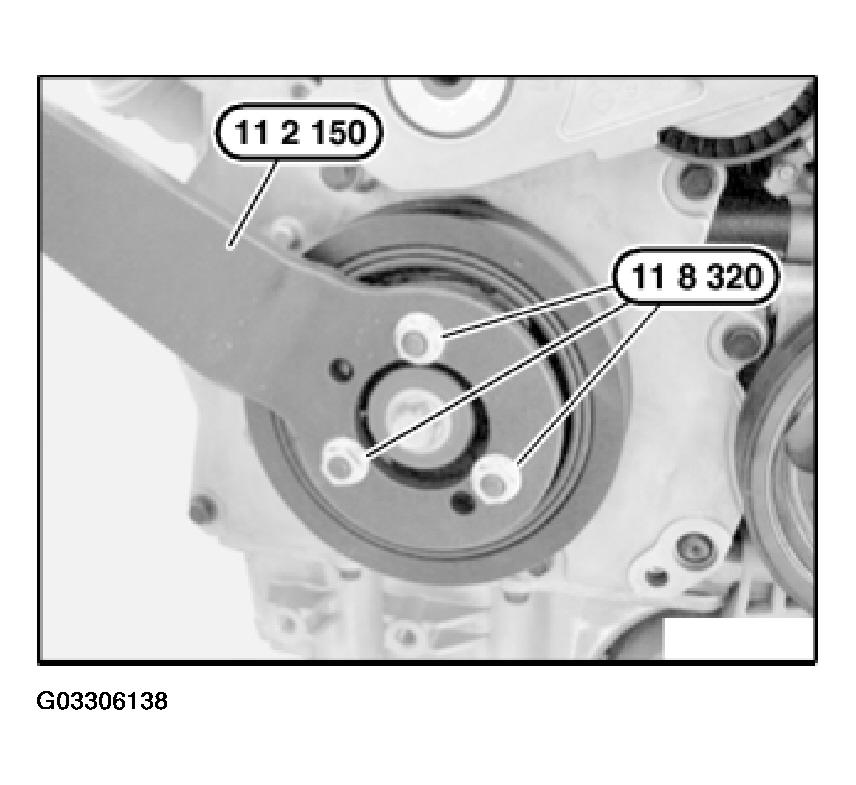

Fig 1: Securing Crankcase Vibration Damper In Position

G03306138

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws in sequence (8-1) and remove flywheel.

Fig 2: Identifying Releasing Sequence Of Flywheel Bolts

G03306139

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Pay attention to position mark (1) on flywheel and position mark (2) on crankshaft.

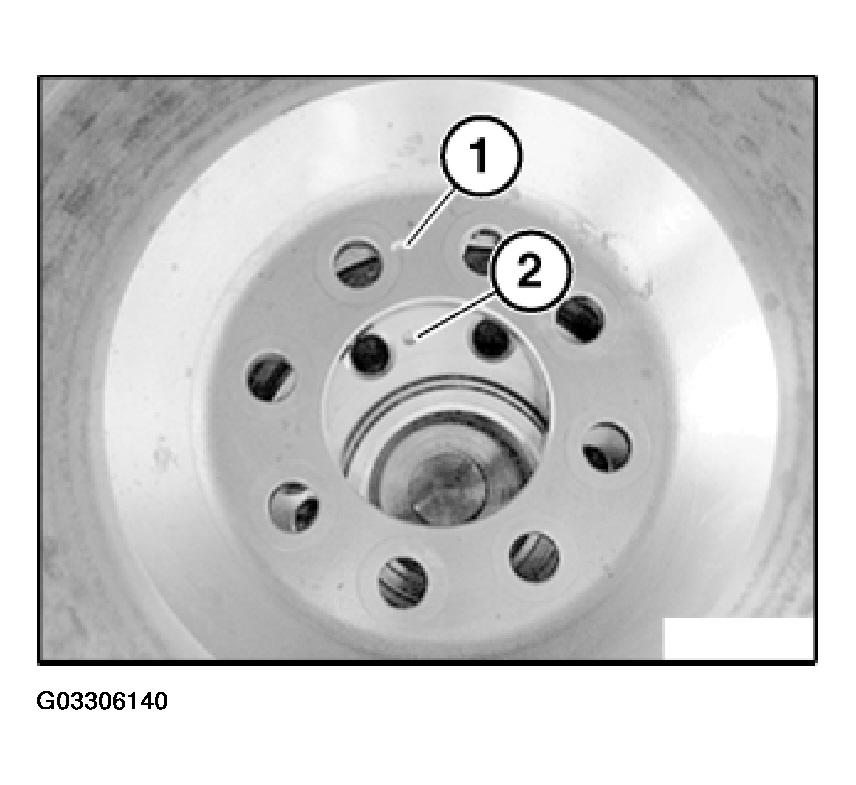

Fig 3: Aligning Mark On Flywheel With Mark On Crankshaft

G03306140

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Flywheel screws must be replaced.

Installation:

Tighten down bolts in sequence (1-8).

Tightening torque, refer to 11 22 1AZ in ENGINE - TIGHTENING TORQUES- COOPER (1.6L) R50/W10 .

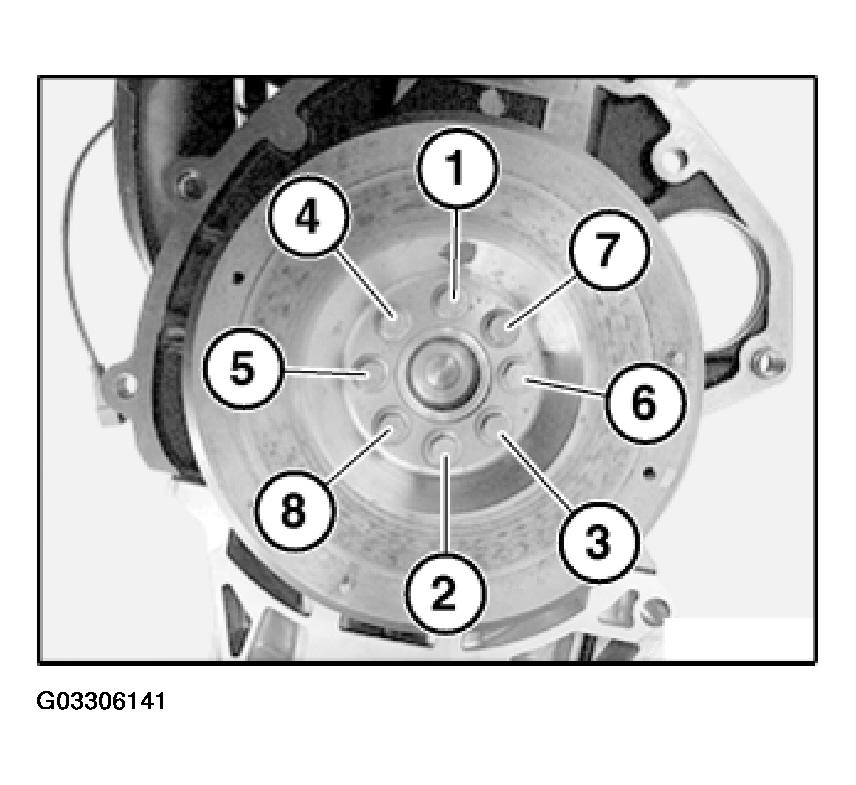

Fig 4: Identifying Tightening Sequence Of Flywheel Bolts

G03306141

Courtesy of BMW OF NORTH AMERICA, INC.
