11 14 141 Replacing shaft seal below timing chain cover

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see ENGINE- SPECIAL TOOLS - COOPER (1.6L) R50/W10 .

Special Tools Required:

11 2 320
11 8 241
11 8 242
11 8 270
11 8 290

Necessary Preliminary Tasks:

Remove vibration damper. Refer to 11 23 010 REMOVING AND INSTALLING OR REPLACING VIBRATION DAMPER .

Insert special tool 11 8 270 in crankshaft.

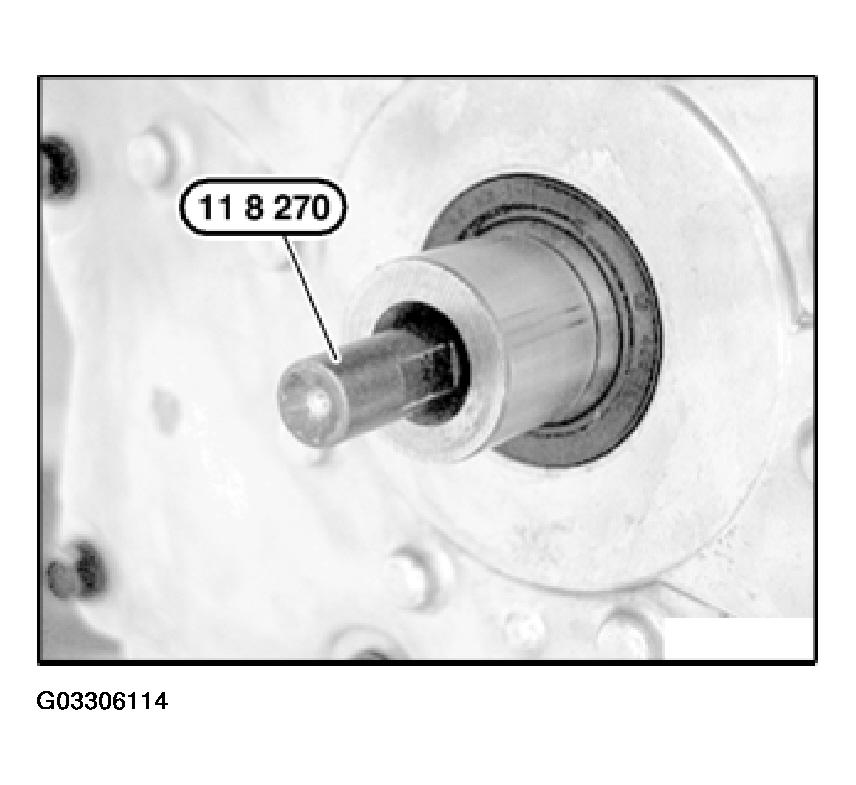

Fig 1: View Of Special Tool 11 8 270 In Crankshaft

G03306114

Courtesy of BMW OF NORTH AMERICA, INC.

Place special tool 11 8 290 on crankshaft and screw in until is firmly contacts shaft seal (1).

Pull out shaft seal (1) by tightening screw.

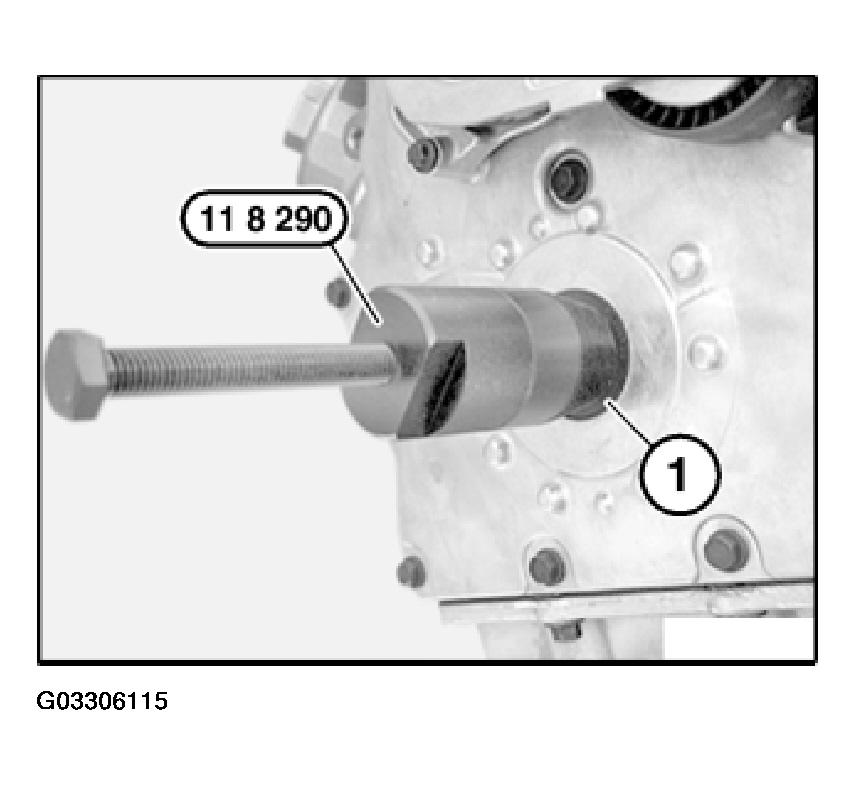

Fig 2: Removing Crankshaft Seal

G03306115

Courtesy of BMW OF NORTH AMERICA, INC.

Remove special tool 11 8 270.

Screw special tool 11 8 242 into crankshaft (see Fig 3).

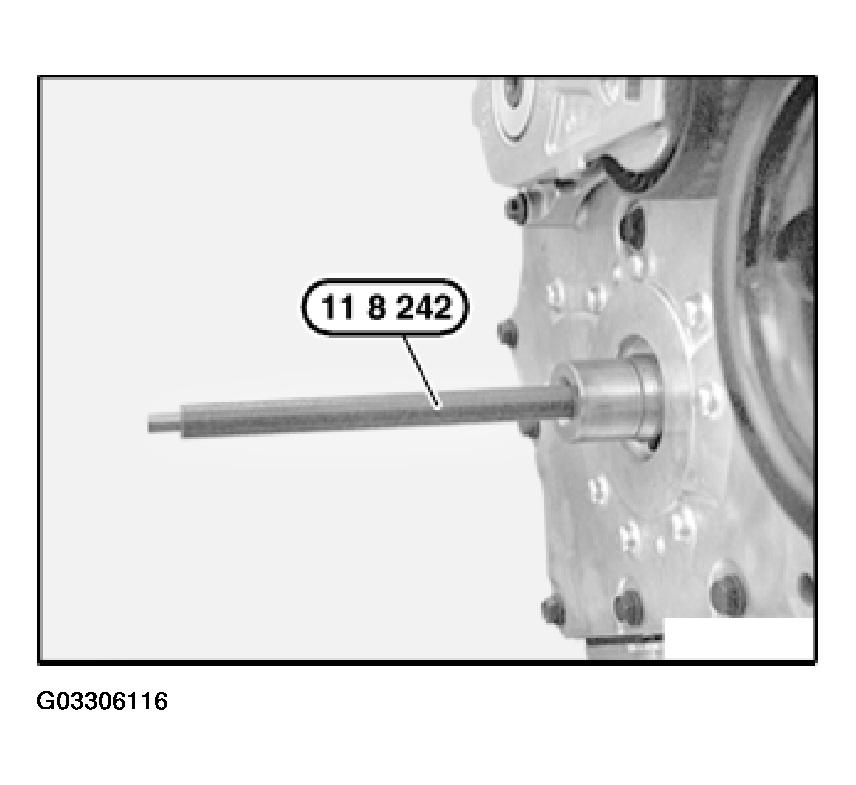

Fig 3: View Of Special Tool 11 8 242 In Crankshaft

G03306116

Courtesy of BMW OF NORTH AMERICA, INC.

Coat sealing lip of new shaft seal with oil.

Press in shaft seal with special tools 11 2 320 and 11 8 241.

Installation:

The shaft seal is correctly fitted when it is flush with the timing chain cover.

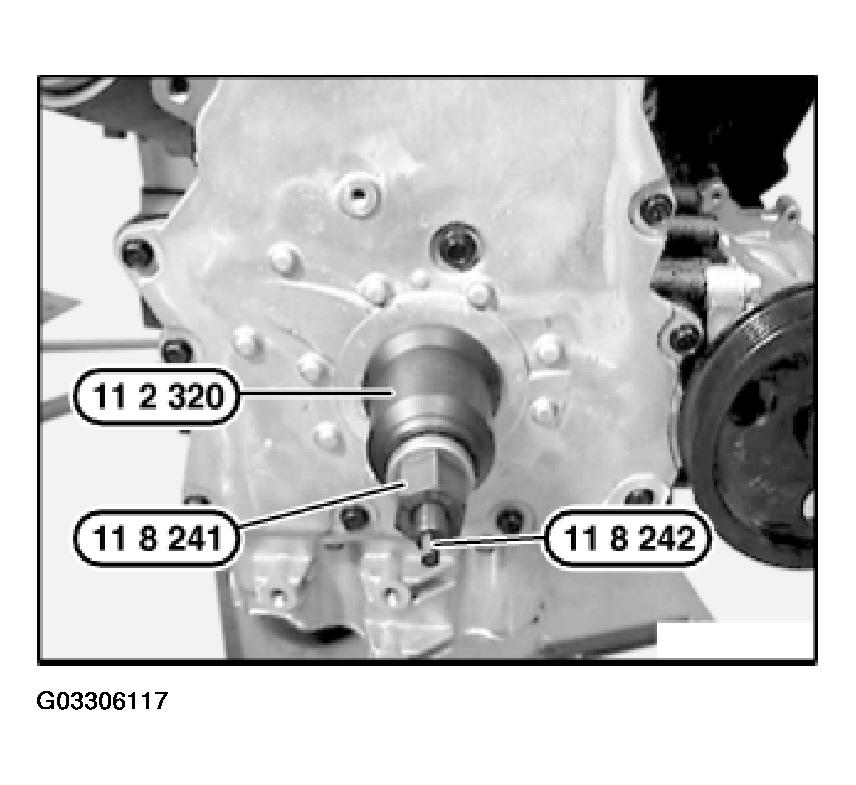

Fig 4: Installing Crankshaft Seal With Spindle

G03306117

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Check engine for leaks.
