11 22 000 Removing and installing or replacing drive discs (CVT)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see ENGINE - SPECIAL TOOLS - COOPER (1.6L) R50/W10 .

Special Tools Required:

11 2 150
11 8 320

Necessary Preliminary Tasks:

Remove transmission. Refer to REMOVAL & INSTALLATION - AUTOMATIC TRANSMISSION .

Use special tool 11 2 150 and special tool 11 8 320 to hold crankcase vibration damper in position.

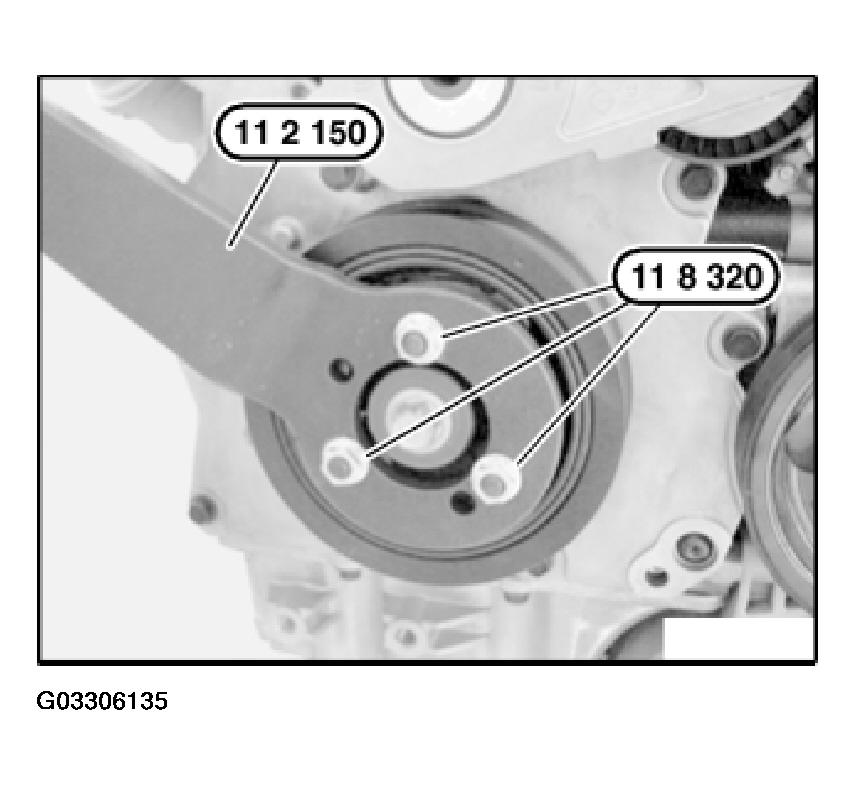

Fig 1: Securing Crankcase Vibration Damper In Position

G03306135

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen flywheel in the sequence (8-1).

Remove flywheel. Refer to 11 22 500 REMOVING AND INSTALLING OR REPLACING FLYWHEEL .

Installation Note:

Fit new flywheel screws.

Firmly tighten in the sequence (1-8).

Tightening torque, refer to 11 22 1AZ in ENGINE - TIGHTENING TORQUES- COOPER (1.6L) R50/W10 .

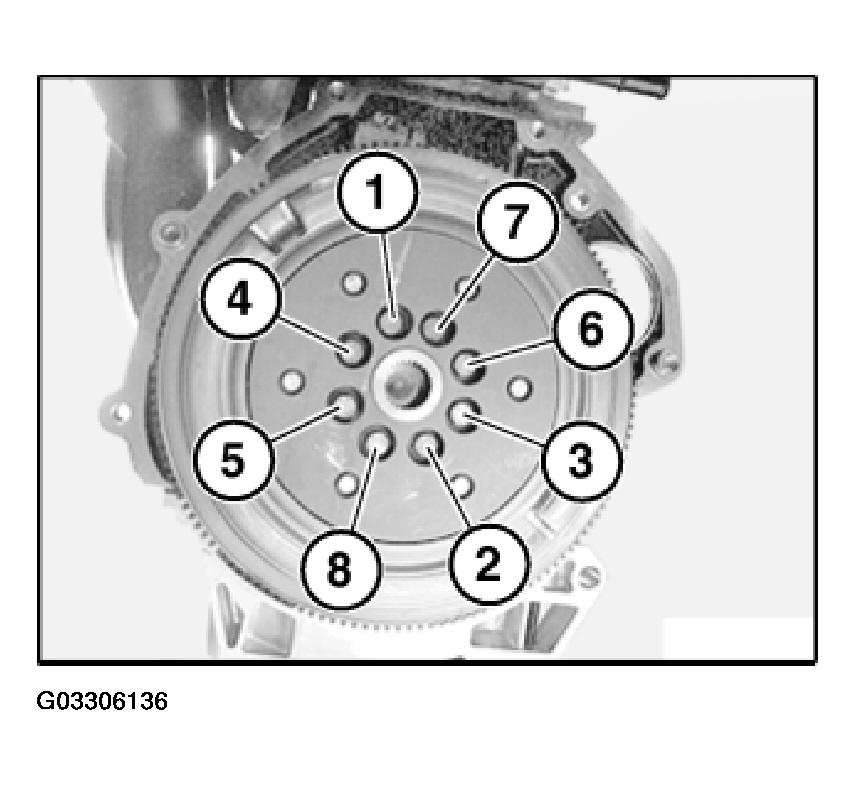

Fig 2: Identifying Loosening Sequence Of Flywheel Screws

G03306136

Courtesy of BMW OF NORTH AMERICA, INC.

Installation Note:

Align marking (1) on crankcase with marking (2) on flywheel.

See Fig 3.

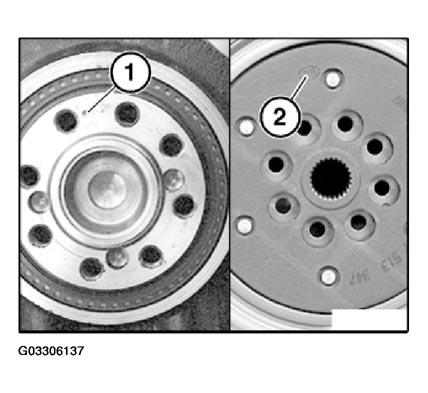

Fig 3: Aligning Marking On Crankcase With Marking On Flywheel

G03306137

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
