11 12 729 Checking cylinder head for water leaks (W10 /W11)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For Special Tool identification, see ENGINE- SPECIAL TOOLS - COOPER (1.6L) R50/W10 .
Special Tools Required:
- 11 8 431
- 11 8 432
- 11 8 433
Necessary Preliminary Tasks:
- Remove cylinder head. Refer to 11 12 100 REMOVING AND INSTALLING/SEALING CYLINDER HEAD W10 .
- Remove camshaft. Refer to 11 31 001 REPLACING CAMSHAFT .
- Remove thermostat. Refer to 11 53 000 REMOVING AND INSTALLING/REPLACING COOLANT THERMOSTAT (W10) .

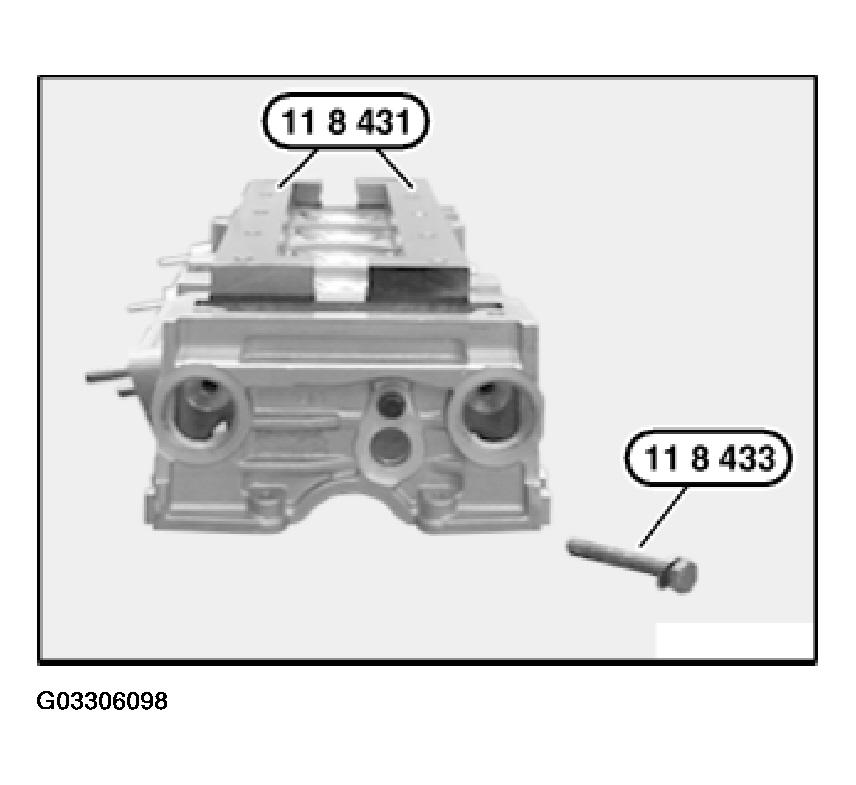

Place special tools 11 8 431 on sealing surface of cylinder head.
Secure special tools 11 8 431 with special tool 11 8 433.
NOTE:
Clean sealing surfaces.

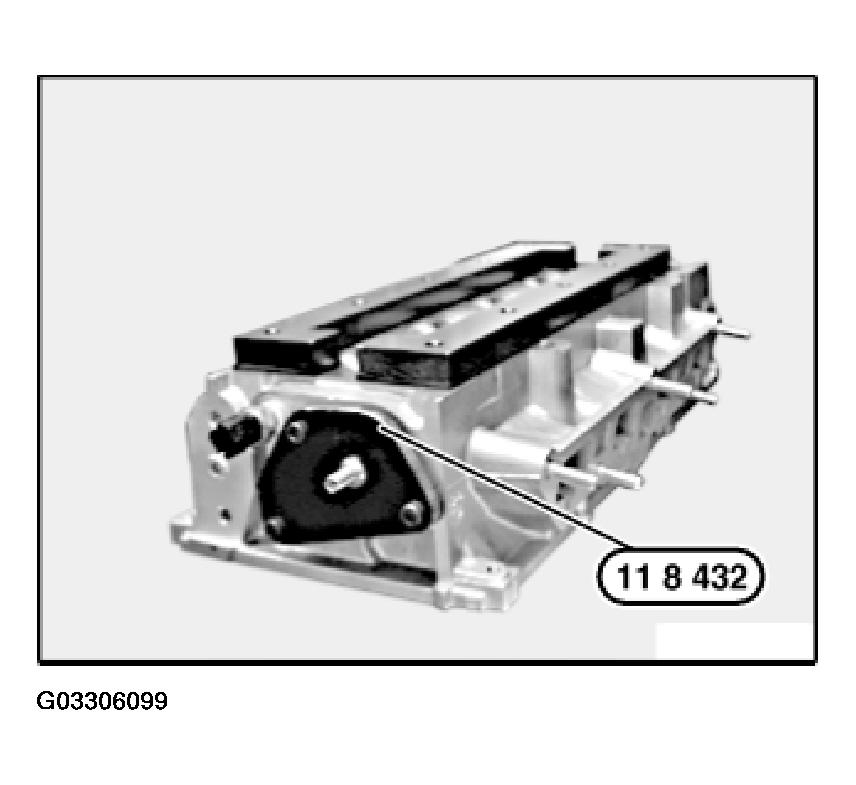

Close off coolant opening with special tool 11 8 432.

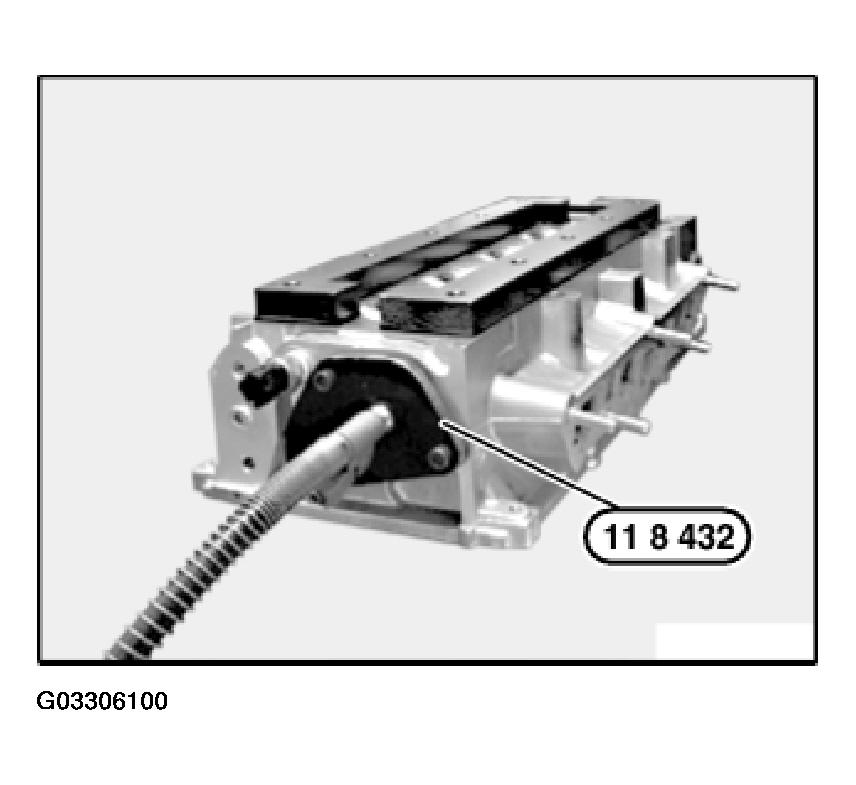

Connect compressed air supply to special tool 11 8 432.
Test pressure: 4.5 bar.
Immerse cylinder head in a water bath.
Check cylinder head for escaping air (cracks).
NOTE:
If necessary, soften the bath water with a cleaning agent.
Assemble engine.
