11 12 264 Replacing seals for spark plug well

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required:

24 1 040

Necessary Preliminary Tasks:

Remove cylinder head cover. Refer to 11 12 000 REMOVING AND INSTALLING/SEALING CYLINDER HEAD COVER (W10) .

Use a suitable tool to carefully remove spark plug seals (1).

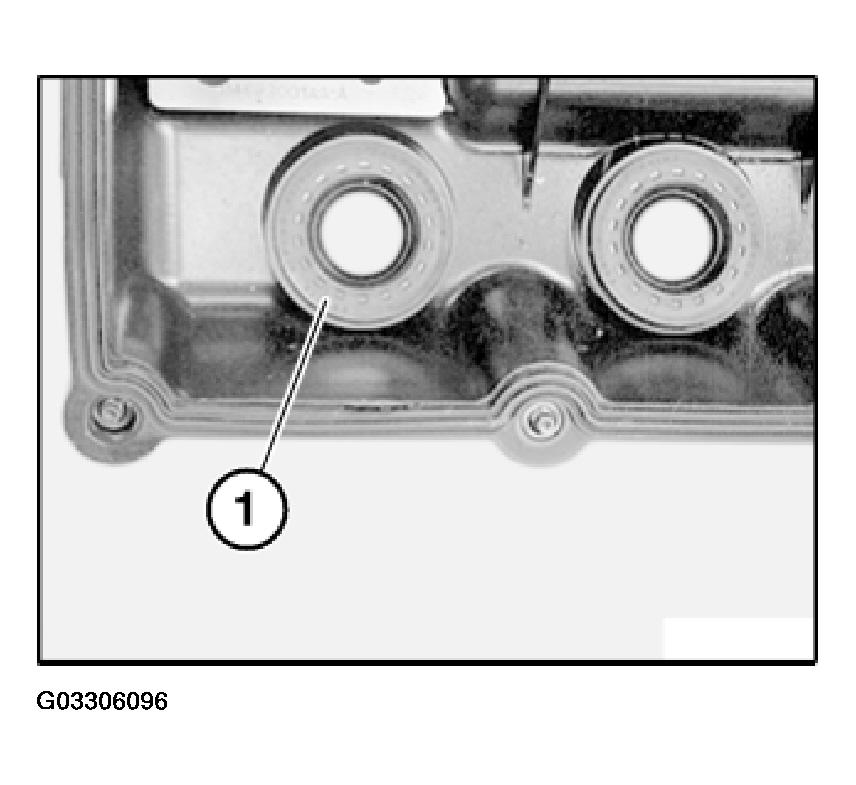

Fig 1: Removing Spark Plug Seals

Courtesy of BMW OF NORTH AMERICA, INC.

Clean all sealing surfaces.

Installation Note:

Fit seals (1) with special tool 24 1 040.

Only use hand force to press in seals (1).

Lightly oil seals before installing cylinder head cover.

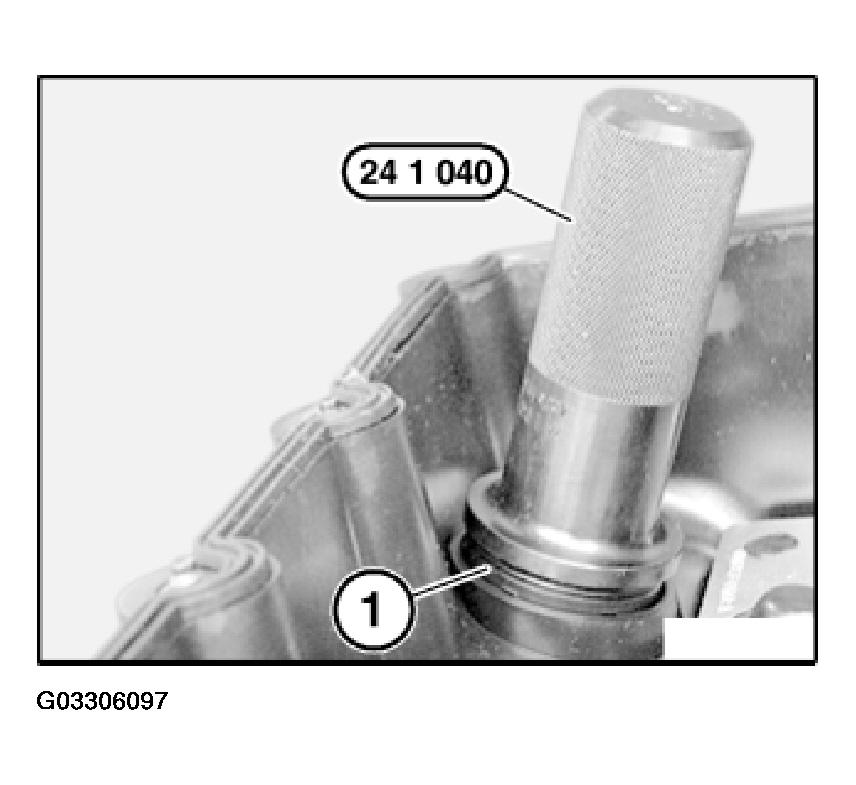

Fig 2: Fitting Seals With Special Tool 24 1 040

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Ensure that the sealing surfaces of cylinder head cover are not damaged.

Replace seals if they show signs of hardening and cracking.

Assemble engine.
