11 12 260 Removing and installing spark plug well

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see ENGINE- SPECIAL TOOLS - COOPER (1.6L) R50/W10 and ENGINE ELECTRICAL SYSTEM - SPECIAL TOOLS - COOPER (1.6L) R50/W10 .

Special Tools Required:

11 8 500
12 1 211
12 1 212

Necessary Preliminary Tasks:

Remove cylinder head cover. Refer to 11 12 000 REMOVING AND INSTALLING/SEALING CYLINDER HEAD COVER (W10) .
Remove spark plug. Refer to 12 12 011 REPLACING ALL SPARK PLUGS .

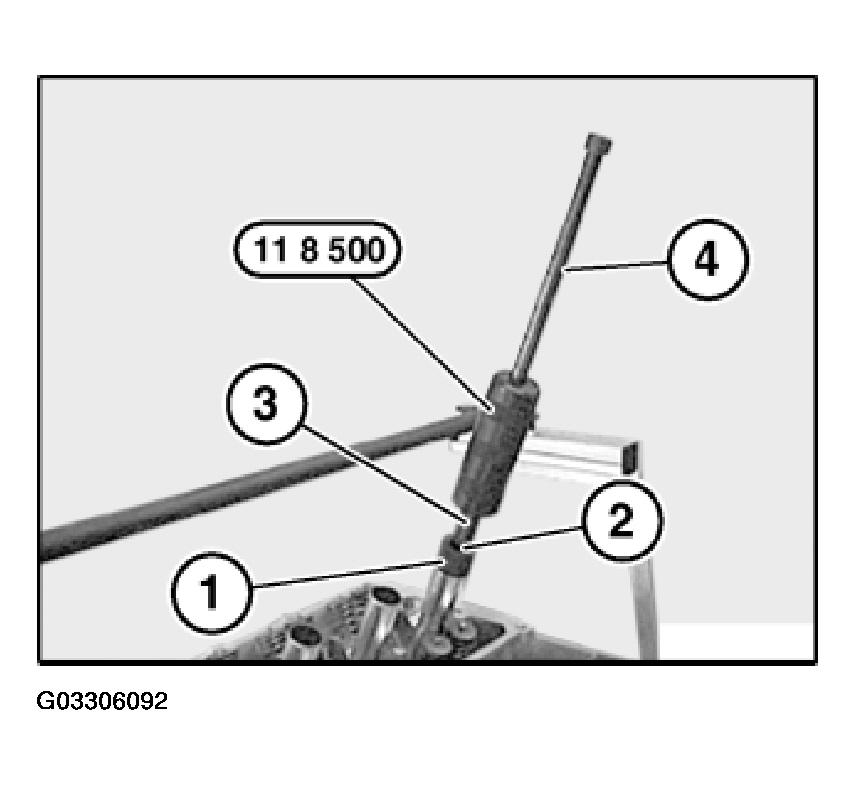

Fit special tool 11 8 500 in spark plug well.

Firmly tighten retaining claws (1) with lock screw (2).

Screw on adapter (3).

Screw in impact weight with screw (4).

NOTE: Drive out spark plug well.

Installation Note:

Spark plug well must be replaced after disassembly.

Fig 1: Tightening Retaining Claws With Lock Screw

G03306092

Courtesy of BMW OF NORTH AMERICA, INC.

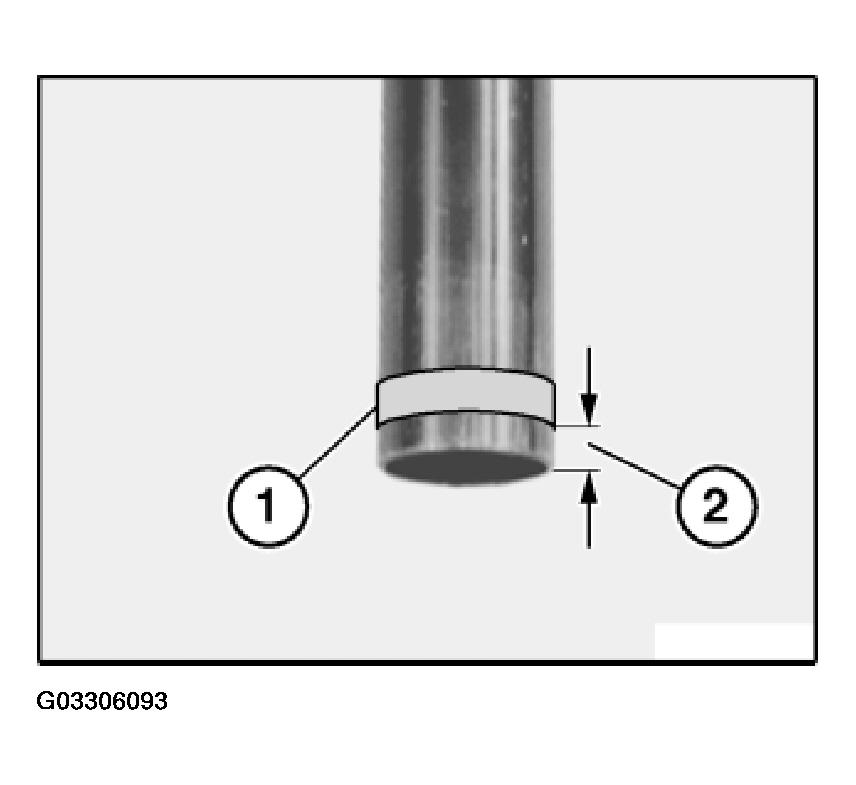

Clean area around spark plug well.

Apply 3 mm thick bead of Loctite 277 sealing compound at a distance of about 1 mm from the end of the well.

1 = Bead of sealing compound.

2 = 1 mm from end of well.

Fig 2: Identifying Dimensions For Sealing Compound

G03306093

Courtesy of BMW OF NORTH AMERICA, INC.

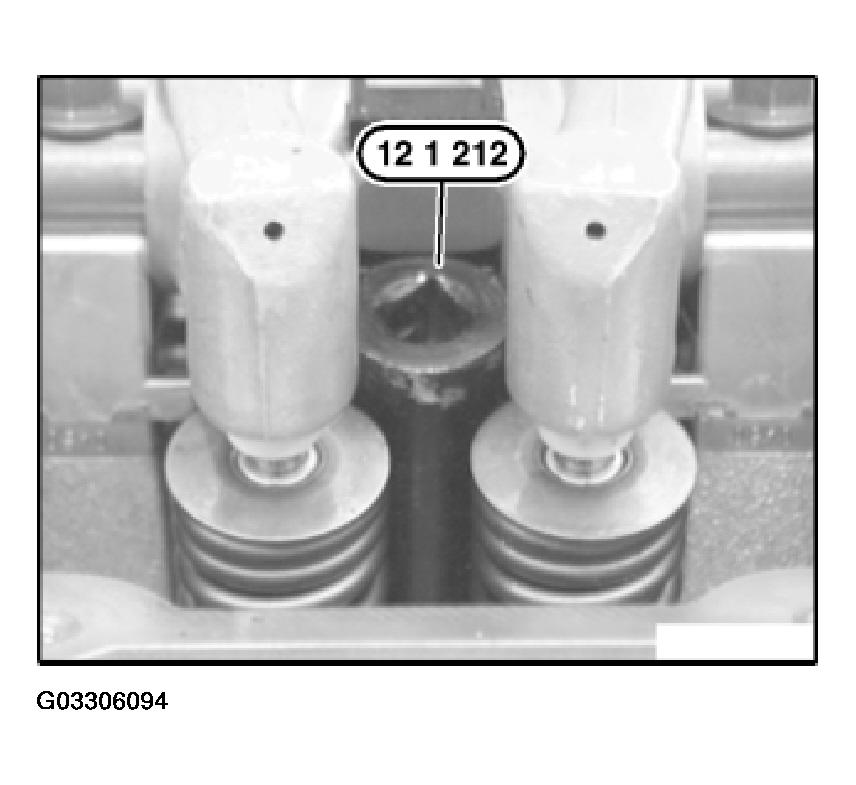

Screw special tool 12 1 212 into spark plug hole.

Fig 3: Screwing Special Tool 12 1 212 Into Spark Plug Hole

G03306094

Courtesy of BMW OF NORTH AMERICA, INC.

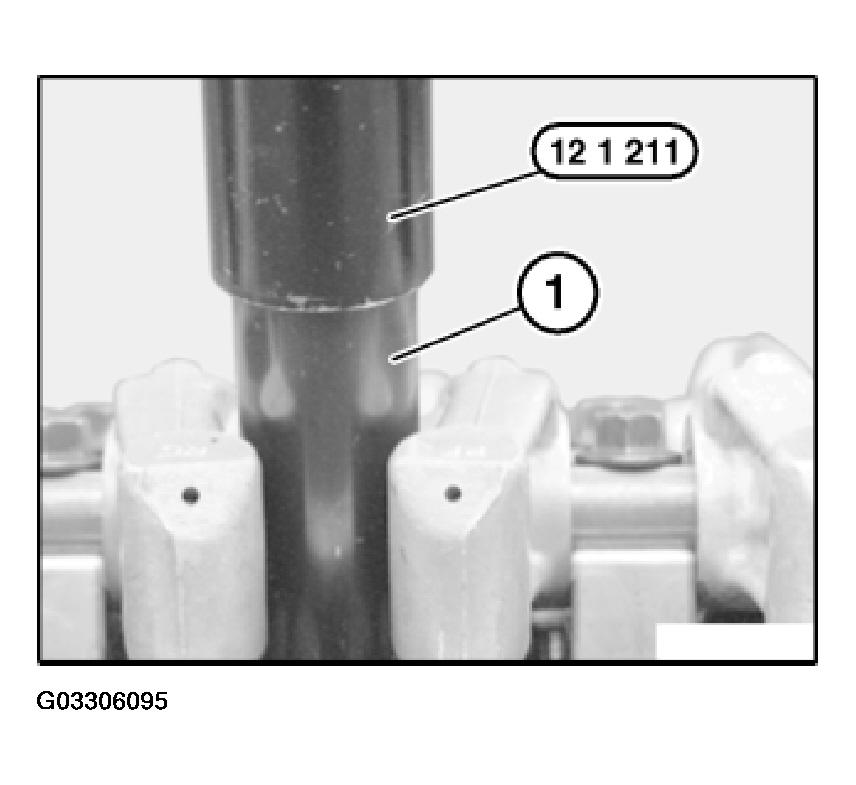

Carefully install spark plug well (1).

Fit well with special tool 12 1 211.

Use special tool 12 1 211 to drive in spark plug well.

Installation Note:

Spark plug well (1) is installed correctly when special tool 12 1 211 makes contact with special tool 12 1 212.

Fig 4: Installing Spark Plug Well

G03306095

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
