65 50 510 Removing and installing/replacing video module for on-board monitor (saloon)
WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.
If necessary, remove CD-changer,
refer to 65 11 070 REMOVING AND INSTALLING / REPLACING CD-CHANGER
Open flap in rear left side panel.

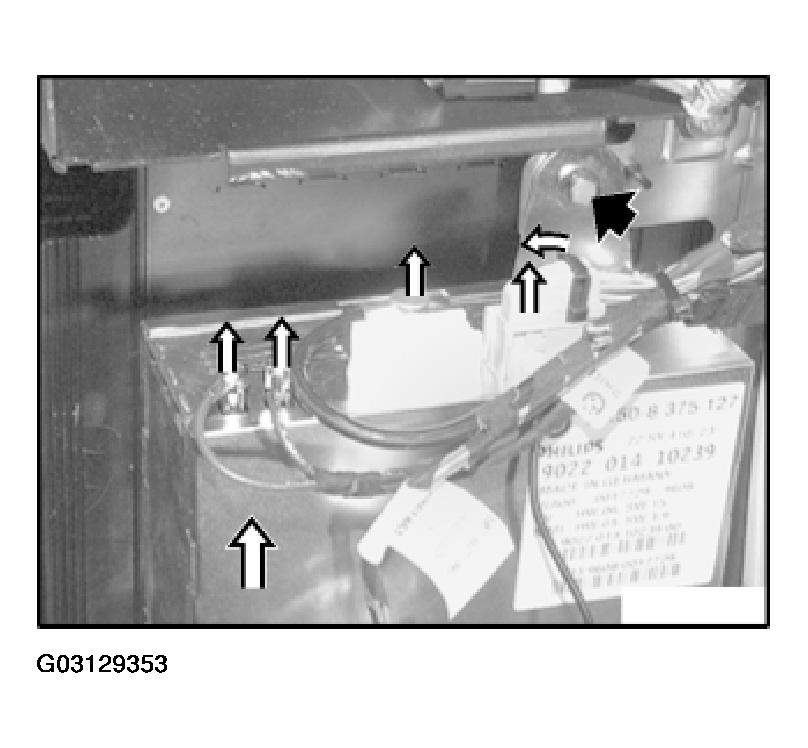

Pull off connectors. Unfasten screw and pull video module upwards to remove.
Installation:

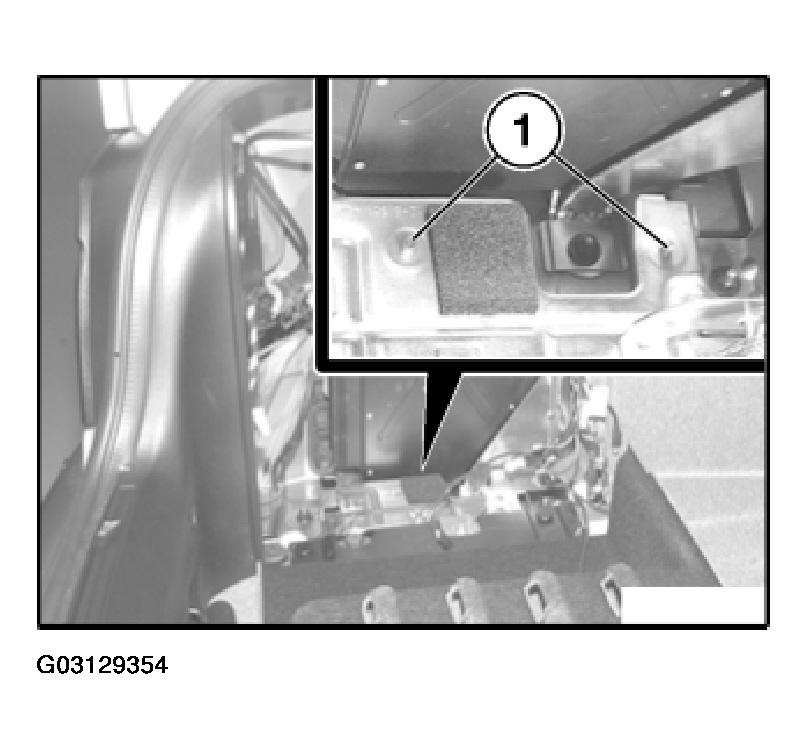

Fit video module on the guide bolts (1).
