65 11 070 Removing and installing / replacing CD-changer

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Open flap in rear left side panel. Unfasten screws, raise CD-changer slightly and tilt outwards to remove.

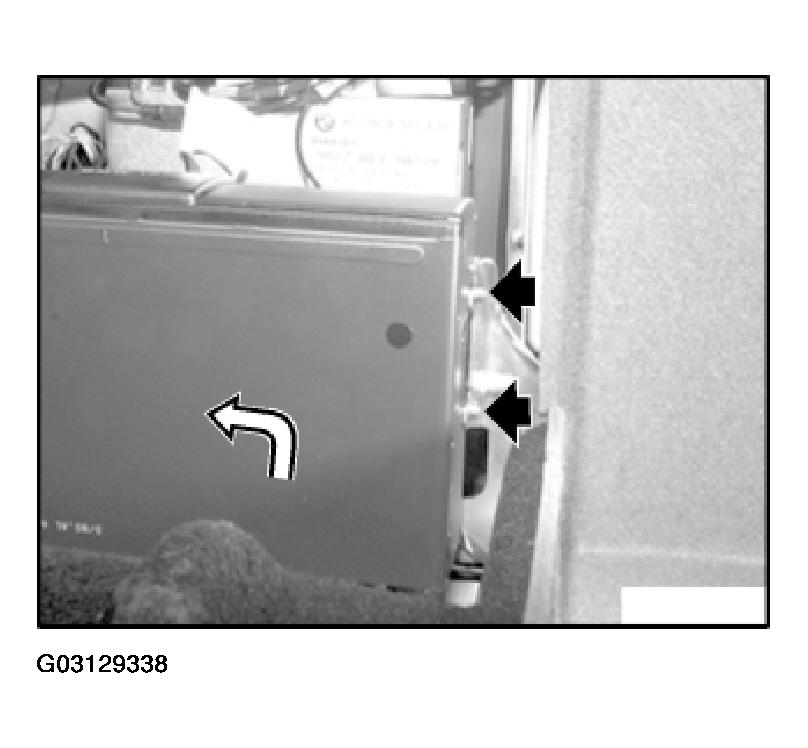

Fig 1: Removing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off connectors.

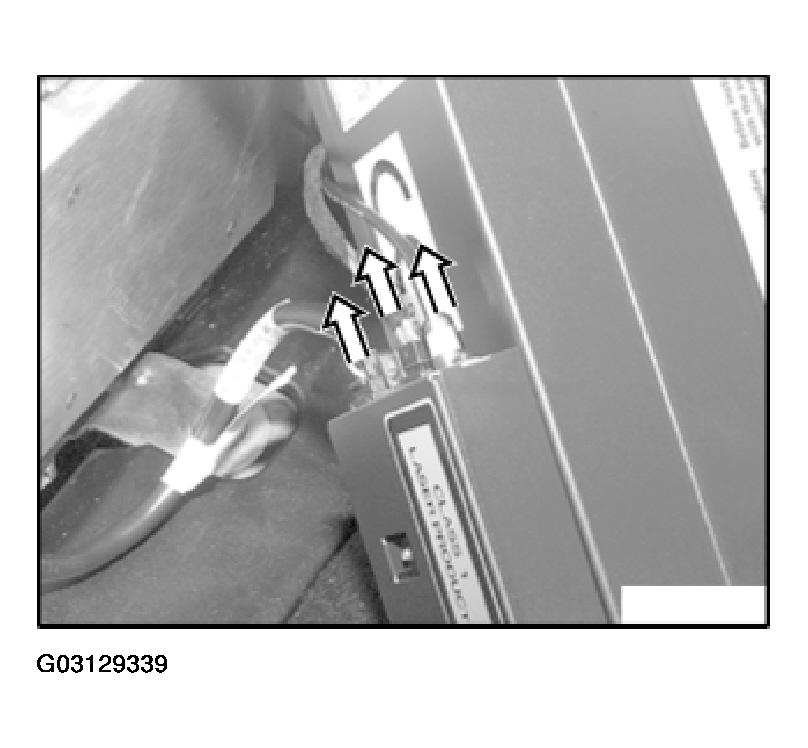

Fig 2: Removing Connectors

Courtesy of BMW OF NORTH AMERICA, INC.
