65 52 530 Removing and installing/replacing LC display for on-board monitor

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Remove on-board monitor,

refer to 65 52 510 REMOVING AND INSTALLING ON-BOARD MONITOR .

CAUTION: Place trim panel on special tool 12 7 192 (anti-static mat) and ground in order to avoid a static charge.

Unfasten screws. Turn over frame.

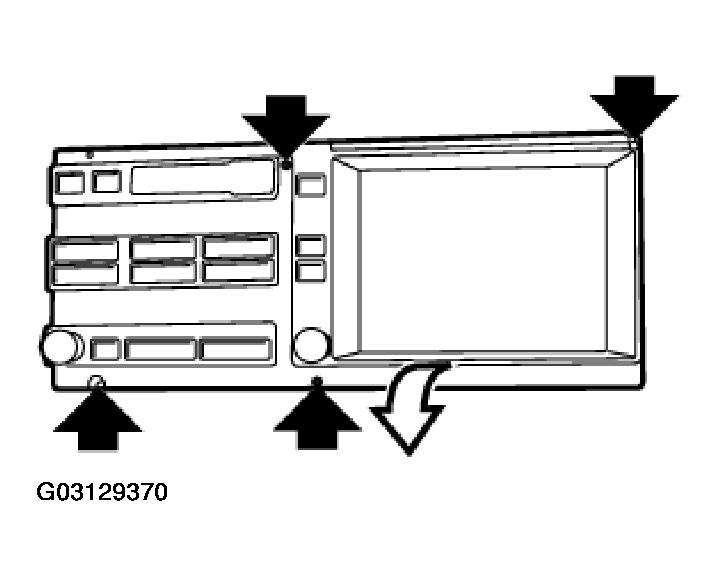

Fig 1: Placing Trim Panel On Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws. Slide LC display out towards front.

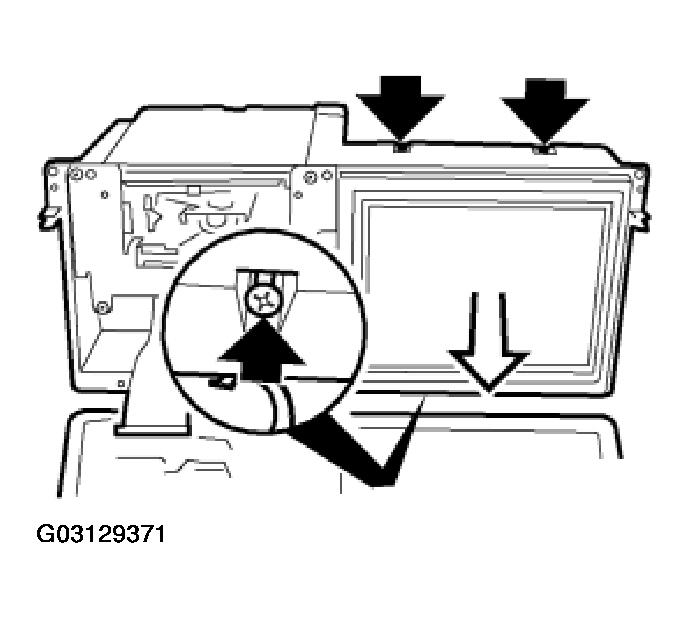

Fig 2: Removing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Cover flat tape (1) with installation cover (2) and then slide in LC display.

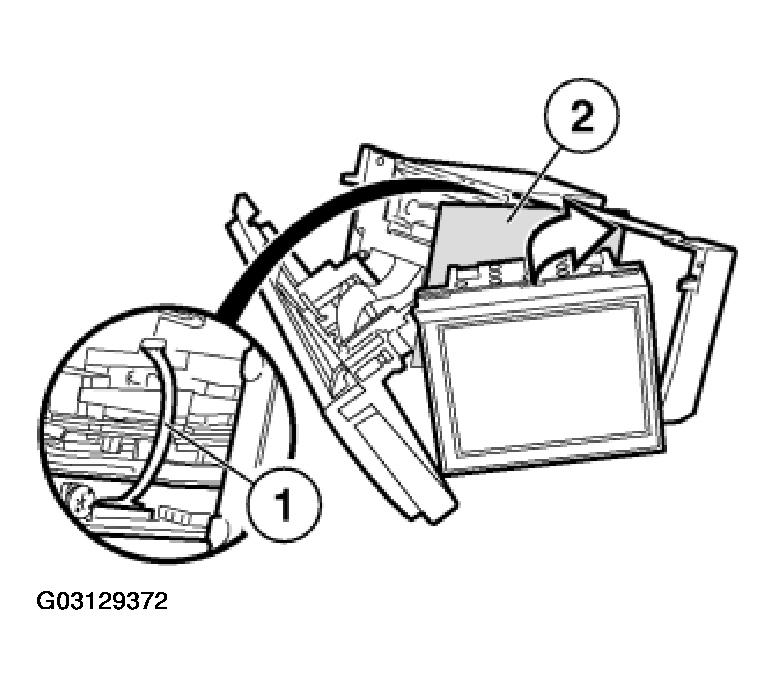

Fig 3: Covering Flat Tape With Installation Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Install LC display and insert screws loosely. Fit trim panel; while doing this, make sure plug is correctly seated on button board.

Press LC display against frame (gap between LC display and frame must be the same all round), then tighten down screws.

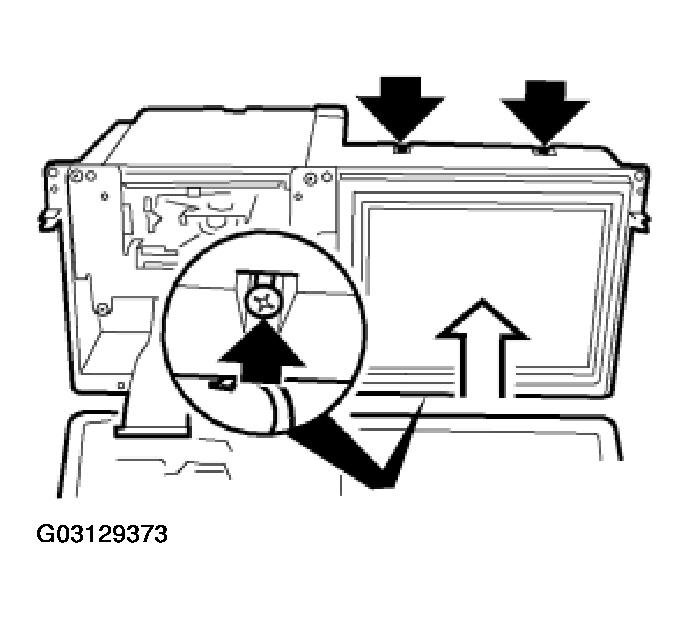

Fig 4: Installing LC Display & Screws

Courtesy of BMW OF NORTH AMERICA, INC.
