65 52 510 Removing and installing on-board monitor

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

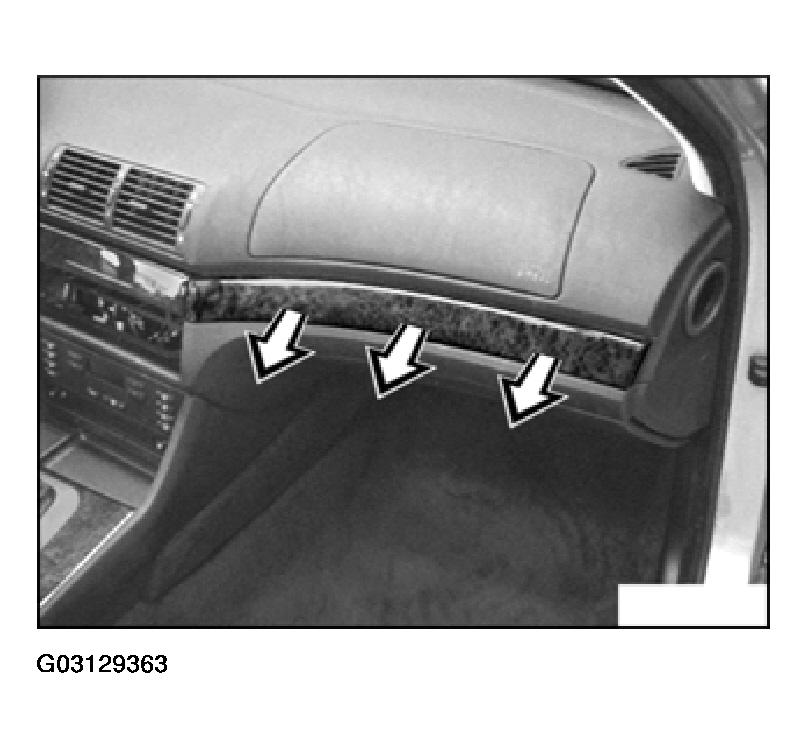

Pull off right wooden finisher.

Fig 1: Removing Right Wooden Finisher

G03129363

Courtesy of BMW OF NORTH AMERICA, INC.

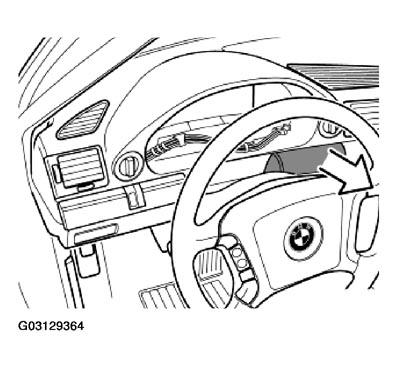

Remove top left wooden finisher by pulling upwards.

Fig 2: Removing Top Left Wooden Finisher

G03129364

Courtesy of BMW OF NORTH AMERICA, INC.

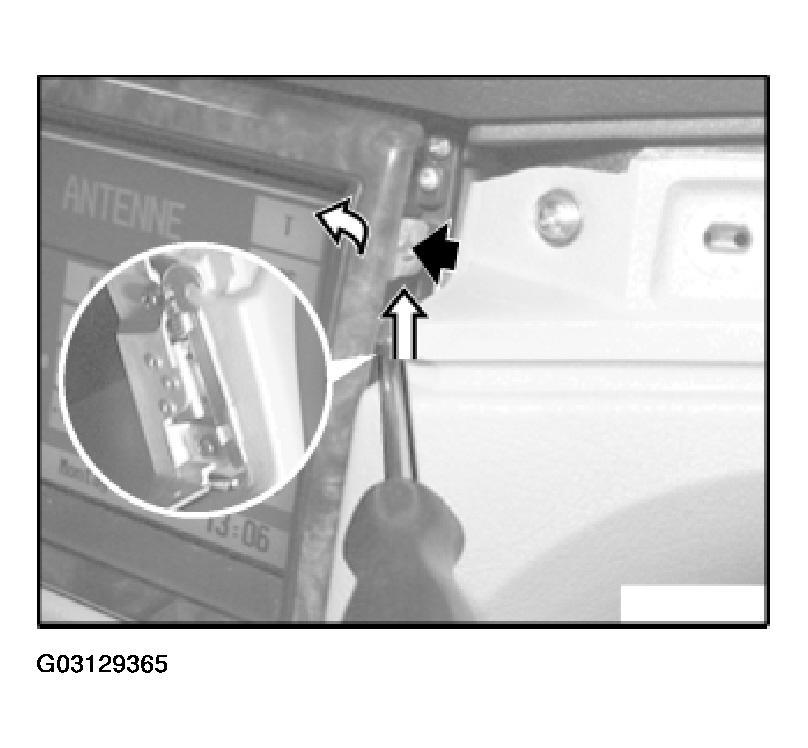

Unfasten left and right screw. Raise left and right levers with screwdriver and pull down finisher, then remove completely.

Fig 3: Removing Screw

G03129365

Courtesy of BMW OF NORTH AMERICA, INC.

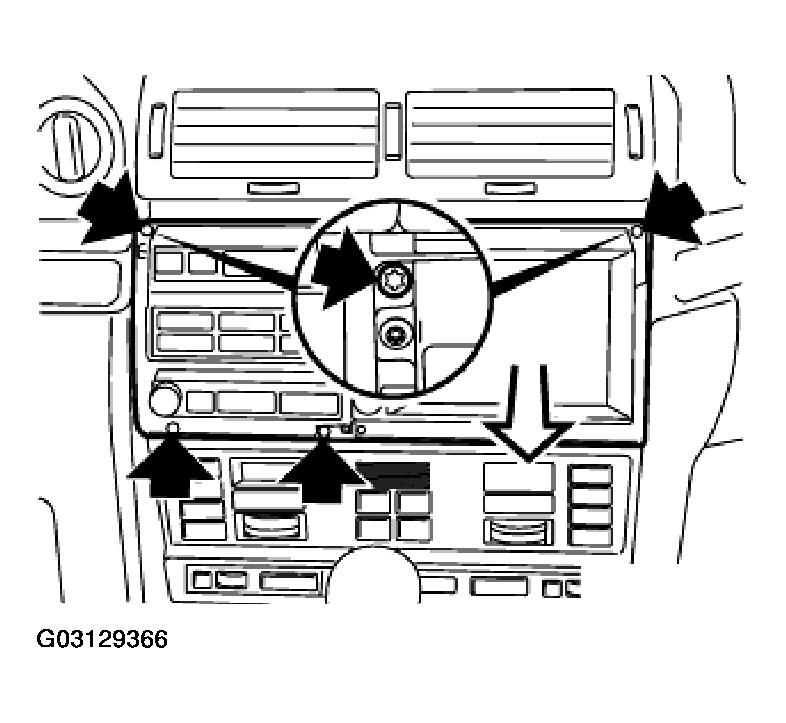

Unfasten screws.

Pull out on-board monitor towards front.

Fig 4: Removing On-Board Monitor

G03129366

Courtesy of BMW OF NORTH AMERICA, INC.

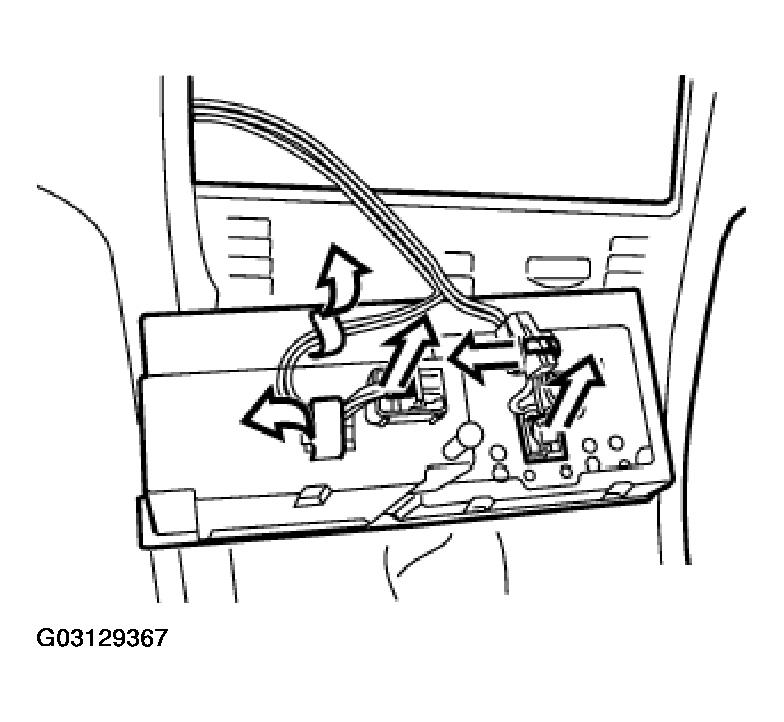

Remove plug and unfasten wiring harness from clips.

Fig 5: Removing Plug & Wiring Harness From Clips

G03129367

Courtesy of BMW OF NORTH AMERICA, INC.
