65 12 070 Removing and installing/replacing amplifier (HiFi system)

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

If necessary, remove video module,

refer to 65 50 510 REMOVING AND INSTALLING/REPLACING VIDEO MODULE FOR ON-BOARD MONITOR (SALOON) .

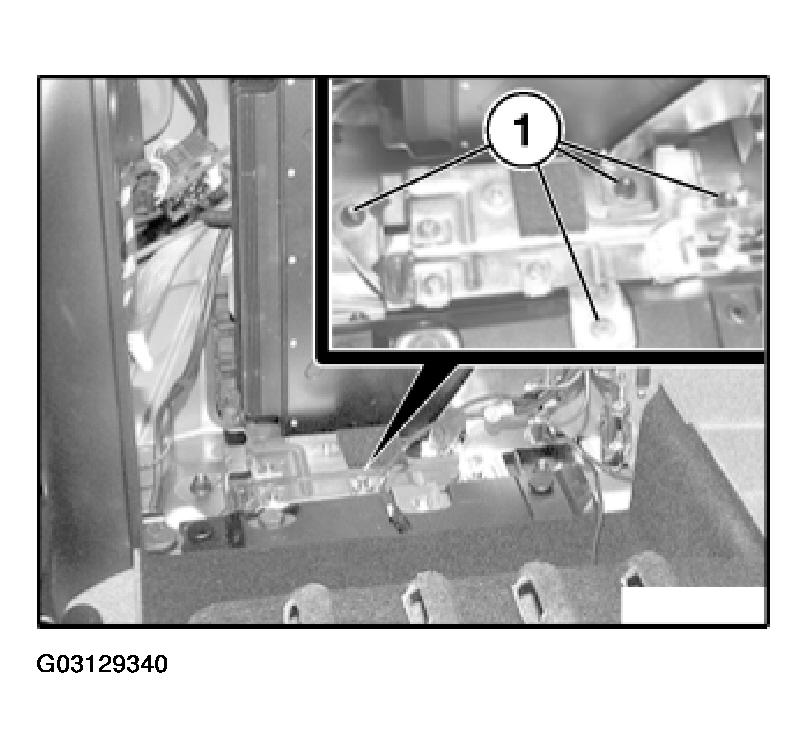

If necessary, remove bracket for video module. To do this, unfasten screws (1) and remove bracket.

Fig 1: Removing Bracket Screws

Courtesy of BMW OF NORTH AMERICA, INC.

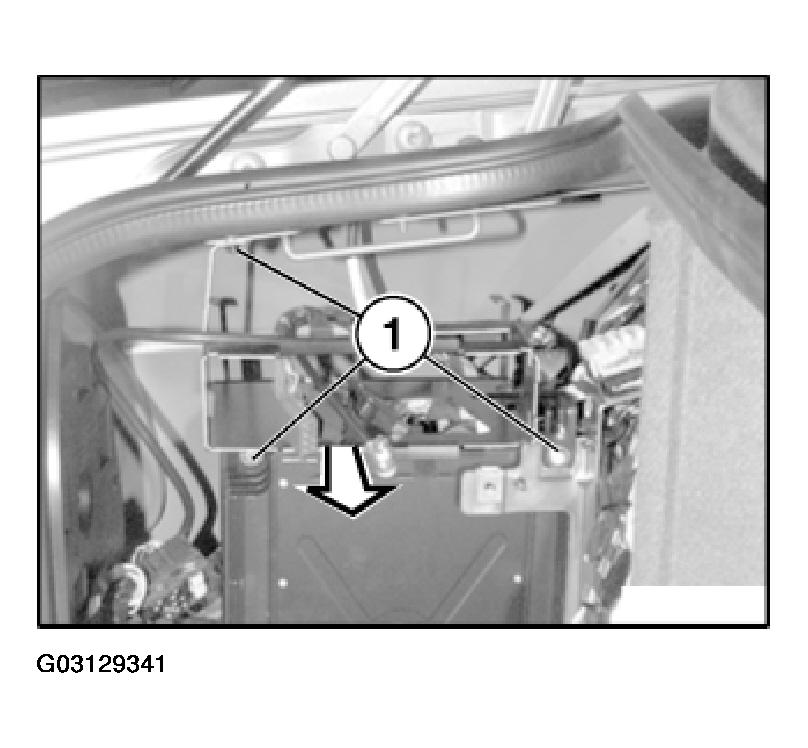

If necessary, remove bracket for navigation computer. To do this, unfasten screws (1) and remove bracket.

Fig 2: Removing Bracket For Navigation Computer

Courtesy of BMW OF NORTH AMERICA, INC.

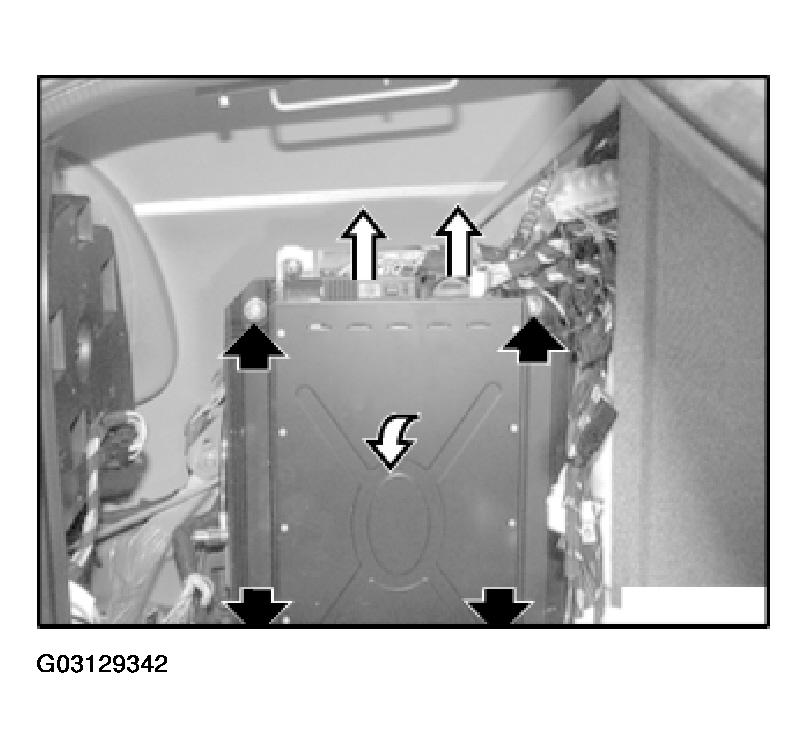

Disconnect connector, unfasten screws and remove amplifier.

Fig 3: Removing Amplifier

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Cars from 3/98:

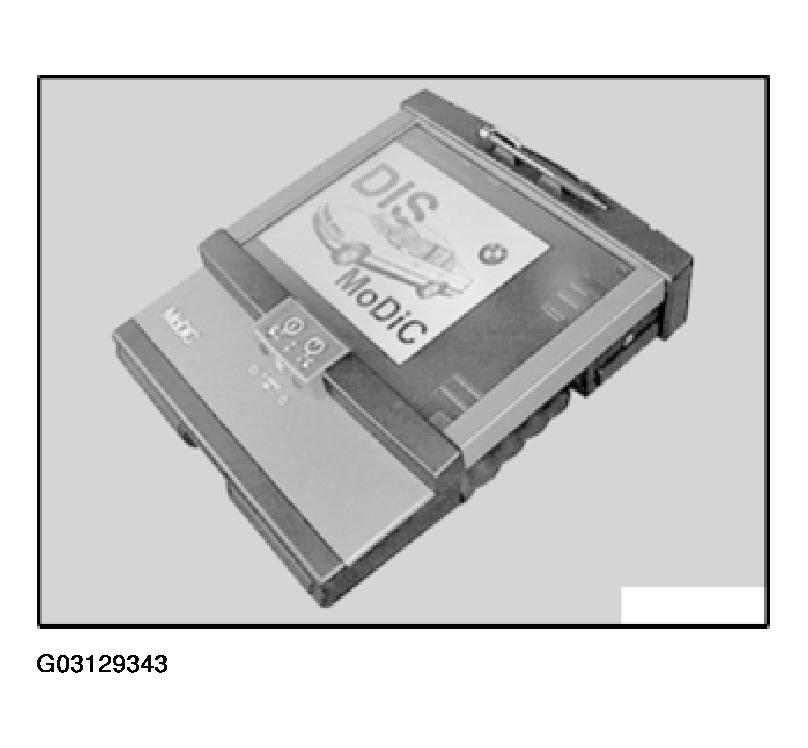

The amplifier must be recoded after being replaced, refer to Diagnosis and Information System (DIS).

Fig 4: Identifying Diagnosis & Information System (DIS)

Courtesy of BMW OF NORTH AMERICA, INC.
