65 13 071 Removing and installing or replacing loudspeakers (rear shelf)

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear parcel shelf,

refer to 51 46 000 REMOVING AND INSTALLING/REPLACING TRIM FOR ODDMENTS TRAY (BACK SHELF) .

Lift foam rubber at all four corners, unfasten screws and lift out loudspeaker. Pull off connectors.

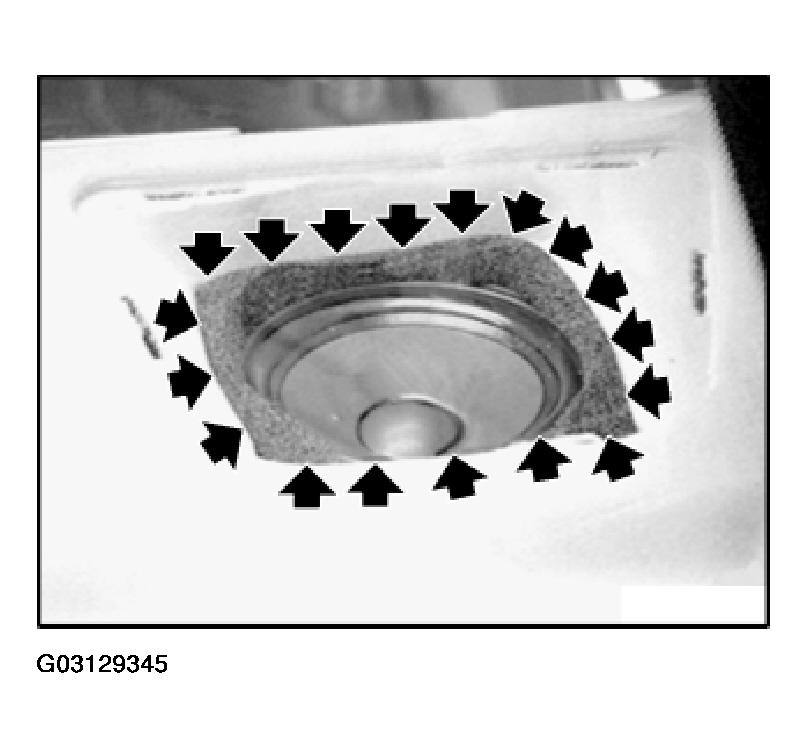

Fig 1: Removing Loudspeaker

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Unclip loudspeaker frame and check position of foam rubber. Foam rubber must not be shifted towards speaker diaphragm.

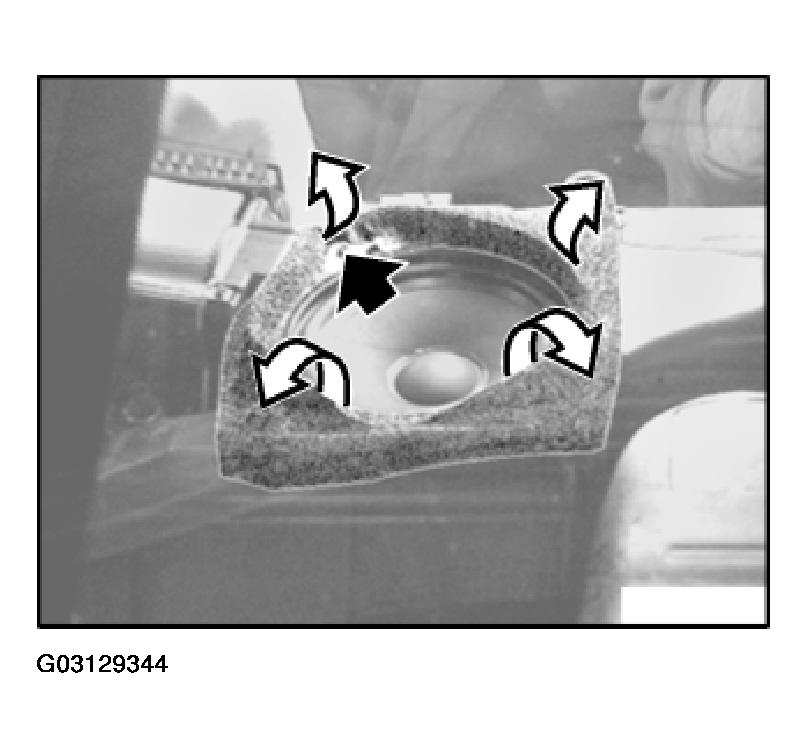

Fig 2: Unclipping Loudspeaker Frame

Courtesy of BMW OF NORTH AMERICA, INC.
