51 46 000 Removing and installing/replacing trim for oddments tray (back shelf)

Necessary preliminary tasks:

• Remove both panels for rear roof pillar (C-pillar finishers).
• Release all seat belts at rear bottom.

Version without through-loading system:

• Remove rear seat backrest.

Version with through-loading system:

• Remove both rest side sections on rear seat backrest.

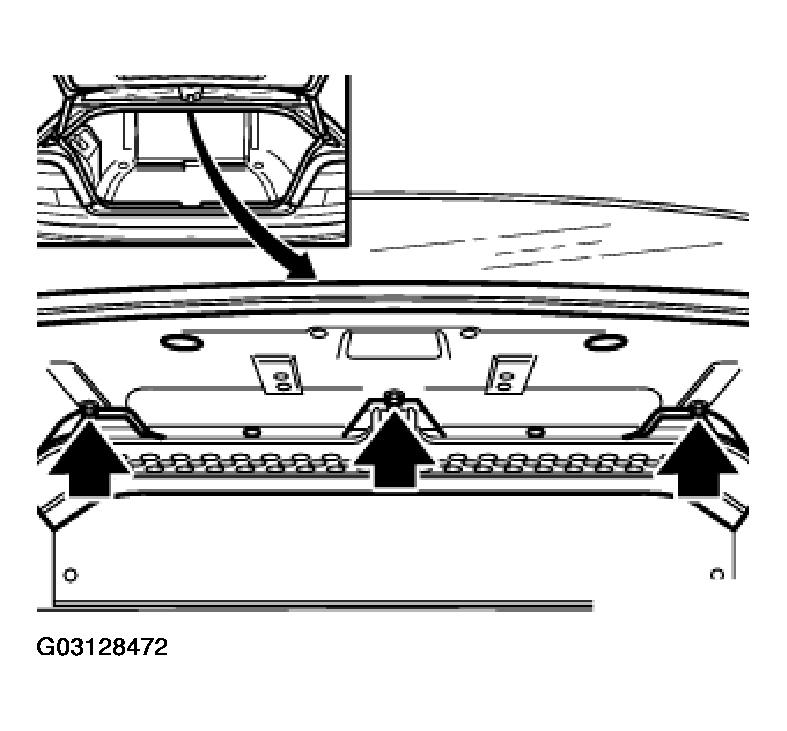

Fig 1: Releasing Screws & Nuts In Luggage Compartment

Courtesy of BMW OF NORTH AMERICA, INC.

Version with rear window roller blind only:

If necessary, release screws and nuts in luggage compartment.

Installation:

Tightening torque. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

Fig 2: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Version with rear window roller blind only:

If necessary, disconnect plug connection (1).

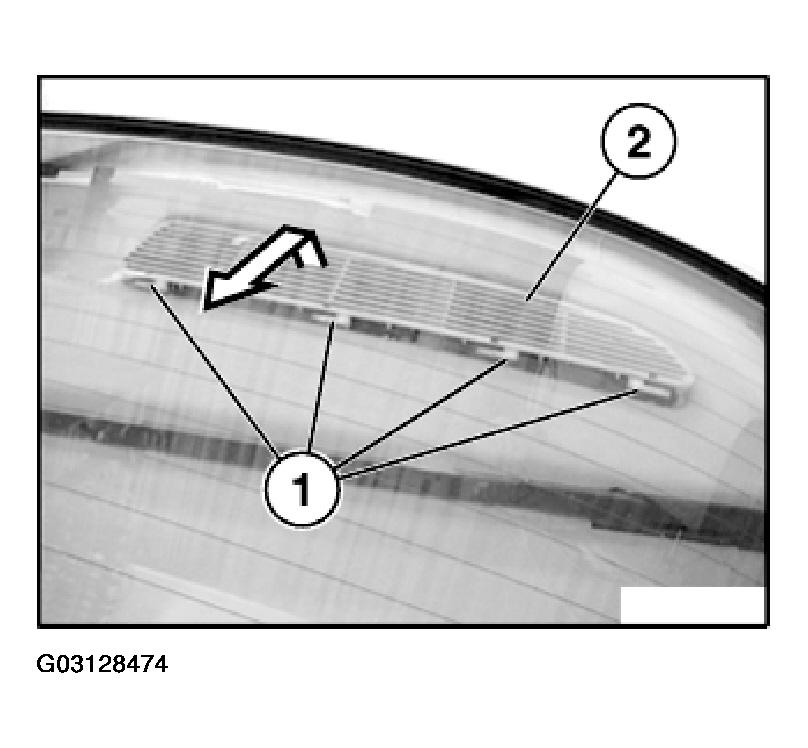

Fig 3: Unlocking Catches With Feeler Gauge & Pulling Out Both Trim Grills

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock catches (1) with feeler gauge and pull out both trim grills (2) in direction of arrow.

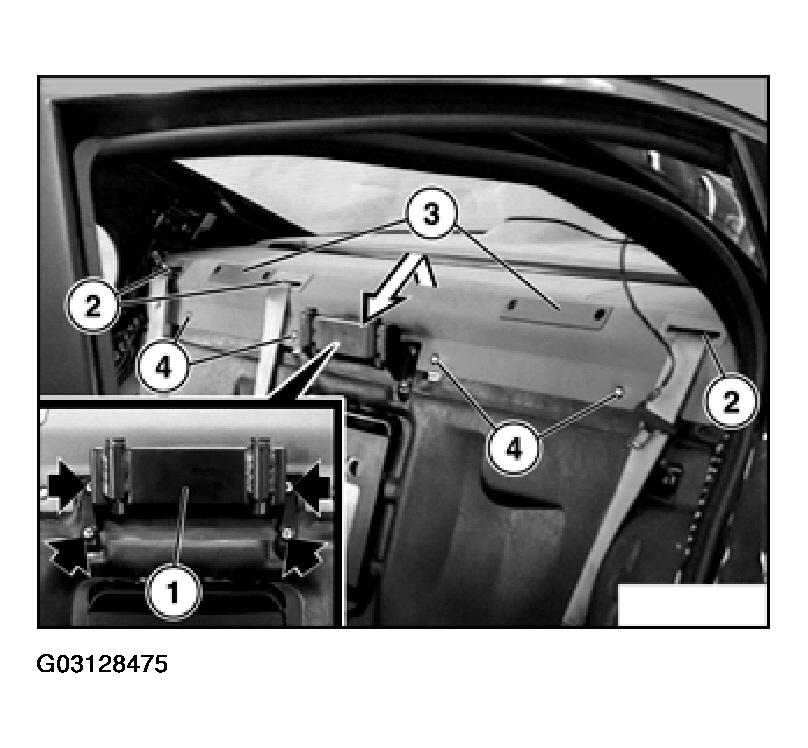

Fig 4: Releasing Expansion Rivets & Pulling Out Rear Shelf Towards Front

Courtesy of BMW OF NORTH AMERICA, INC.

Version without through-loading system:

Release screws and remove mounting (1) for head restraint center. Lever out belt finisher strips (2) and feed out with strap.

Replacement only:

Lever out trims (3) for head restraints and remove.

Release expansion rivets (4) and pull out rear shelf towards front.

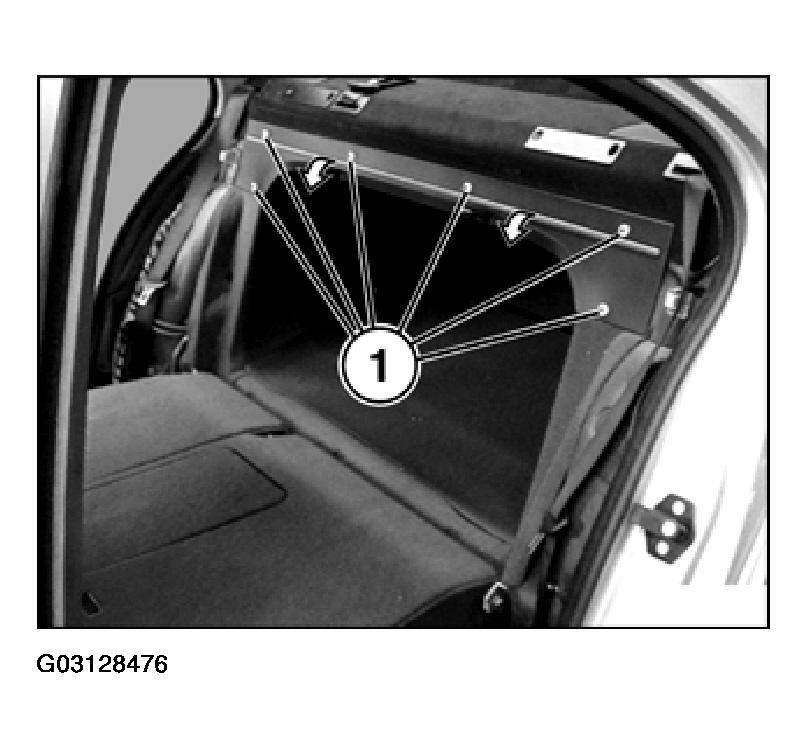

Fig 5: Releasing Expansion Rivets & Levering Out Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Version with through-loading system:

Release expansion rivets (1) and lever out trim.

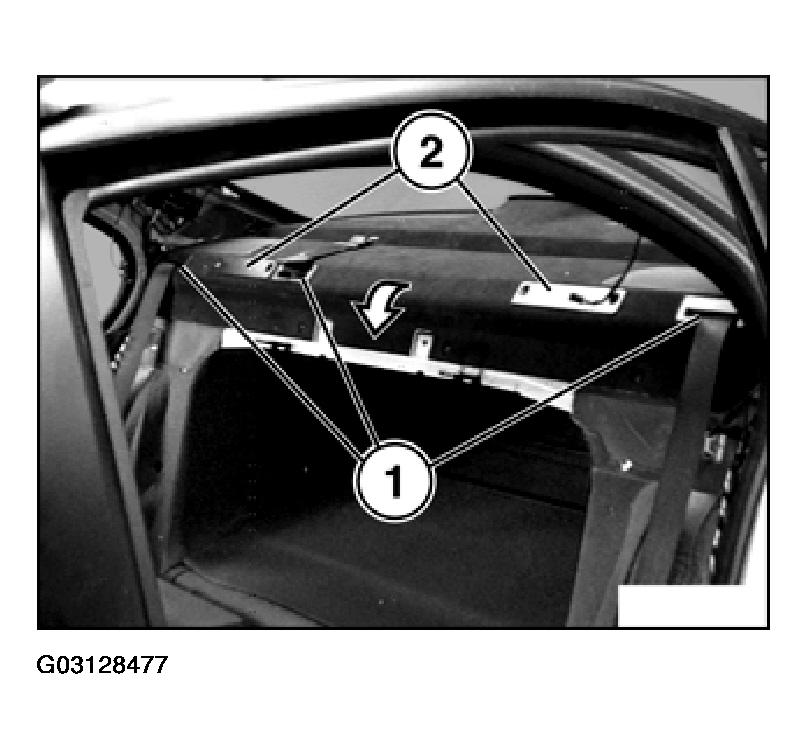

Fig 6: Removing Parcel Shelf Towards Front

Courtesy of BMW OF NORTH AMERICA, INC.

Version with through-loading system:

Lever out belt finisher strips (1) and feed out with strap.

Only replace:

Lever out trims (2) for head restraints and remove.

Remove parcel shelf towards front.

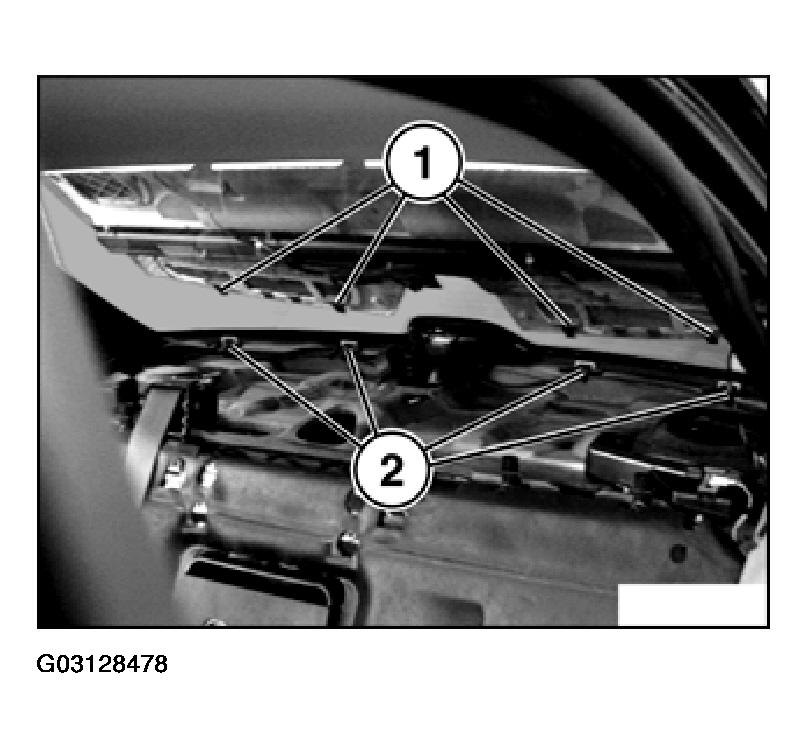

Fig 7: Pushing Pins Of Rear Shelf Into Guides

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Push pins (1) of rear shelf into guides (2).

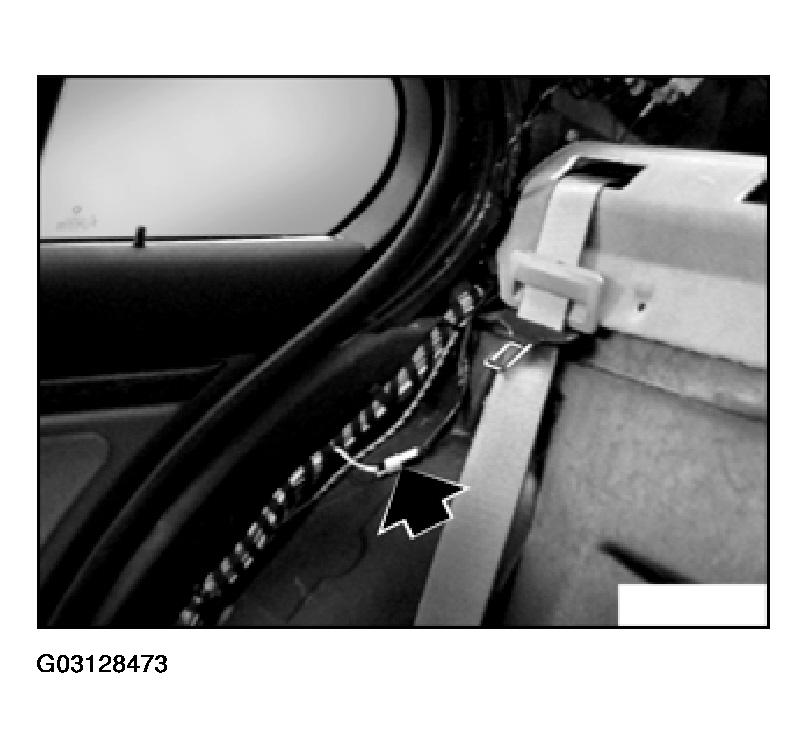

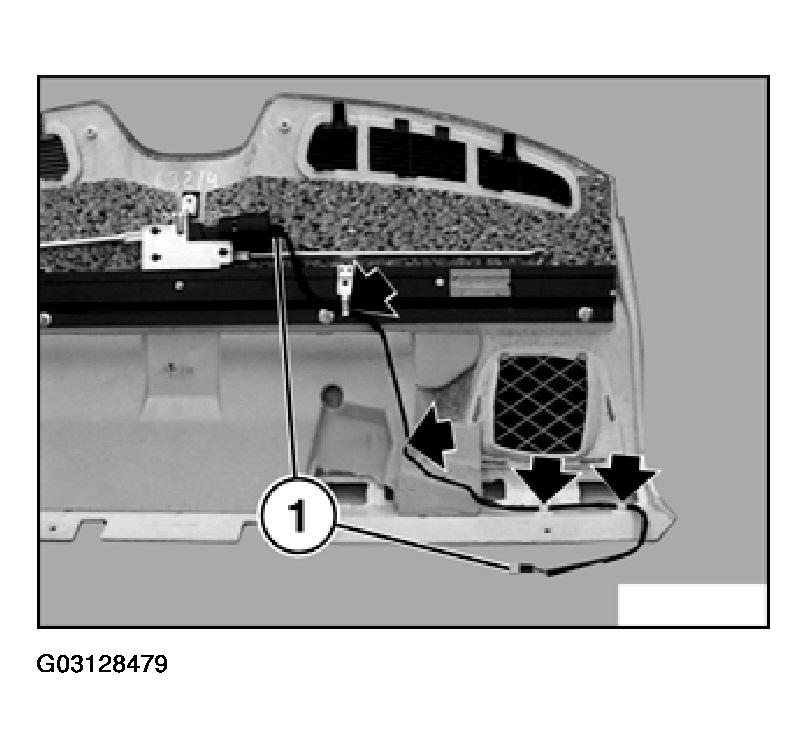

Fig 8: Exposing Cable

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, remove or replace rear window roller blind:

If necessary, expose cable (1).

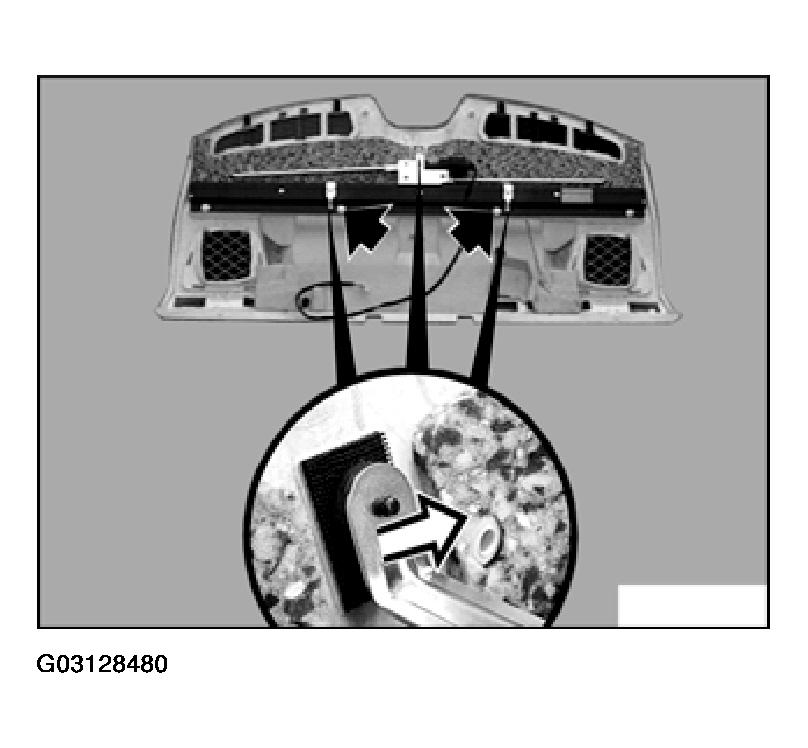

Fig 9: Removing Velcro-Type Fasteners

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, release nuts and remove Velcro-type fasteners.

Installation:

Tightening torque. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

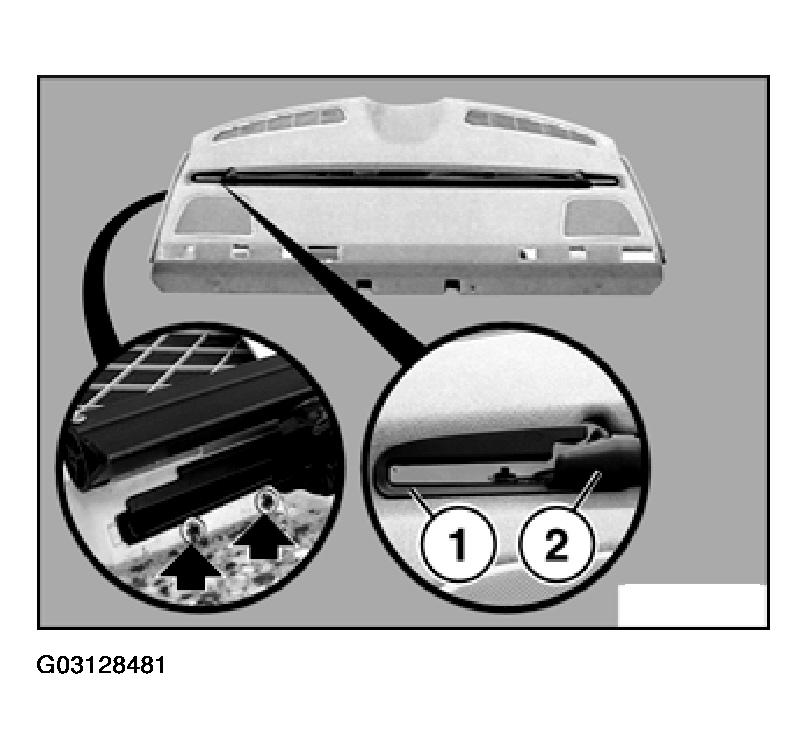

Fig 10: Feeding Out Rear Window Roller Blind

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, release toothed disks and lever out trims (1) on left/right. Feed out rear window roller blind (2) and remove.

Installation:

Check function.

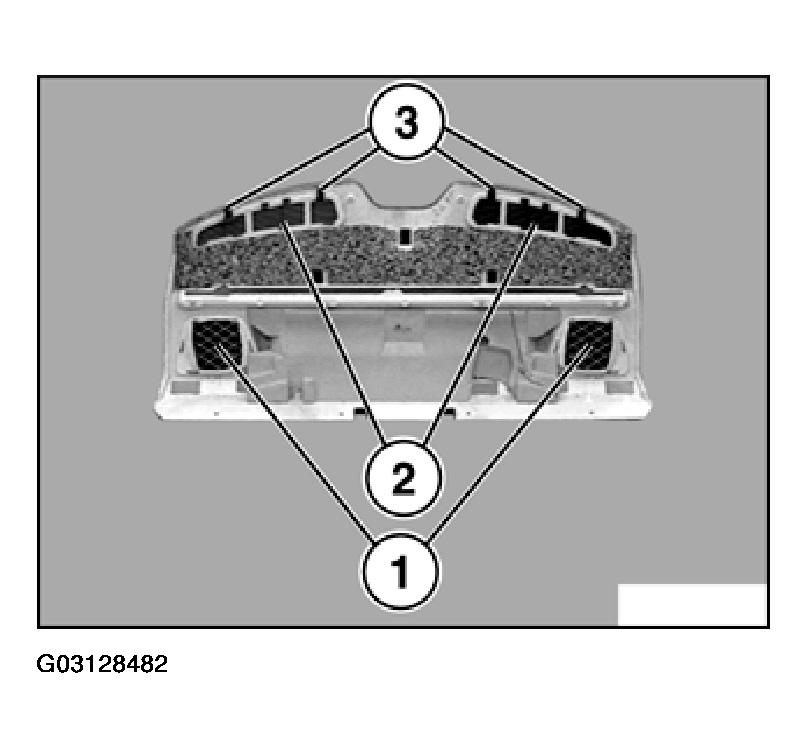

Fig 11: Removing Foam Support From Back Shelf

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

Remove speaker finishers (1).

Lift out catches (3) and remove both trim grills (2).

Remove foam support from back shelf.
