65 90 540 Removing and installing/replacing antenna for Global Positioning System (GPS)

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Remove trim for oddments tray. Refer to 51 46 000 REMOVING AND INSTALLING/REPLACING TRIM FOR ODDMENTS TRAY (BACK SHELF) .

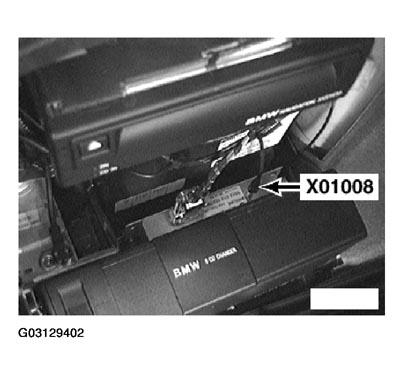

Open flap in rear left side panel. Remove rear left wheel arch trim. Remove connector X01008.

Fig 1: Removing Connector X01008

Courtesy of BMW OF NORTH AMERICA, INC.

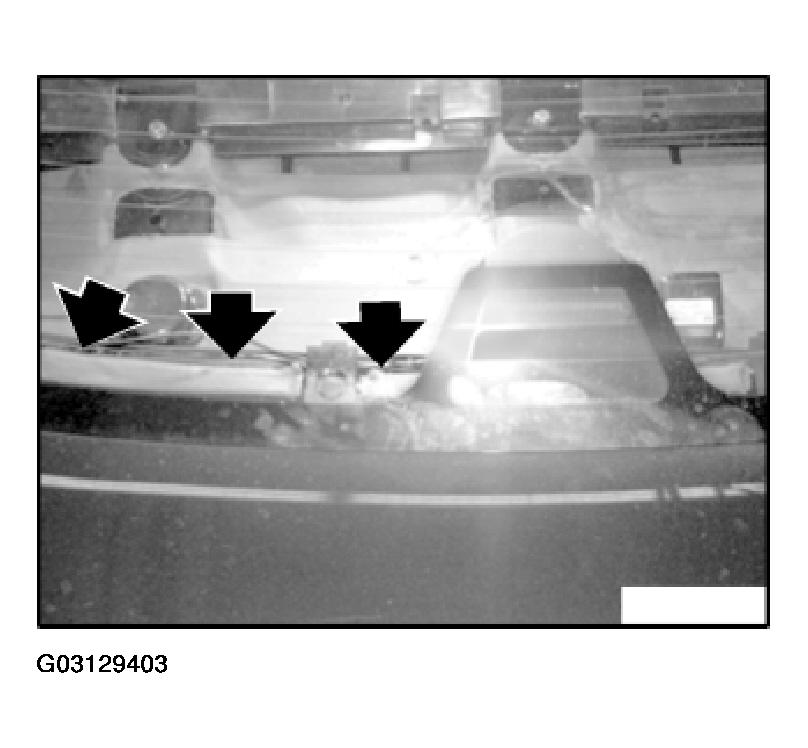

Route line from trunk out to oddments tray.

Fig 2: Routing Line From Trunk Out To Oddments Tray

Courtesy of BMW OF NORTH AMERICA, INC.

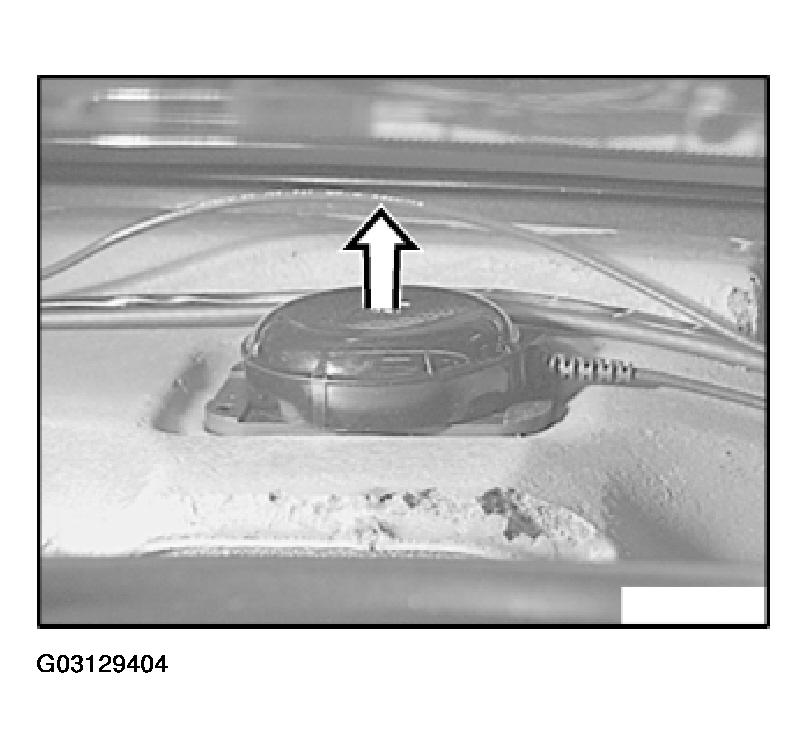

Pull antenna upwards to detach.

Fig 3: Detaching Antenna

Courtesy of BMW OF NORTH AMERICA, INC.
