64 11 845 Replacing servodrive of defrosting flaps (automatic A/C)

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Remove right glovebox. See 51 16 360 REMOVING AND INSTALLING RIGHT GLOVE BOX

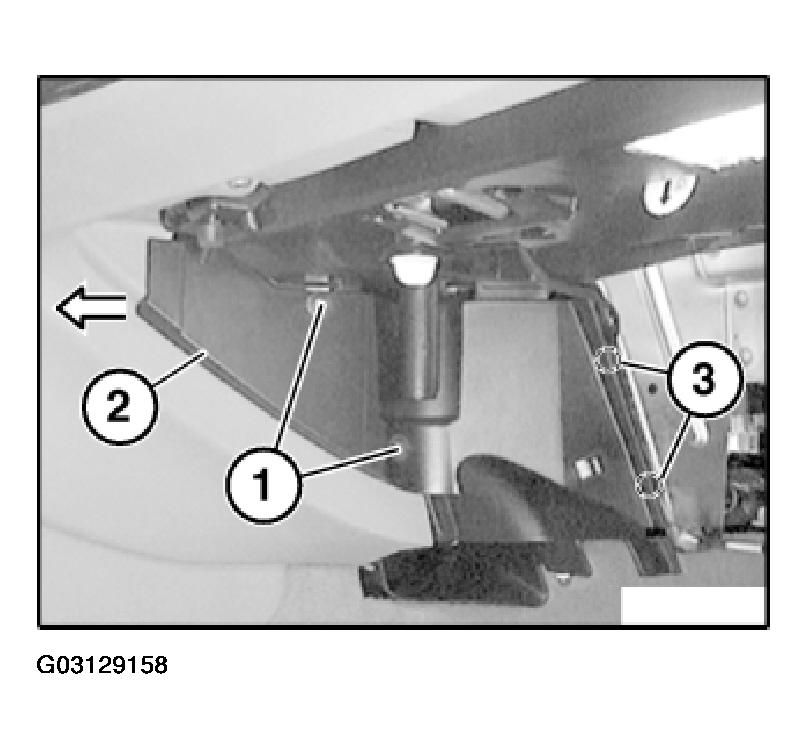

Release screws (1).

Pull cover on glovebox on left (2) in direction of arrow out of guides (3) and remove.

Fig 1: Removing Left Glovebox Cover (Automatic A/C)

Courtesy of BMW OF NORTH AMERICA, INC.

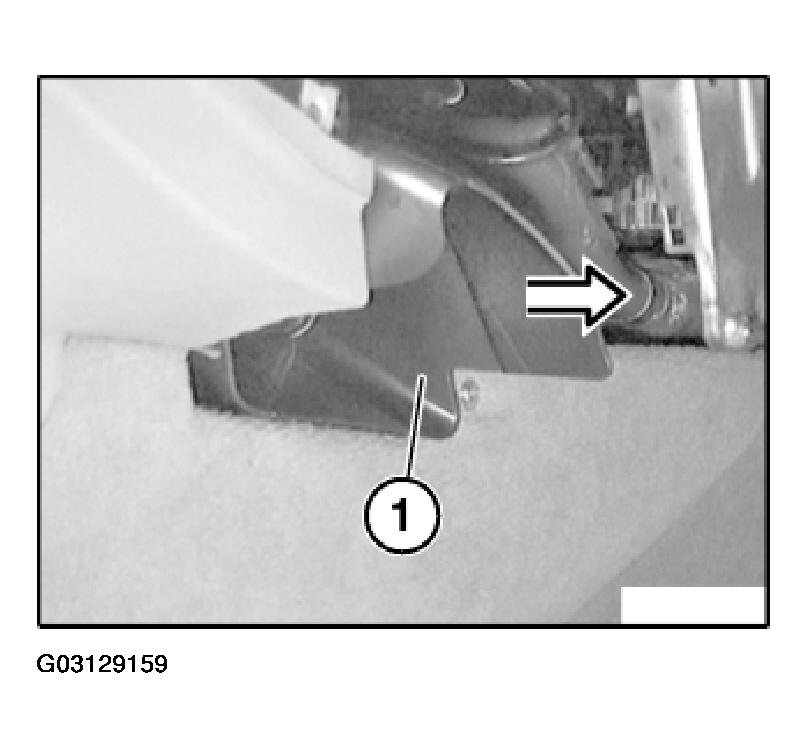

Unclip air duct for right footwell (1) and pull out in direction of arrow.

Fig 2: Removing Right Footwell Air Duct

Courtesy of BMW OF NORTH AMERICA, INC.

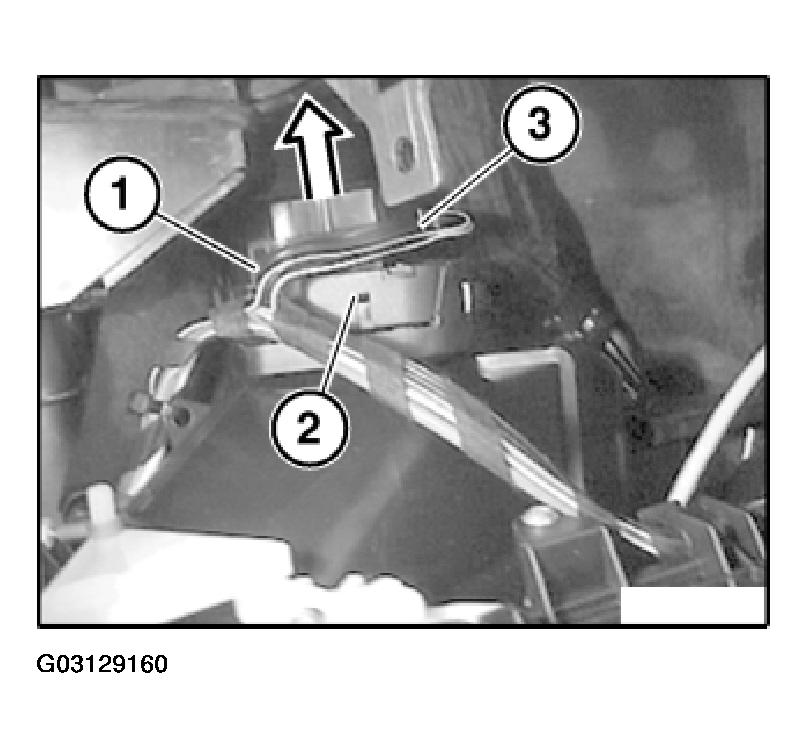

Unclip lock (1) and pull out servodrive (2) in direction of arrow.

Disconnect plug connection (3).

Fig 3: Removing Servodrive (Automatic A/C)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, align shaft of defrosting flaps to position of servodrive.

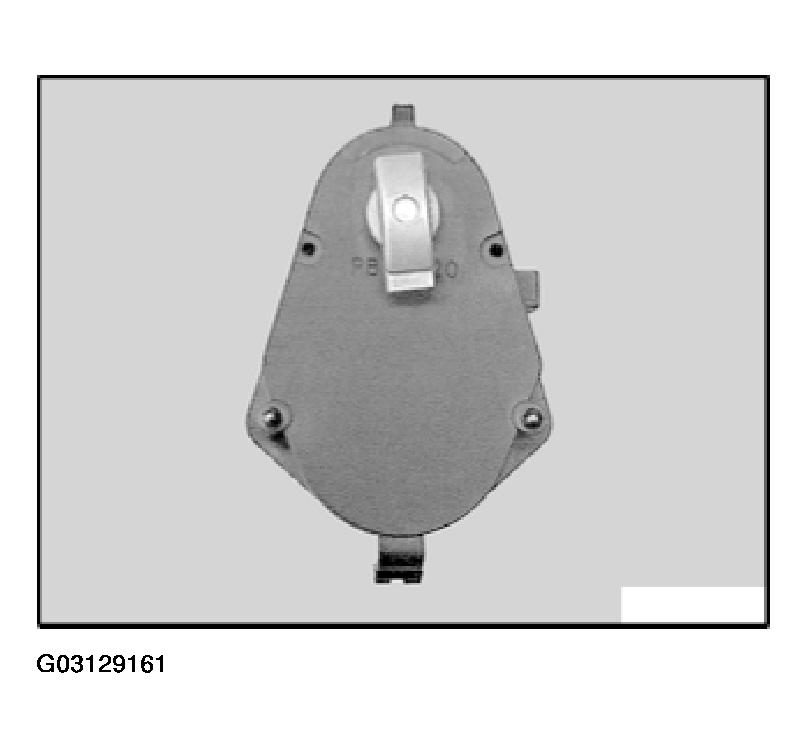

Fig 4: Identifying Servodrive (Automatic A/C)

Courtesy of BMW OF NORTH AMERICA, INC.
