64 11 839 Replacing servodrive of footwell flap (automatic A/C)

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Remove right glovebox. See 51 16 360 REMOVING AND INSTALLING RIGHT GLOVE BOX

Release screws (1).

Pull cover on glovebox on left (2) in direction of arrow out of guides (3) and remove.

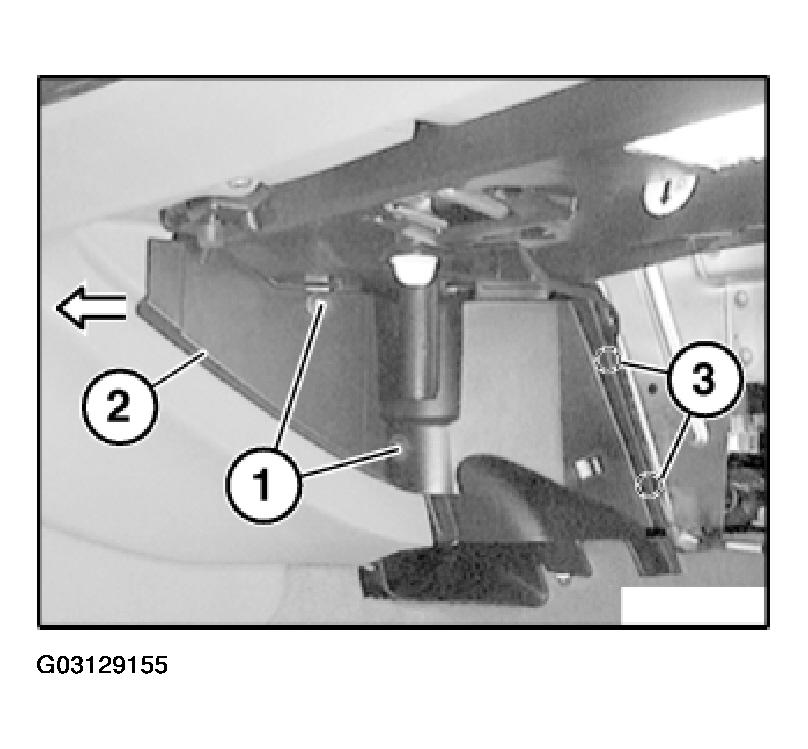

Fig 1: Removing Left Glovebox Cover (Automatic A/C)

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip lock (1) and pull out servodrive (2) in direction of arrow.

Disconnect plug connection (3).

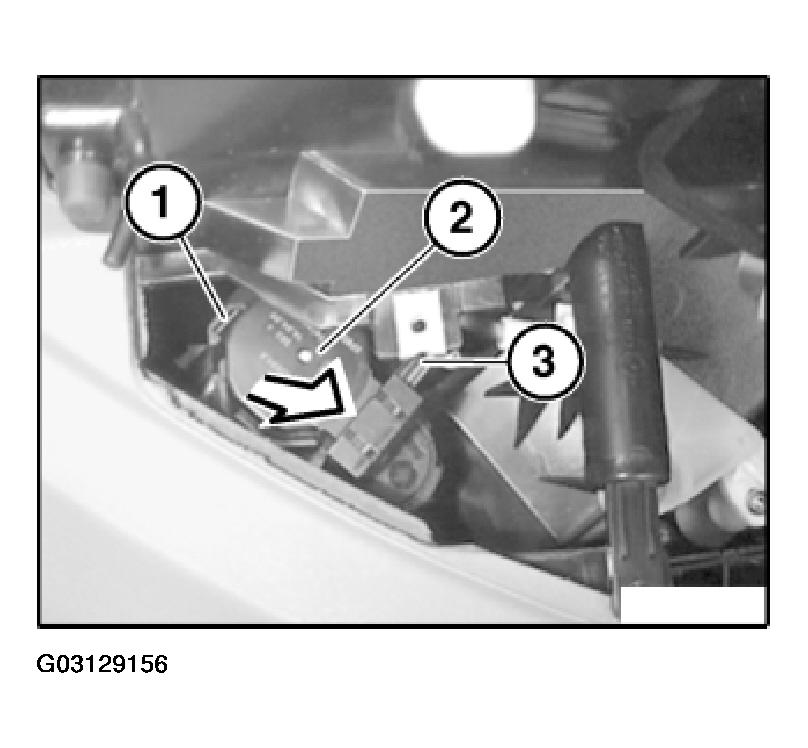

Fig 2: Removing Servodrive (Automatic A/C)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, align shaft of footwell flap to position of servodrive.

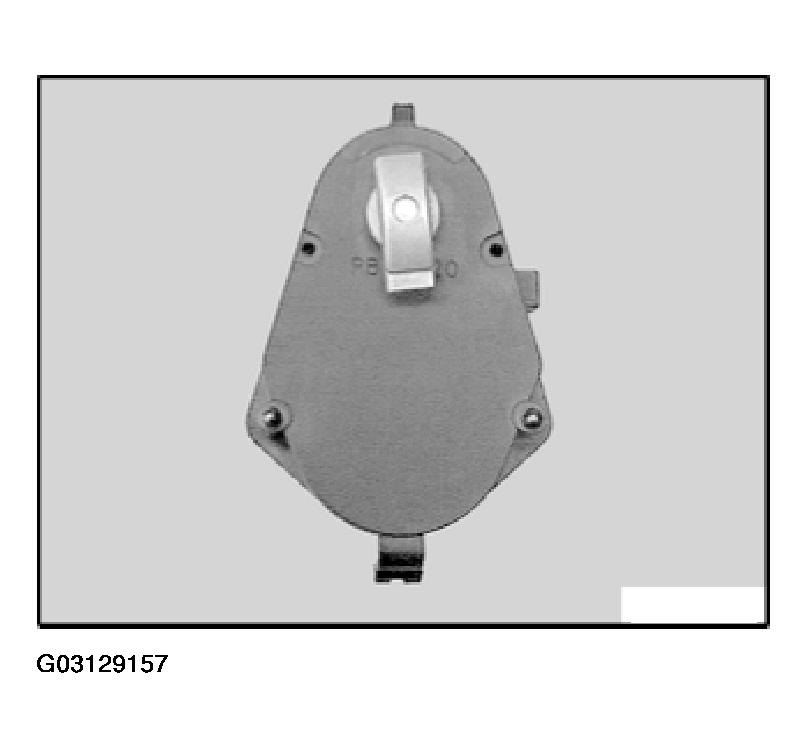

Fig 3: Identifying Servodrive (Automatic A/C)

Courtesy of BMW OF NORTH AMERICA, INC.
