64 11 820 Replacing servodrive of fresh air flaps (automatic A/C, up to 03/2000)

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Remove trim for pedal assembly. See 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY

Disconnect plug connection (1).

Unclip lock (2) and pull out servodrive (3) in direction of arrow.

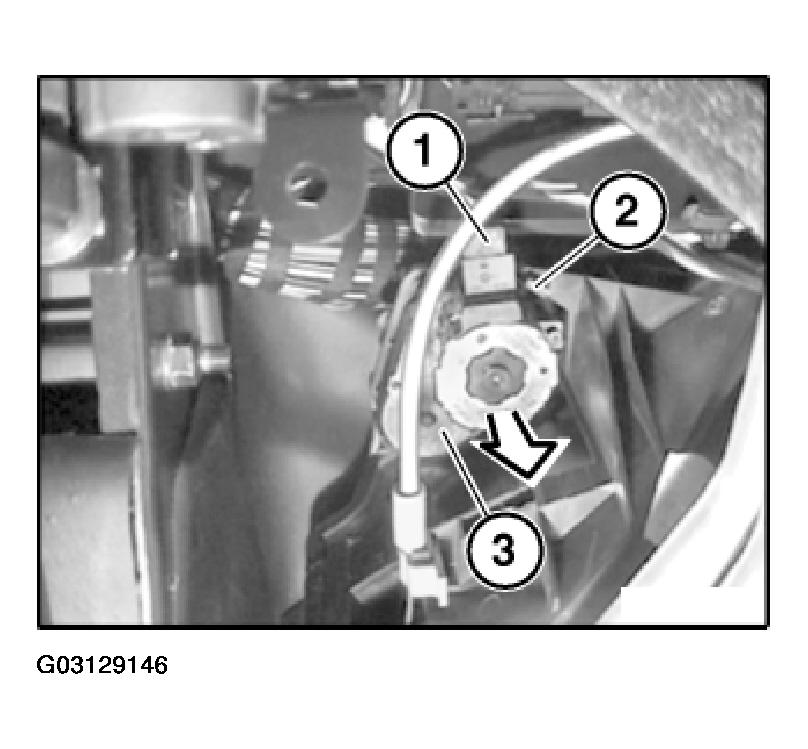

Fig 1: Removing Servodrive

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, align shaft of fresh air flaps to position of servodrive.

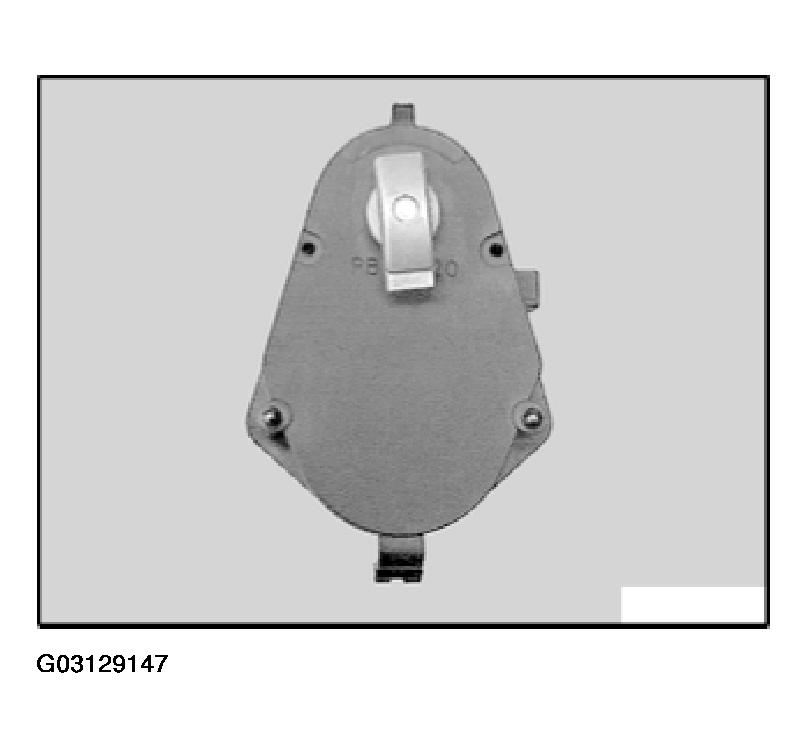

Fig 2: Identifying Servodrive

Courtesy of BMW OF NORTH AMERICA, INC.
