51 45 185 Removing and installing/replacing trim for pedal assembly
WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.
Remove side carpet on left side of center console.

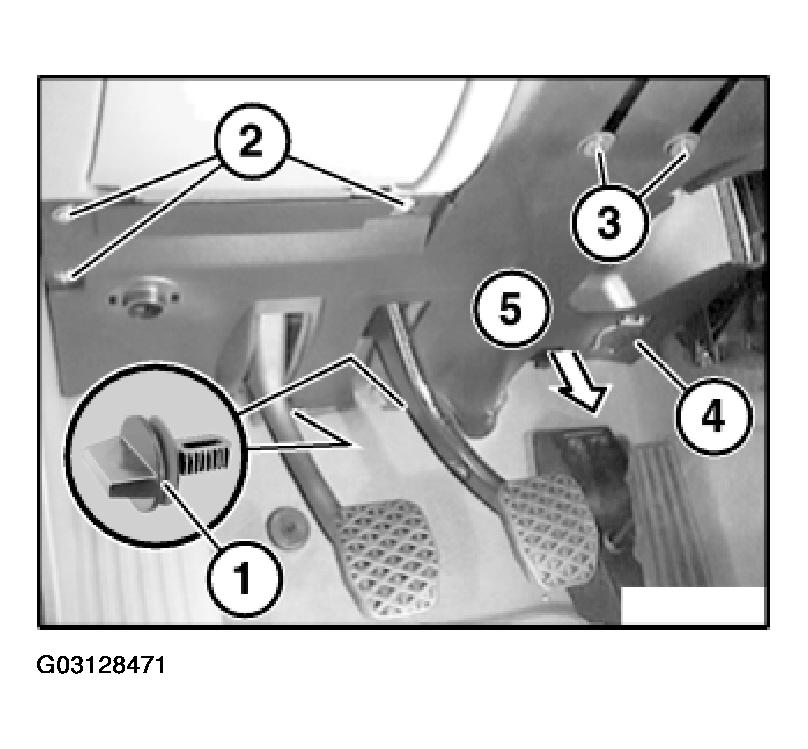

Turn toggle (1) and remove.
Release screws (2) and (3)
Lower trim for pedal assembly (5) a little and disconnect plug connections from gong (4).
Remove trim for pedal assembly (5) towards bottom.
