64 11 210 Removing and installing / replacing heater blower.

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Removing upper section of instrument panel trim, refer to 51 45 050 REMOVING AND INSTALLING TRIM FOR UPPER SECTION OF INSTRUMENT PANEL .

Remove foam rubber mat.

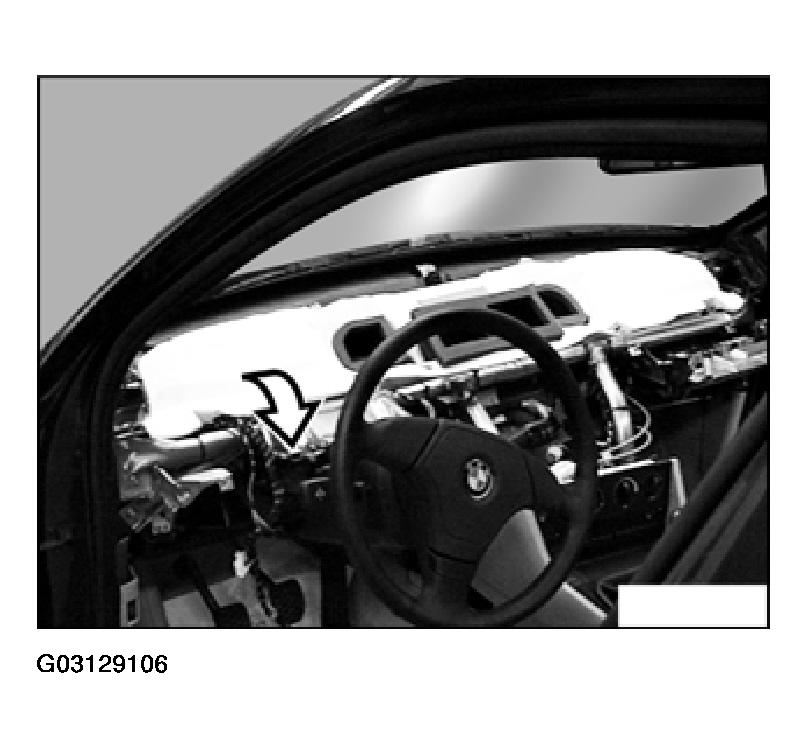

Fig 1: Removing Foam Rubber Mat

G03129106

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten clips and pry out ventilation duct.

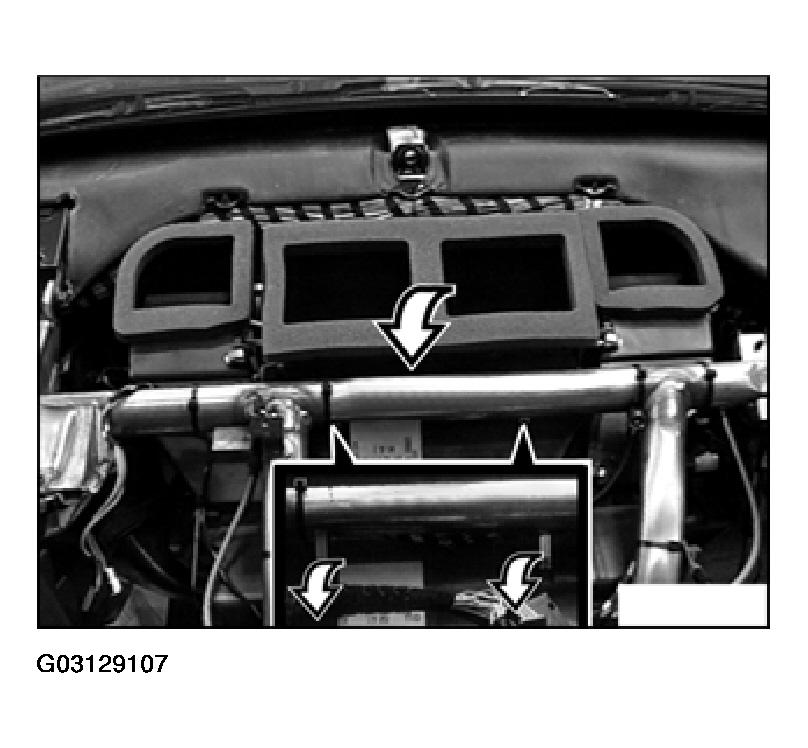

Fig 2: Removing Ventilation Duct

G03129107

Courtesy of BMW OF NORTH AMERICA, INC.

Slide connecting rail to one side.

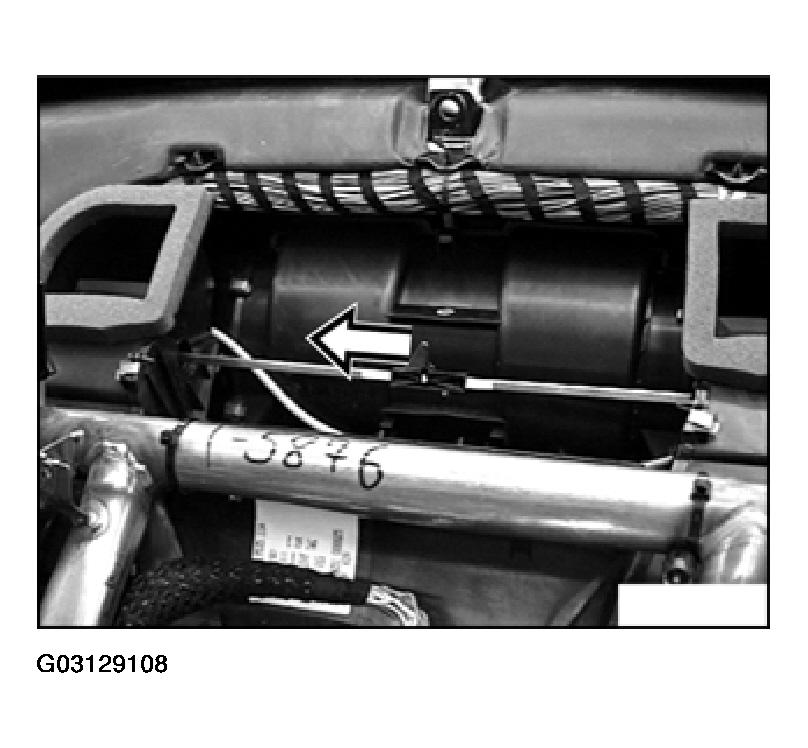

Fig 3: Sliding Connecting Rail To One Side

G03129108

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Slide connecting rail over both linkages until the ends of both linkages are visible in the bore (1).

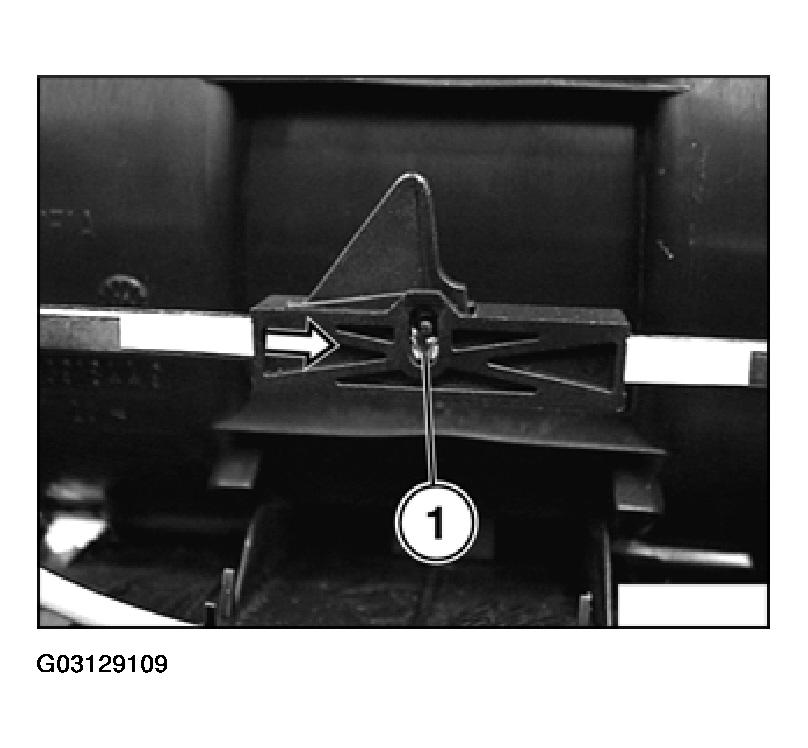

Fig 4: Locating Linkages Ends In Bore

G03129109

Courtesy of BMW OF NORTH AMERICA, INC.

Pull both linkages out of the flaps.

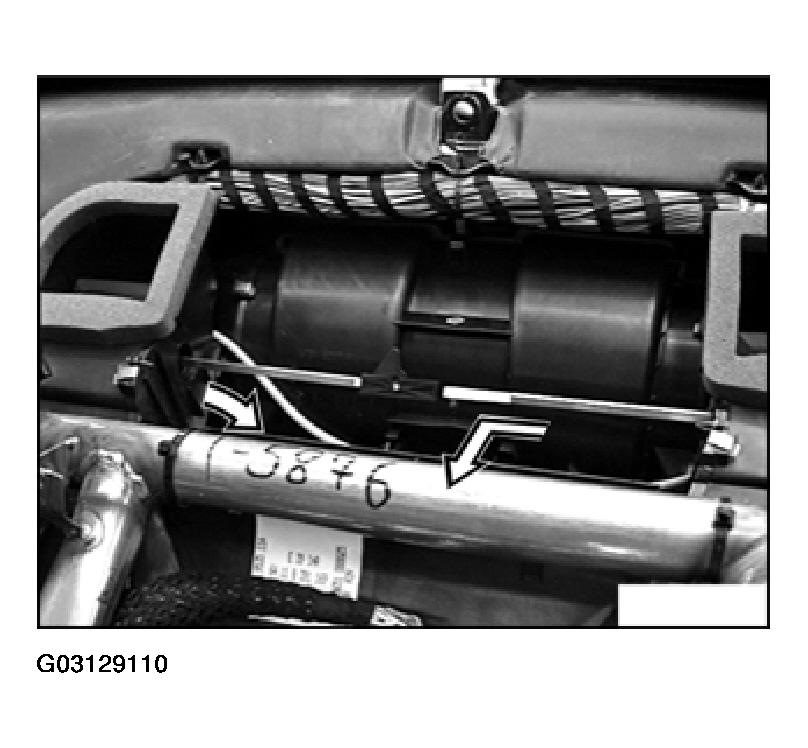

Fig 5: Removing Both Linkages From Flaps

G03129110

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten clips and remove blower cover from lugs (1).

Installation:

First insert lugs in the cover, then attach the clips.

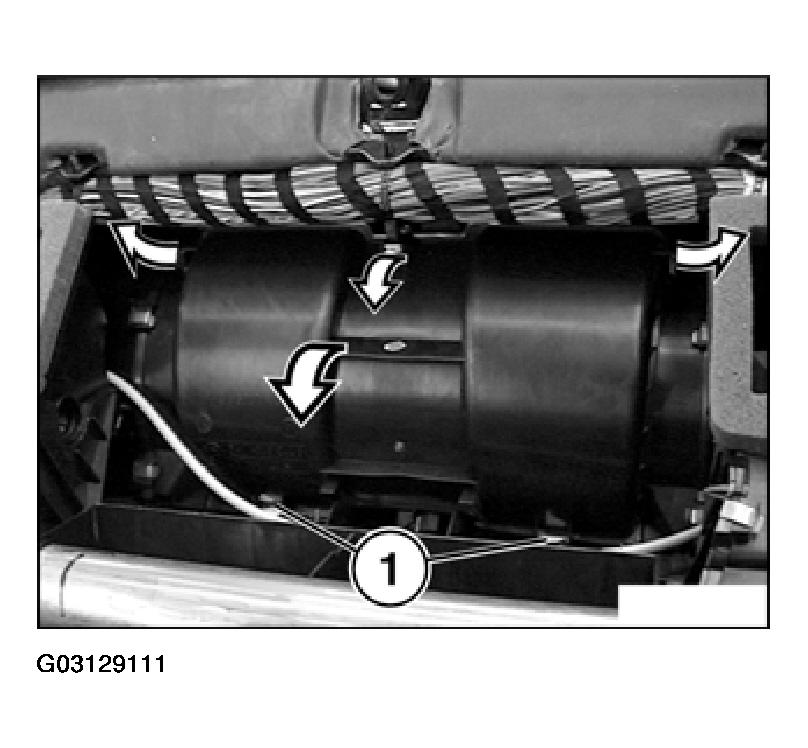

Fig 6: Removing Blower Cover From Lugs

G03129111

Courtesy of BMW OF NORTH AMERICA, INC.

Remove connector, unfasten screws and remove blower.

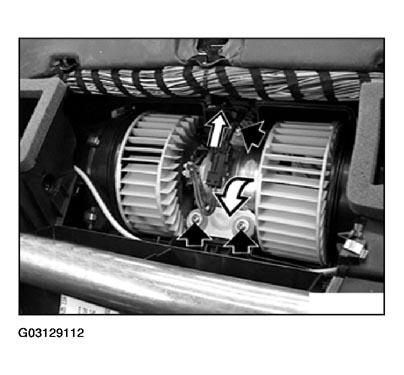

Fig 7: Removing Connector, Loosening Screws & Removing Blower

G03129112

Courtesy of BMW OF NORTH AMERICA, INC.
