51 45 050 Removing and installing trim for upper section of instrument panel

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove both panels for front roof pillar.
Remove trim for instrument panel (lower section).
Remove complete instrument carrier.
Remove passenger airbag.

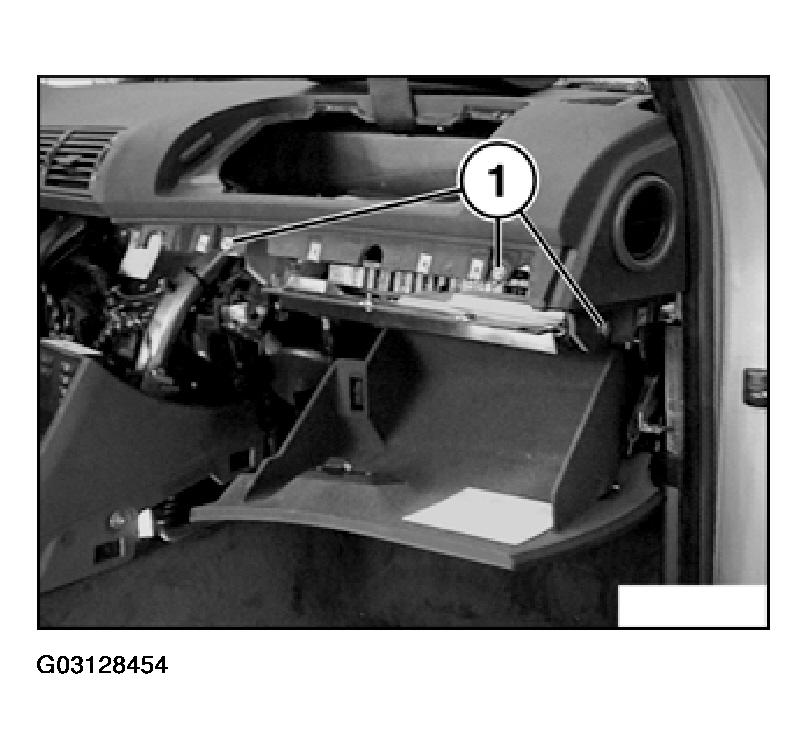

Fig 1: Releasing Screws

G03128454

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

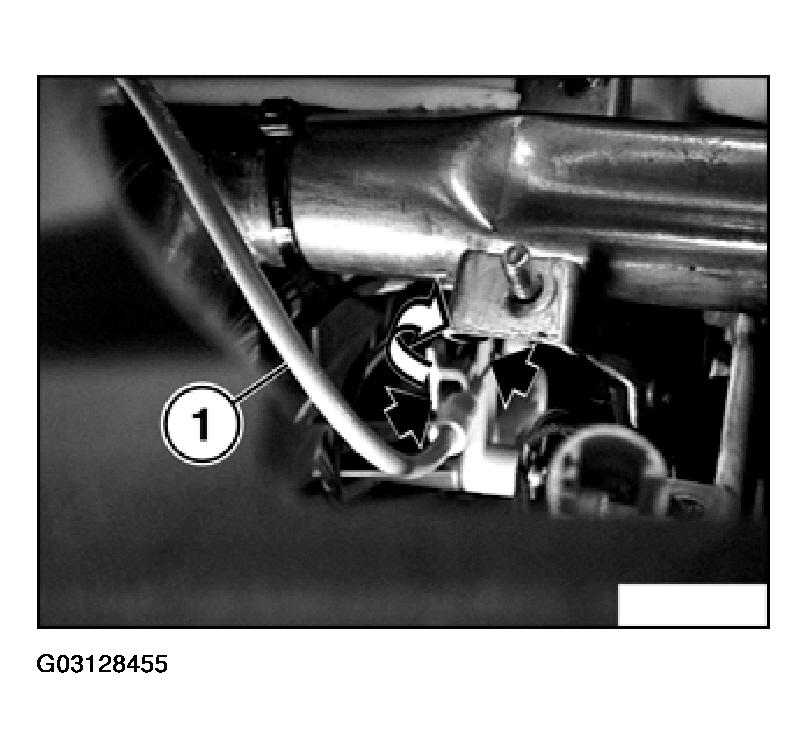

Fig 2: Disconnecting Bowden Cable For Temperature-Controlled Ventilation

G03128455

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect Bowden cable (1) for temperature-controlled ventilation.

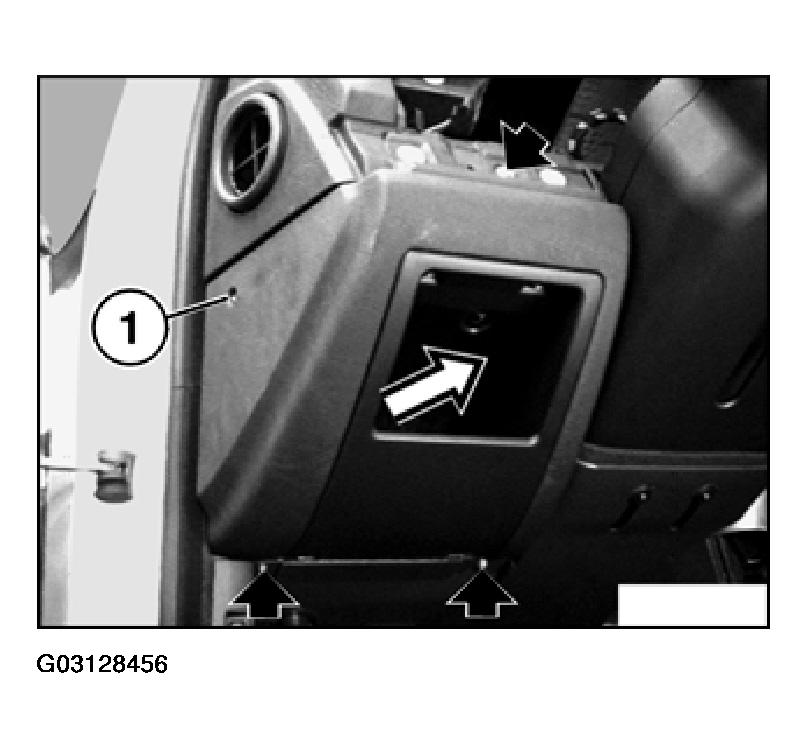

Fig 3: Lifting Off Cap & Unfastening Screw

G03128456

Courtesy of BMW OF NORTH AMERICA, INC.

Lift off cap (1) and unfasten screw. Unfasten screws and remove left oddments tray.

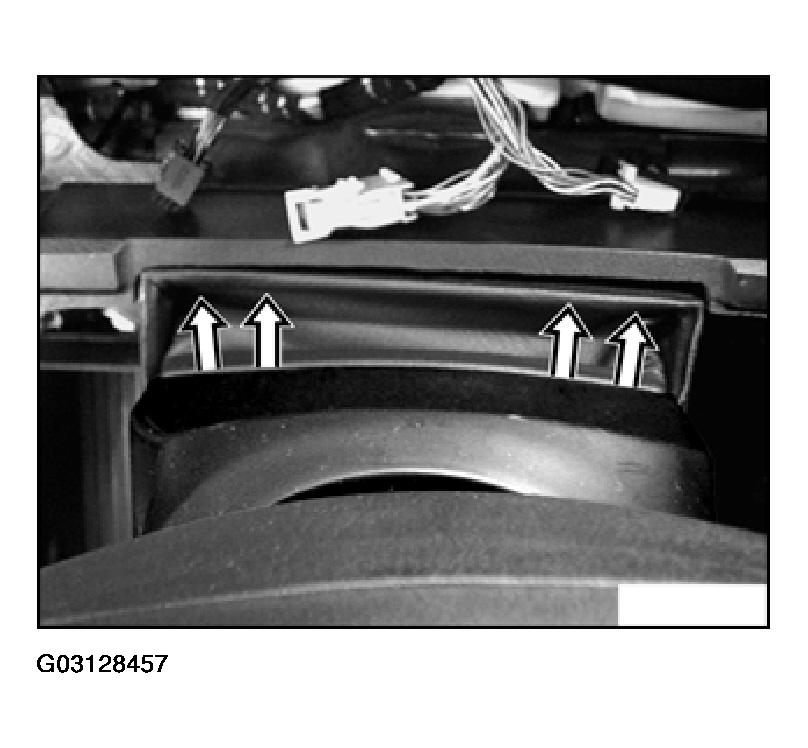

Fig 4: Unclipping Rubber Gaiter For Steering Column

G03128457

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip rubber gaiter for steering column.

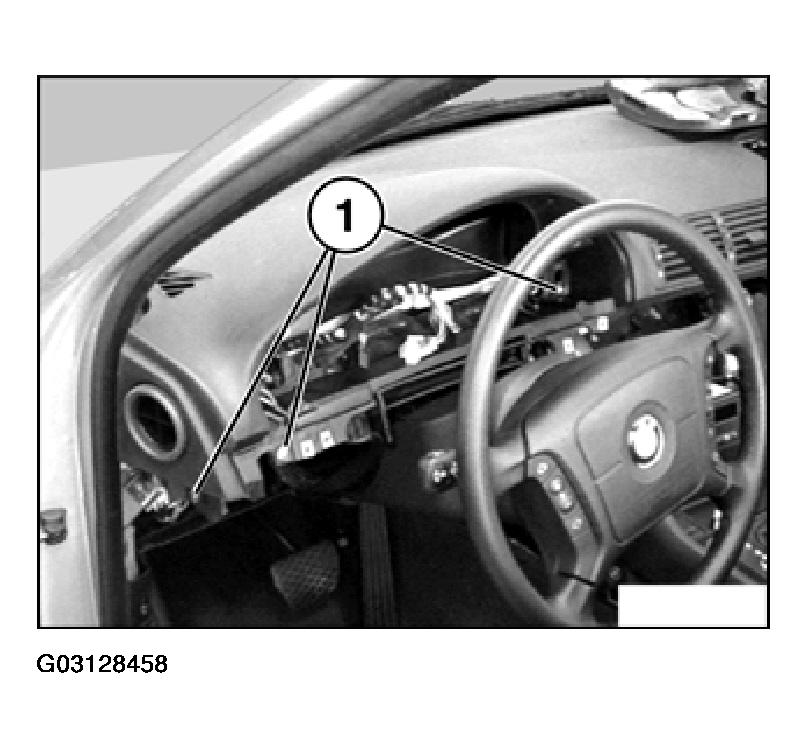

Fig 5: Releasing Screws

G03128458

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

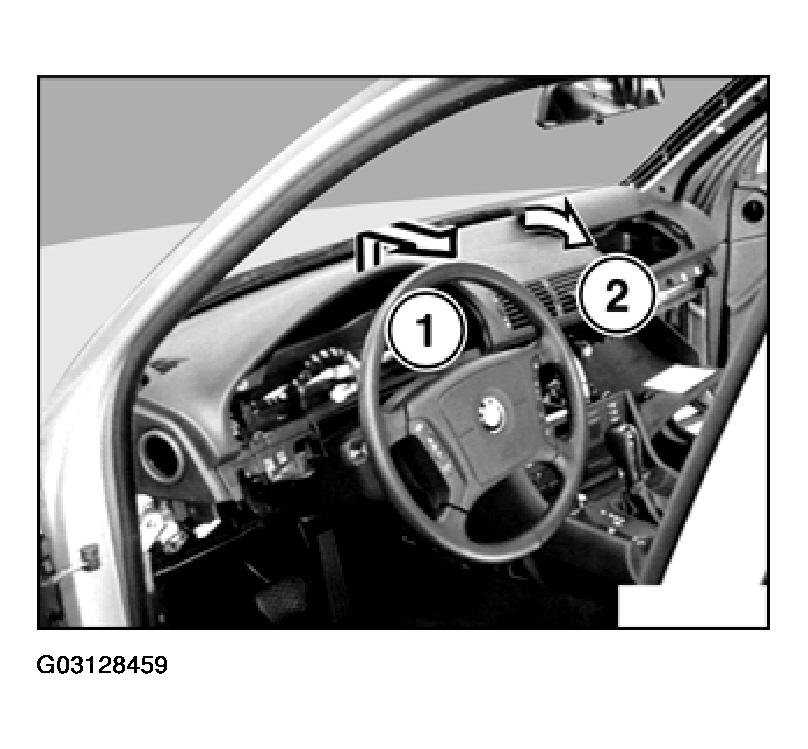

Fig 6: Lifting Trim For Upper Section Of Instrument Panel Upwards

G03128459

Courtesy of BMW OF NORTH AMERICA, INC.

Lift trim for upper section of instrument panel upwards and remove through passenger door.

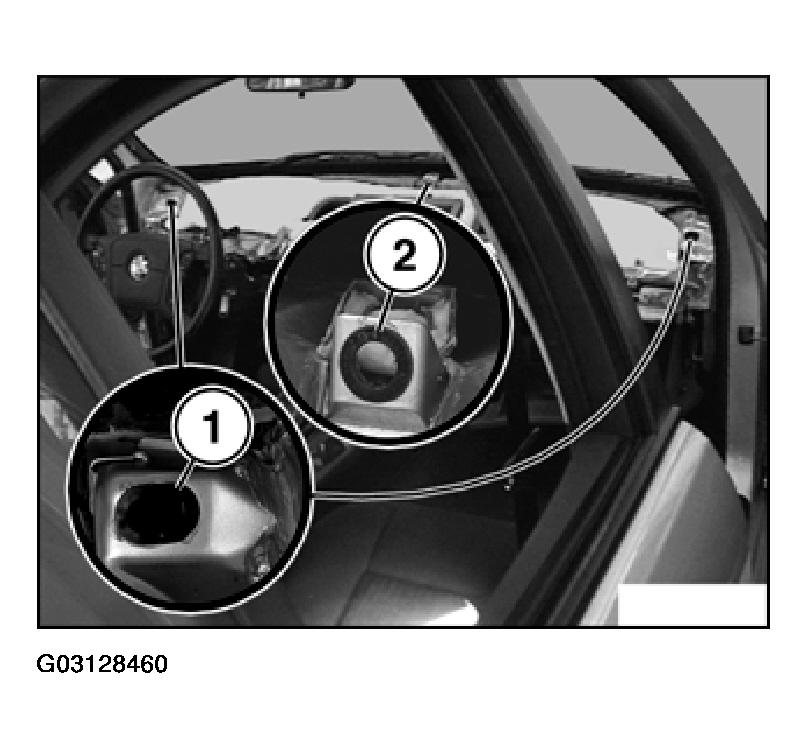

Fig 7: Installing Left/right plastic guides

G03128460

Courtesy of BMW OF NORTH AMERICA, INC.

Version up to 09/97:

Installation:

Left/right plastic guides (1) and center (2) must be installed.

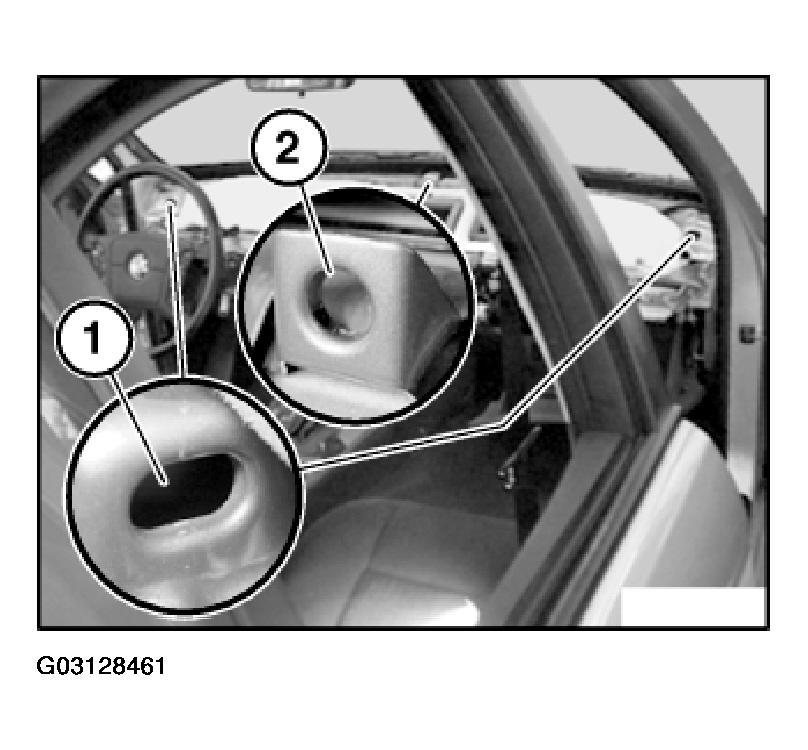

Fig 8: Identifying Plastic Guides

G03128461

Courtesy of BMW OF NORTH AMERICA, INC.

Version from 09/97:

NOTE: Plastic guides are not installed with newer mountings (1 and 2).
