64 12 770 Removing and installing/replacing changeover valve for latent heat accumulator

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Remove left front wheel and left wheel arch trim. See 51 71 040 REMOVING AND INSTALLING/REPLACING FRONT LEFT OR RIGHT WHEEL ARCH COVER

If necessary, remove plastic cover from valve unit

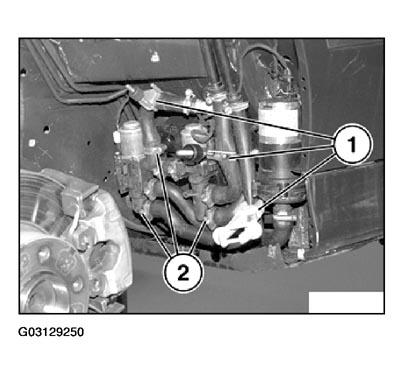

Disconnect hoses (1), unfasten hose clip (2) and pull off hoses.

Fig 1: Removing Hoses

Courtesy of BMW OF NORTH AMERICA, INC.

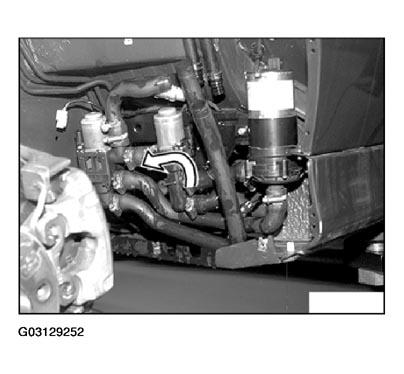

Pull off connectors.

Fig 2: Removing Connectors

Courtesy of BMW OF NORTH AMERICA, INC.

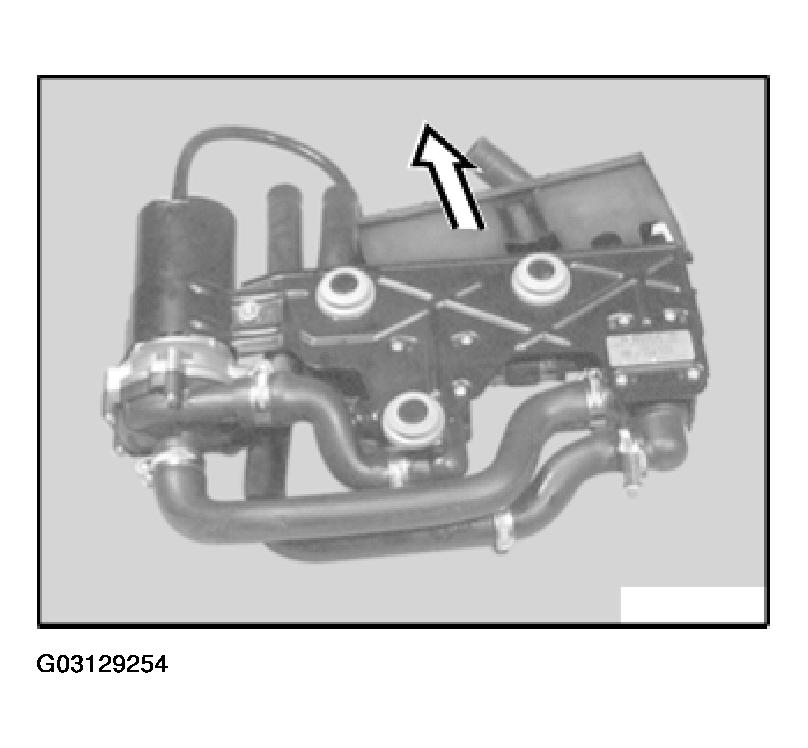

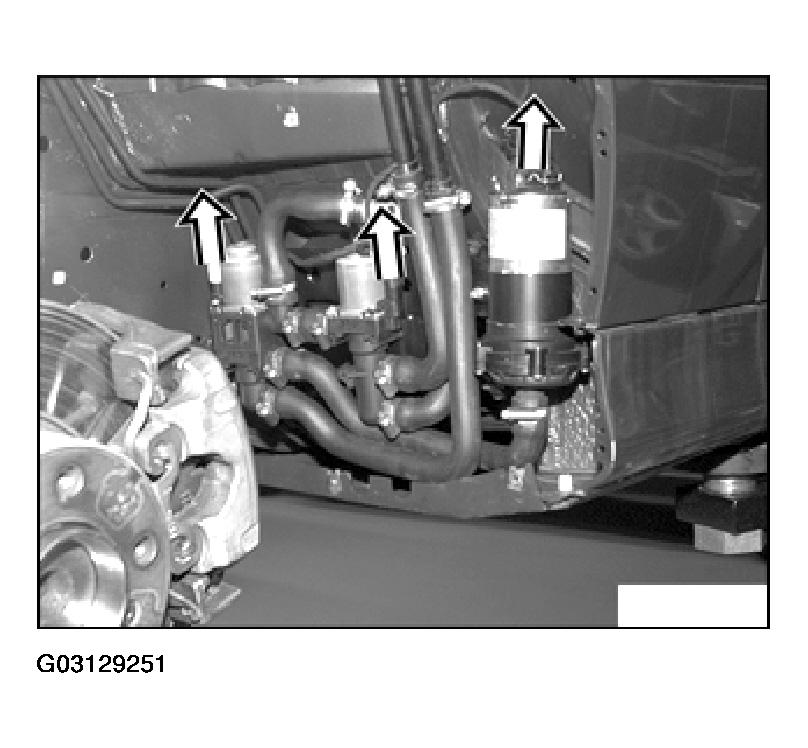

Slide valve unit upwards and lift forwards to remove.

Fig 3: Removing Valve Unit

Courtesy of BMW OF NORTH AMERICA, INC.

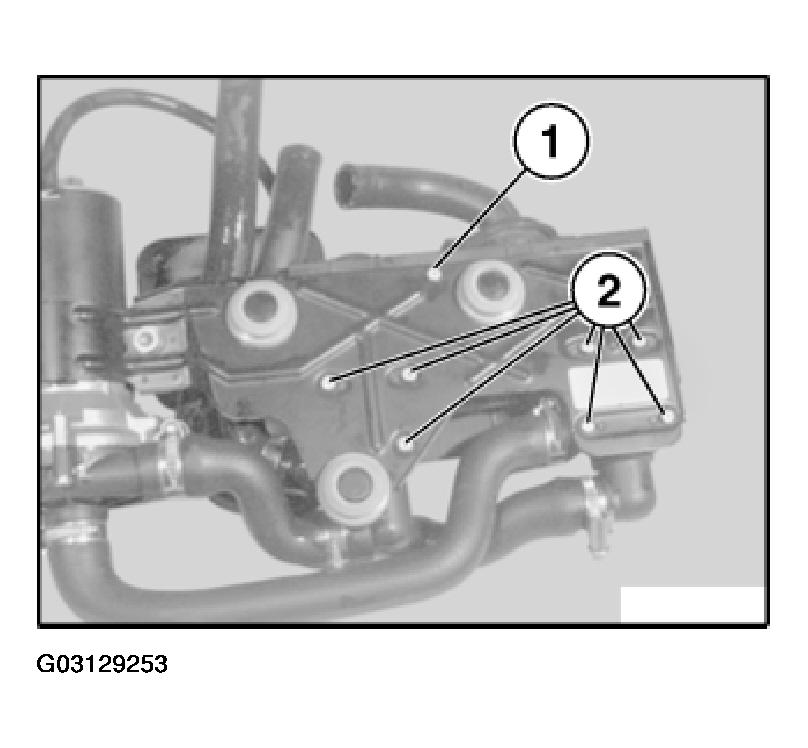

Unscrew bolt (1). Loosen screws (2).

Fig 4: Loosening Bolt & Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Lift valve cover upwards to remove.

Fig 5: Removing Valve Cover

Courtesy of BMW OF NORTH AMERICA, INC.

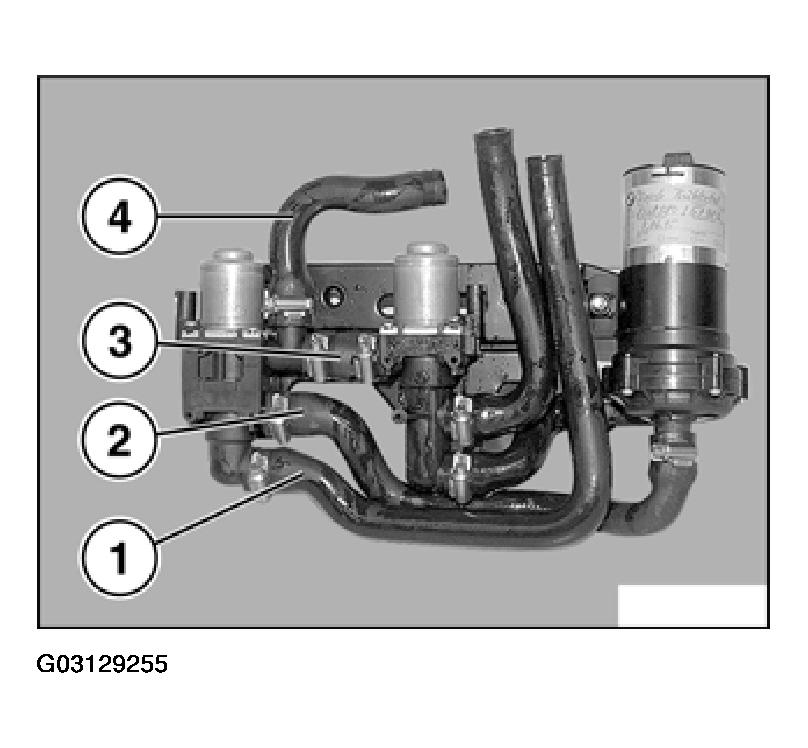

Unfasten hose clip and pull off hoses (1, 2, and 4).

Fig 6: Removing Hoses

Courtesy of BMW OF NORTH AMERICA, INC.

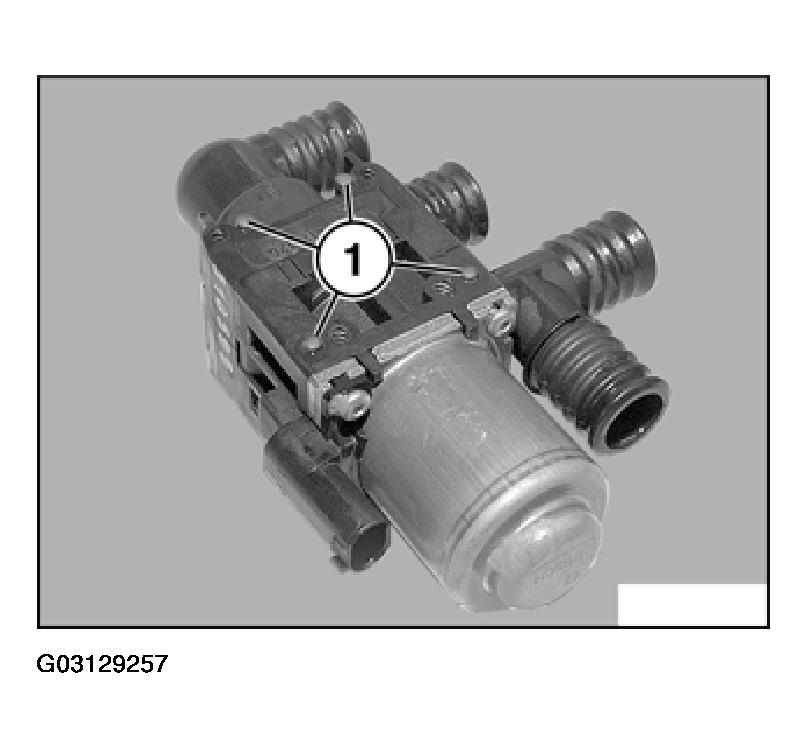

Unfasten screws and pull changeover valve sideways out of hose (3).

Fig 7: Removing Changeover Valve

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

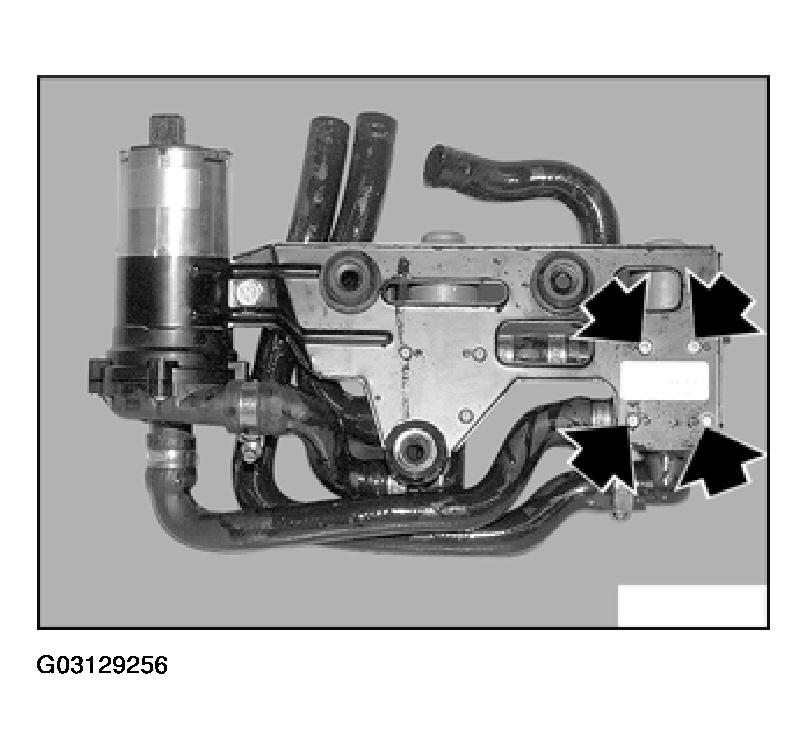

Insert dowel pins (1) into bore of bracket and screw down valve.

Installation:

After completion of repair work, bleed the latent heat accumulator,

refer to 64 12 VENTING LATENT HEAT ACCUMULATOR (LWS)

Fig 8: Inserting Dowel Pins In Bracket Bore

Courtesy of BMW OF NORTH AMERICA, INC.
